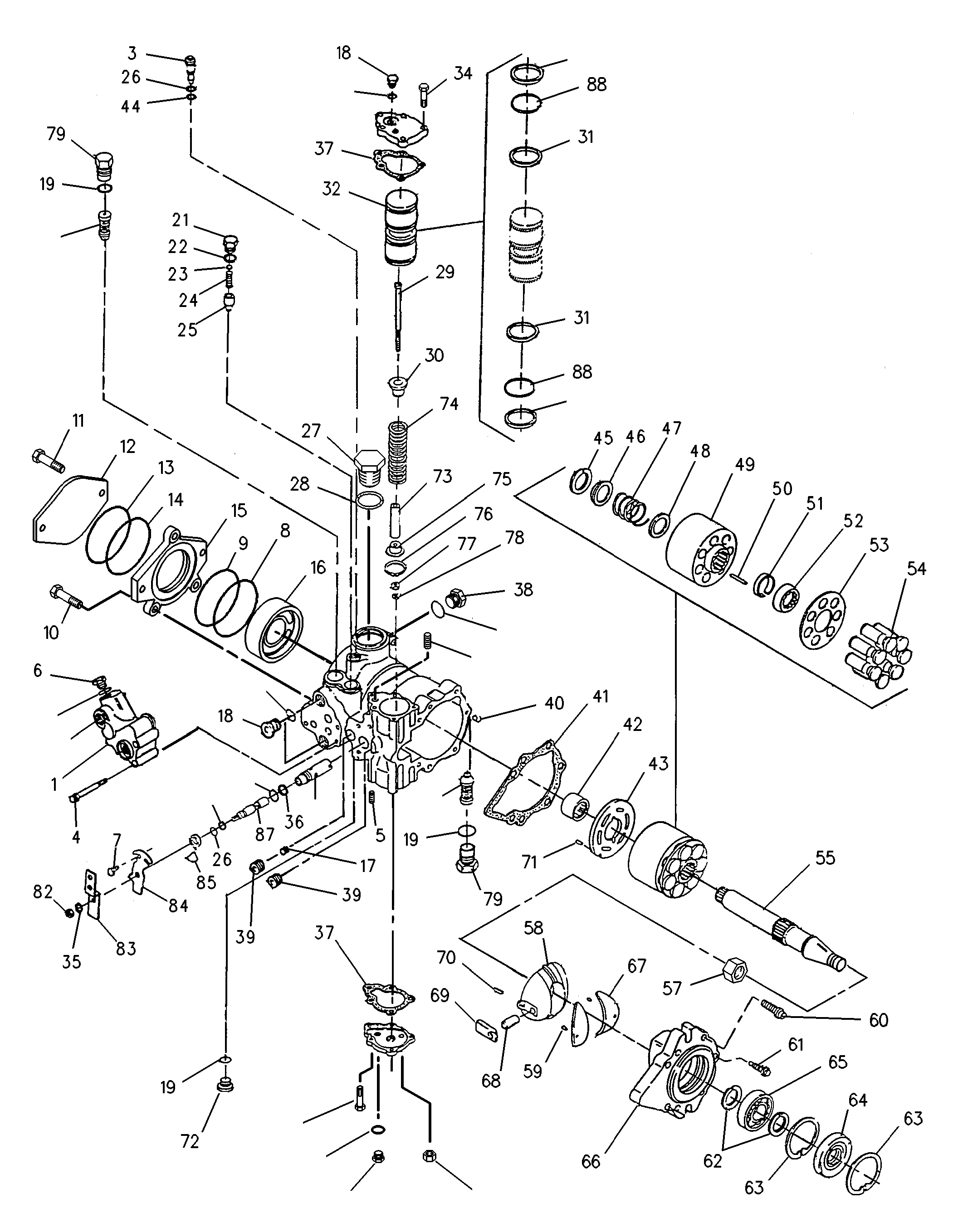

System And Components
112-9560 PUMP GP-HYDRAULICS/N 7GG434-444; 7GG452-452; 7GG457-479; 7GG481-497; 7GG500-UP; 5AJ131-UP
Group No: 112-9560
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1G9411 | 1 ADAPTER | 1 | |
| 7X5460 | 2 SLEEVE | 1 | |
| 7X9365 | 3 VALVE-BYPASS | 1 | |
| 8M8162 | 4 BOLT-12 POINT HEAD (5/16-18X1.5-IN) | 3 | |
| 7X9293 | 5 PLUG | 2 | |
| 9S4190 | 6 PLUG-O-RING (7/8-14-THD) | 2 | |
| 0822753 | 7 BOLT (1/4-20X0.62-IN) | 1 | |
| 1G5977 | 8 SEAL-O-RING | 1 | |
| 7X5856 | 9 RING | 1 | |
| 0S1594 | 10 BOLT (3/8-16X1-IN) | 3 | |
| 0S1595 | 11 BOLT (1/2-13X1.25-IN) | 2 | |
| 7X9294 | 12 COVER | 1 | |
| 7X9372 | 13 SEAL-O-RING | 1 | |
| 7X9373 | 14 SEAL-O-RING | 1 | |
| 7X9368 | 15 ADAPTER | 1 | |
| 7X5858 | 16 COVER | 1 | |
| 8T6759 | 17 PLUG-PIPE | 1 | |
| 9S4191 | 18 PLUG (9/16-18-THD)(9/16-18THD) | 4 | |
| 3D2824 | 19 SEAL-O-RING | 4 | |
| 7X5453 | 20 RING-BACKUP | 1 | |
| 7X5462 | 21 PLUG | 1 | |
| 2M9780 | 22 SEAL-O-RING | 3 | |
| 0773775 | 23 SHIM | 1 | |
| 0304008 | 24 SPRING | 1 | |
| 7R4913 | 25 VALVE | 1 | |
| 7X5454 | 26 RING-BACKUP | 2 | |
| 9S9334 | 27 PLUG-O-RING | 1 | |
| 7M8485 | 28 SEAL-O-RING | 1 | |
| 7X5444 | 29 BOLT | 1 | |
| 7X5441 | 30 GUIDE | 1 | |
| 1081753 | 31 BEARING | 2 | |
| 7X5450 | 32 PISTON-SERVO | 1 | |
| 1G9413 | 33 VALVE-RELIEF | 2 | |
| 1G8494 | 34 BOLT (1/4-20X1.125-IN) | 10 | |
| 7H3937 | 35 LOCKWASHER (EXTERNAL TOOTH) | 1 | |
| 4D2297 | 36 SEAL-O-RING | 1 | |
| 7X5498 | 37 GASKET | 2 | |
| 9S4182 | 38 PLUG (7/16-20-THD) | 1 | |
| 9F2247 | 39 PLUG-PIPE | 2 | |
| 7X5478 | 40 PIN-SPRING | 1 | |
| 7X5486 | 41 GASKET | 1 | |
| 7X5468 | 42 BEARING AS-NEEDLE | 1 | |
| 1092981 | 43 PLATE-VALVE | 1 | |
| 1H1023 | 44 SEAL-O-RING | 2 | |
| 7X5469 | 45 RING-RETAINING | 1 | |
| 7X5470 | 46 WASHER-SPECIAL | 1 | |
| 7X5471 | 47 SPRING | 1 | |
| 7X5472 | 48 WASHER (31.2X40.3X2.7-MM THK) | 1 | |
| 7X5474 | 50 PIN | 3 | |
| 7X5473 | 51 RETAINER | 1 | |
| 7X5477 | 52 GUIDE-RETAINER | 1 | |
| 1G5975 | 53 GUIDE | 1 | |
| 1G5974 | 54 PISTON | 7 | |
| 1147211 | 55 SHAFT-TAPERED | 1 | |
| 7F6547 | 57 NUT | 1 | |
| 7X5431 | 58 KIT-SWASHPLATE | 1 | |
| 1248347 | 59 BEARING-JOURNAL | 2 | |
| 5P2547 | 60 BOLT-12 POINT HEAD (7/16-14X1-IN) | 6 | |
| 0344288 | 61 BOLT-12 POINT HEAD (3/8-16X1.125-IN) | 1 | |
| 1J6474 | 62 RING-RETAINING (EXTERNAL) | 2 | |
| 2H5549 | 63 RING-RETAINING | 2 | |
| 7X5433 | 64 SEAL-LIP TYPE | 1 | |
| 1079447 | 65 BEARING-ROLLER | 1 | |
| 1248343 | 67 BEARING-JOURNAL | 2 | |
| 7X5484 | 68 PIN | 1 | |
| 7X5485 | 69 BUSHING | 1 | |
| 1389753 | 70 PIN-SLOTTED | 1 | |
| 7X5489 | 71 PIN | 1 | |
| 9S8008 | 72 PLUG (1-1/16-12-THD) | 2 | |
| 1138210 | 73 STOP-SERVO | 1 | |
| 7X5443 | 74 SPRING | 1 | |
| 7X5445 | 75 GUIDE | 1 | |
| 7X5446 | 76 RING-RETAINING | 1 | |
| 6V8183 | 77 NUT-FULL (3/8-24-THD) | 1 | |
| 5B9079 | 78 NUT-JAM (3/8-24-THD) | 1 | |
| 7X5466 | 80 NUT | 1 | |
| 3J1907 | 81 SEAL-O-RING | 4 | |
| 2R0504 | 82 NUT (5/16-18-THD) | 1 | |
| 7X5458 | 83 HANDLE | 1 | |
| 7X5459 | 84 BRACKET | 1 | |
| 7X5457 | 85 SPRING | 1 | |
| 3J7354 | 86 SEAL-O-RING | 1 | |
| 7X9367 | 87 SPOOL | 1 | |
| 7X5448 | KIT-PISTON RING | 1 | |
| 7X5866 | KIT-CYLINDER BLOCK (PROPEL MOTOR) | 1 | |
| 6R4347 | KIT-RELIEF VALVE | 2 |
