System And Components

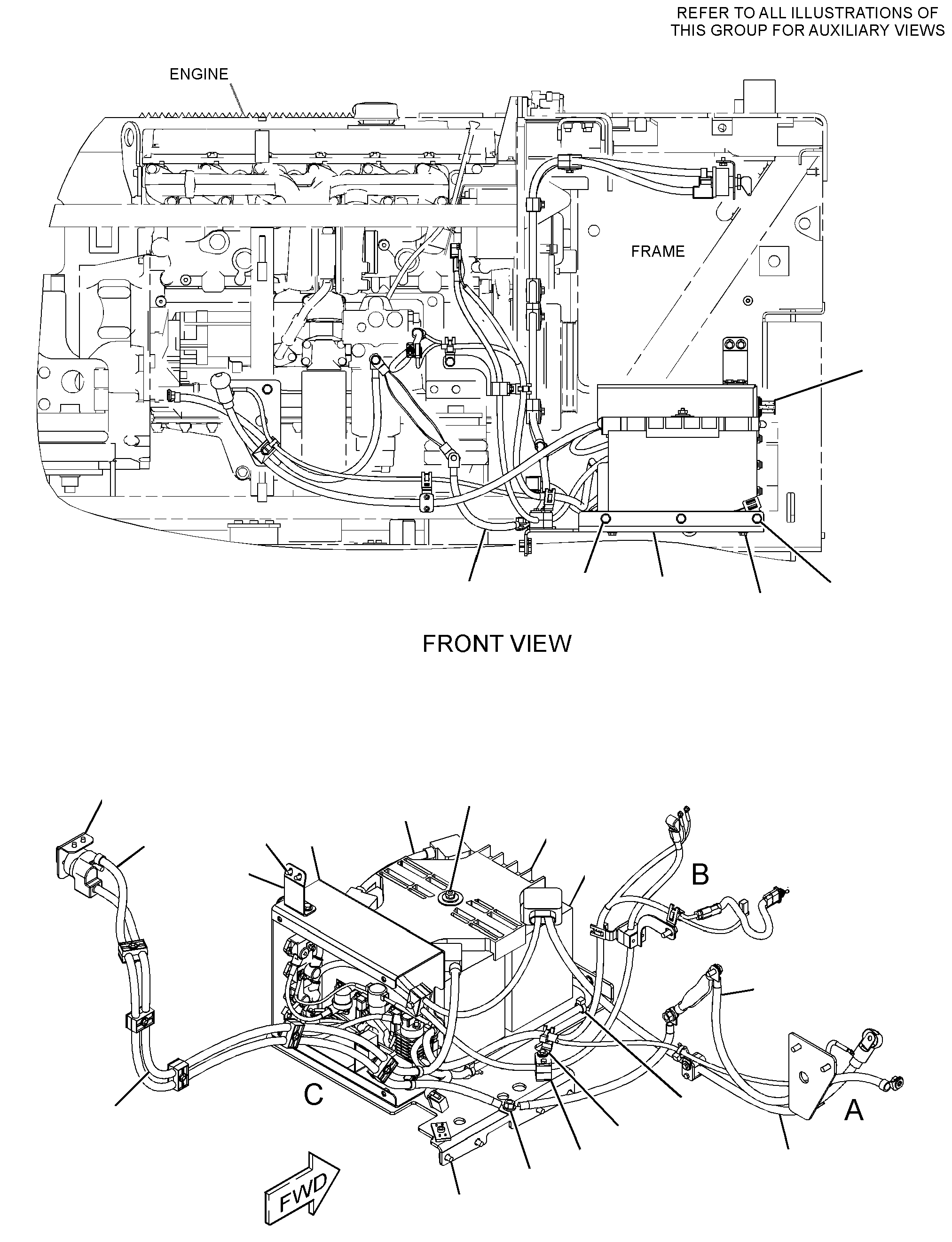

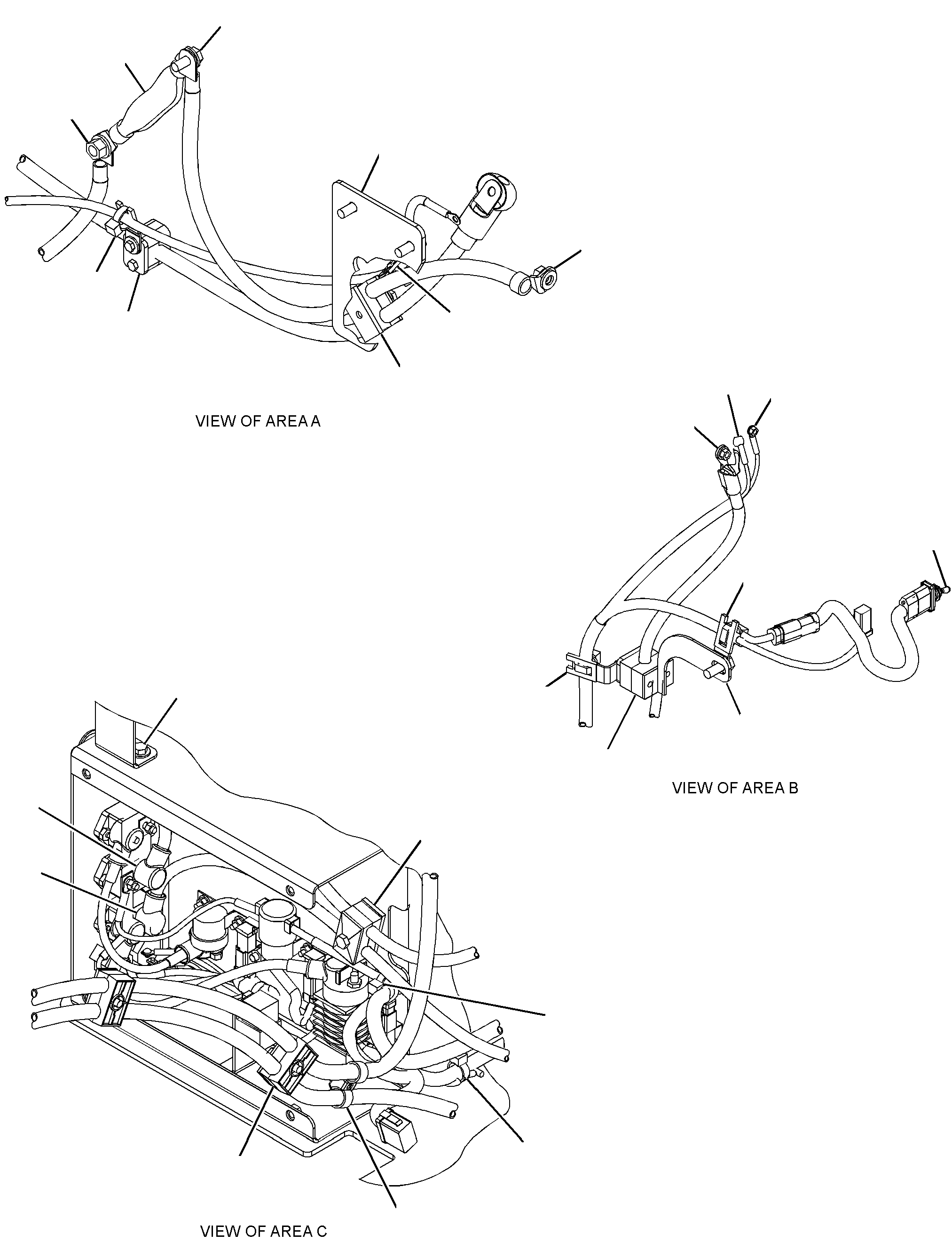

269-8366 BATTERY & WIRING GPS/N MAN1-UP
Group No: 269-8366
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1G8781 | 1 CLAMP (HALF) | 4 | |
| 3E8320 | 2 PLATE-INSTRUCTION (BATTERY) | 1 | |
| 6W6005 | 3 HOLD-DOWN-BATTERY | 1 | |
| 7N0718 | 4 SWITCH GP-DISCONNECT (BATTERY) | 1 | |
| 1028703 | 5 PLATE-COVER (TOP) | 7 | |
| 1060800 | 6 CONNECTOR GP (REMOTE JUMP START, POSITIVE) | 1 | |
| 4D5243 | LOCKWASHER | 1 | |
| 9B9146 | NUT-SPECIAL (3/8-16-THD) | 1 | |
| 0625388 | LOCKNUT (1-11-1/2-THD) | 1 | |
| 2775777 | COVER-TERMINAL | 1 | |
| 1074749 | 7 PLATE (TOP)(TOP) | 3 | |
| 1117758 | 8 ROD | 1 | |
| 1280314 | 9 CABLE AS | 1 | |
| 8C5918 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 8T9756 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 5P0764 | HOSE (29-CM) | ||
| 9G0002 | COVER AS-TERMINAL (RED)(POSITIVE, LH) | 1 | |
| 9G0005 | COVER AS-TERMINAL (BLACK)(NEGATIVE, RH) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 1343355 | 10 STRAP AS | 1 | |
| 1655970 | 11 SWITCH GP-TOGGLE (FUEL PRIMING PUMP) | 1 | |
| 1772215 | 12 STRAP-DUAL CLAMP | 1 | |
| 3266194 | 13 PANEL GP-CIRCUIT BREAKER | 1 | |
| 2799885 | 14 CABLE AS | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(190-CM) | ||
| 8S3020 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 9G0003 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8L8413 | STRAP-CABLE (WHITE) | 1 | |
| 8T9757 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 2999092 | COVER-TERMINAL (BLACK) | 1 | |
| 2799886 | 15 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(193-CM) | ||
| 8S3020 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 2799889 | 16 CABLE AS | 1 | |
| 8C3056 | CABLE (2-GA, RED)(136-CM) | ||
| 8T8799 | BOOT (RED) | 1 | |
| 1151184 | TERMINAL-RING (2-GA, 1/4-IN SCREW) | 1 | |
| 2799890 | 17 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 2 | |
| 5P0747 | CABLE (00-GA, BLACK)(44-CM) | ||
| 2799891 | 18 CABLE AS | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(71-CM) | ||
| 8S3020 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 2802488 | 19 BRACKET AS | 1 | |
| 2802490 | 20 TRAY AS-BATTERY | 1 | |
| 2816361 | 21 BRACKET AS | 1 | |
| 4175524 | 22 PLATE | 1 | |
| 2888075 | 23 CABLE AS | 1 | |
| 3116185 | TERMINAL AS (2-GA) | 1 | |
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(4-CM) | ||
| 3116184 | TERMINAL-RING (2-GA, 3/8-IN SCREW) | 1 | |
| 8C3056 | CABLE (2-GA, RED)(13-CM) | ||
| 8T8799 | BOOT (RED) | 1 | |
| 1151184 | TERMINAL-RING (2-GA, 1/4-IN SCREW) | 1 | |
| 2891181 | 24 CABLE AS | 1 | |
| 5P0761 | CABLE (00-GA, RED)(105-CM) | ||
| 3L6513 | TERMINAL-RING (1-GA TO 2-GA, 1/2-IN SCREW) | 1 | |
| 8C3056 | CABLE (2-GA, RED)(80-CM) | ||
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 8T8799 | BOOT (RED) | 1 | |
| 2014024 | TERMINAL AS | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 2891542 | 25 PLATE | 1 | |
| 1152422 | 26 BATTERY GP (12-VOLT, MAINTENANCE FREE, WET) | 2 | |
| 1231373 | CAP AS-FILLER (7/8-9-THD) | 1 | |
| 1285531 | 27 CLAMP-HALF | 2 | |
| 1305300 | 28 CLIP | 1 | |
| 1544879 | 29 CLAMP-HALF | 2 | |
| 1565306 | 30 CLAMP-HALF | 12 | |
| 4P7581 | 31 CLIP (LADDER) | 2 | |
| 4P8134 | 32 CLIP (LADDER) | 3 | |
| 5C2874 | 33 NUT (M5X0.8-THD) | 2 | |
| 5C2890 | 34 NUT (M6X1-THD) | 1 | |
| 5C7261 | 35 NUT (M8X1.25-THD) | 2 | |
| 5P4115 | 36 WASHER-HARD (7.2X19X2-MM THK) | 3 | |
| 5P4116 | 37 WASHER-HARD (8.8X20.5X2-MM THK) | 9 | |
| 7K1181 | 38 STRAP-CABLE | 9 | |
| 7X2533 | 39 BOLT (M6X1X35-MM) | 3 | |
| 7X2537 | 40 BOLT (M8X1.25X35-MM) | 6 | |
| 8C8451 | 41 BOLT (M6X1X40-MM) | 3 | |
| 8T0328 | 42 WASHER-HARD (5.5X10X1-MM THK) | 2 | |
| 8T0389 | 43 LOCKNUT (M10X1.5-THD) | 1 | |
| 8T4121 | 44 WASHER-HARD (11X21X2.5-MM THK) | 6 | |
| 8T4133 | 45 NUT (M10X1.5-THD) | 4 | |
| 8T4136 | 46 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4137 | 47 BOLT (M10X1.5X20-MM) | 4 | |
| 8T4186 | 48 BOLT (M10X1.5X40-MM) | 3 | |
| 8T4189 | 49 BOLT (M8X1.25X20-MM) | 5 | |
| 8T4197 | 50 BOLT (M8X1.25X40-MM) | 1 | |
| 8T4199 | 51 BOLT (M8X1.25X12-MM) | 2 | |
| 8T4200 | 52 BOLT (M8X1.25X16-MM) | 2 | |
| 8T4205 | 53 WASHER-HARD (7.2X14.5X2-MM THK) | 1 | |
| 8T4222 | 54 WASHER-PLATED (11X32X2.5-MM THK) | 1 | |
| 8T4223 | 55 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4224 | 56 WASHER-HARD (8.8X16X2-MM THK) | 3 | |
| 8T4244 | 57 NUT (M12X1.75-THD) | 2 | |
| 7X7729 | 58 WASHER (11X25X3-MM THK) | 10 | |
| 7E0976 | 59 BOOT | 1 |
