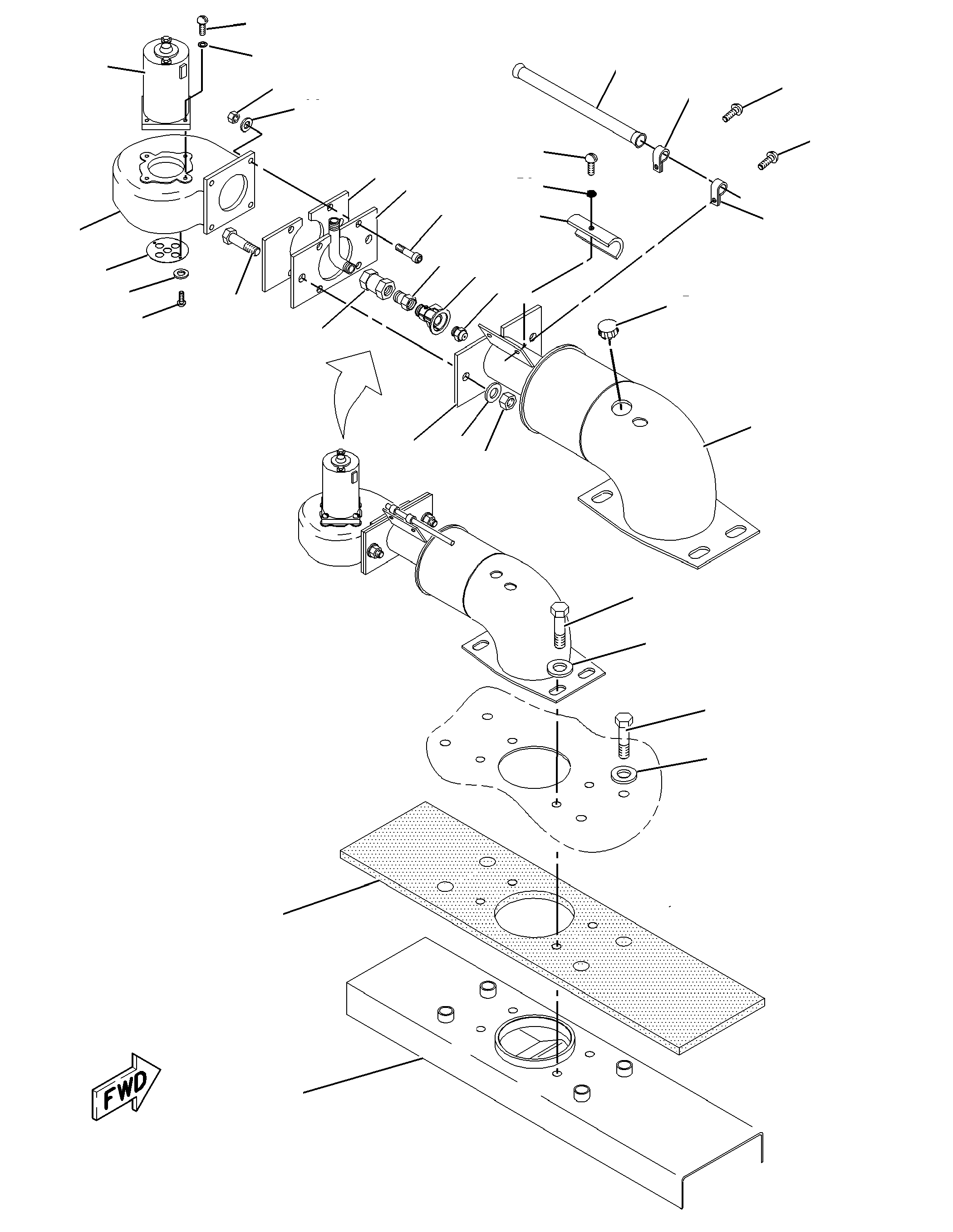

197-5291 BURNER GP -DIESEL HEATPART OF 231-4643 INSTALLATION AR-SCREED
Group No: 197-5291
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8I0997 | 1 CONNECTOR AS | 4 | |
| 8I0998 | 2 BRACKET-MOUNTING | 4 | |
| 2066728 | 3 WHEEL-BLOWER | 4 | |
| 1022698 | 4 HOUSING-BLOWER | 4 | |
| 1022725 | 5 ADAPTER | 4 | |
| 1041797 | 6 TUBE | 4 | |
| 2066749 | 7 MOTOR GP-ELECTRIC (24-VOLT)(BLOWER) | 4 | |
| 1118140 | 8 VALVE-CHECK (FUEL FLOW) | 4 | |
| 1419272 | 9 PLATE-COVER | 4 | |
| 1654687 | 10 CHAMBER AS-LOWER BURNER (MAIN) | 2 | |
| 1879608 | 11 NOZZLE (BURNER) | 4 | |
| 1879760 | 12 PLATE | 4 | |
| 1911036 | 13 PLUG | 4 | |
| 1915983 | 14 CONE AS | 4 | |
| 5P9132 | SCREW-HEX FLANGE (6-32X0.187-IN) | 1 | |
| 1925091 | 15 CHAMBER AS (UPPER) | 4 | |
| 1975269 | 16 INSULATION (1448MM LG) | 2 | |
| 1975270 | 17 INSULATION (1186MM LG) | 2 | |
| 1975271 | 18 CHAMBER AS-LOWER BURNER (EXTENDER) | 2 | |
| 0309612 | 19 SCREW-FORMING (10-24X0.5-IN) | 24 | |
| 6V5764 | 20 SCREW-MACHINE (10-32X0.625-IN) | 16 | |
| 4B4274 | 21 WASHER (5.5X13X1.2-MM THK) | 8 | |
| 5P1076 | 22 WASHER-HARD (13.5X30X4-MM THK) | 32 | |
| 5P2566 | 23 BOLT (1/2-13X1.5-IN) | 8 | |
| 6V8185 | 24 NUT (1/4-20-THD) | 16 | |
| 6V8188 | 25 NUT (1/2-13-THD) | 8 | |
| 8J1256 | 26 CLIP | 8 | |
| 8M6802 | 27 SCREW-HEX SOCKET (1/4-20X1-IN) | 16 | |
| 8T4205 | 28 WASHER-HARD (7.2X14.5X2-MM THK) | 16 | |
| 8T4223 | 29 WASHER-HARD (13.5X25.5X3-MM THK) | 16 | |
| 8T4835 | 30 BOLT (1/2-13X2-IN) | 16 | |
| 8T8917 | 31 BOLT (1/2-13X1.25-IN) | 16 | |
| 9F8125 | 32 LOCKWASHER | 24 |
