System And Components

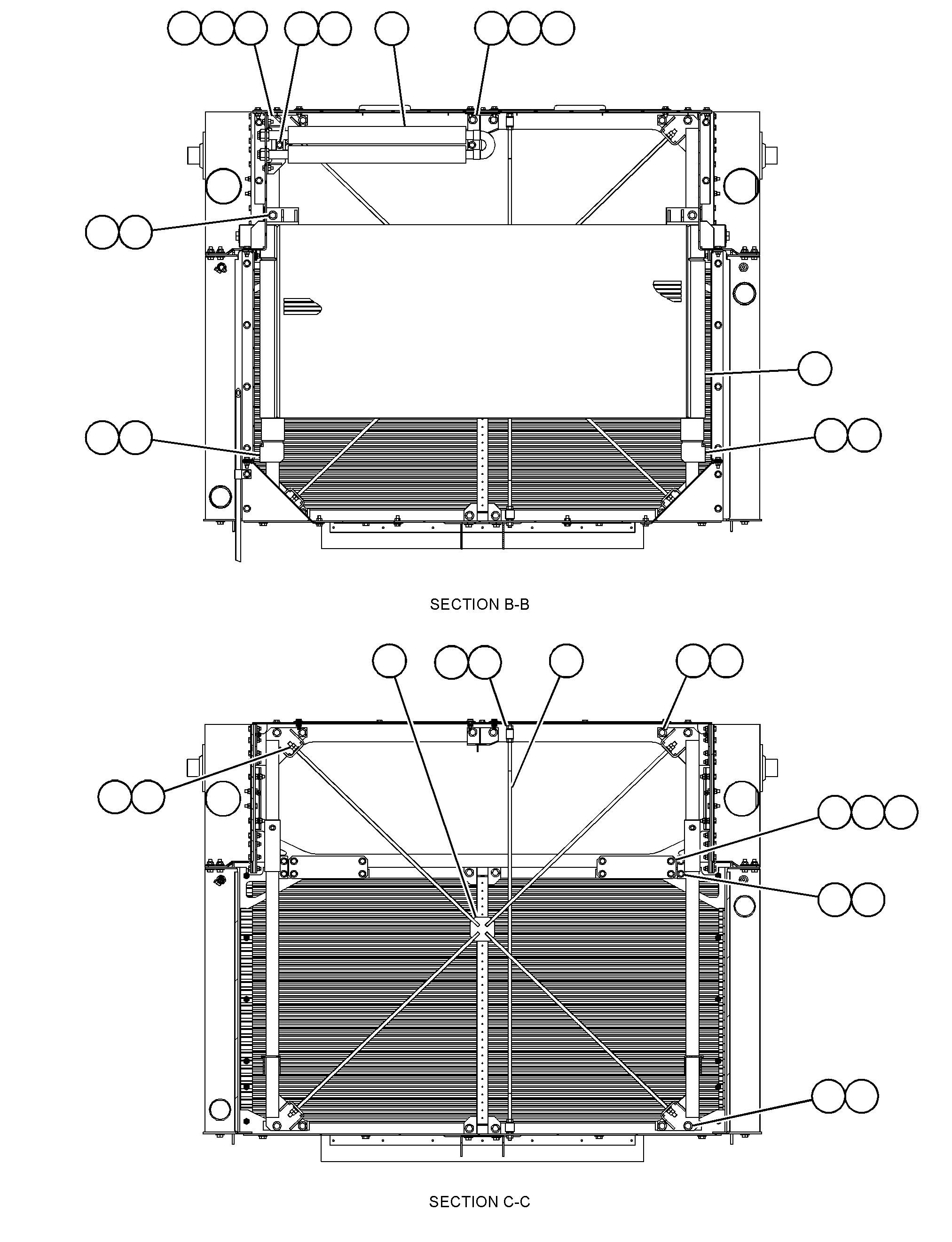

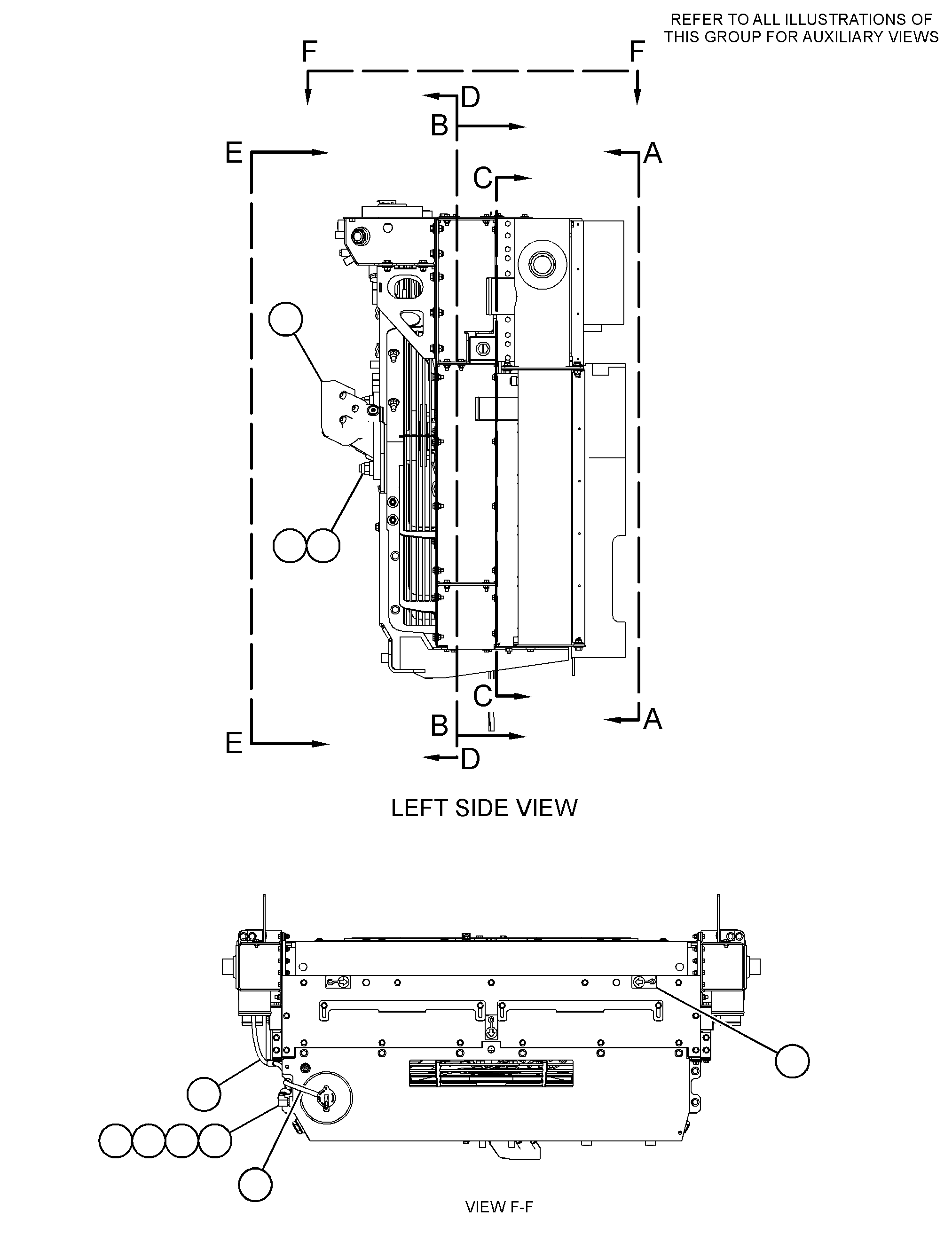

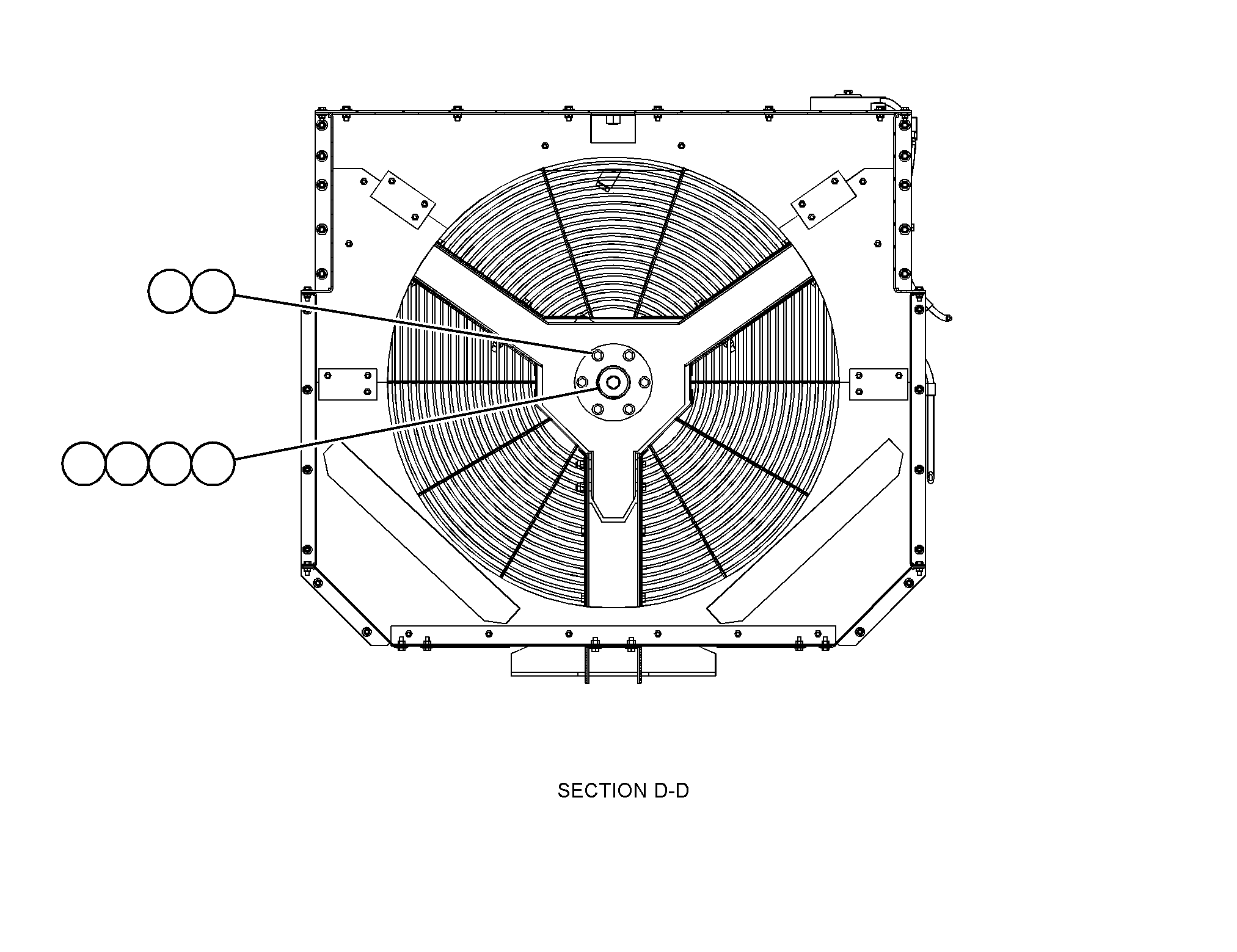

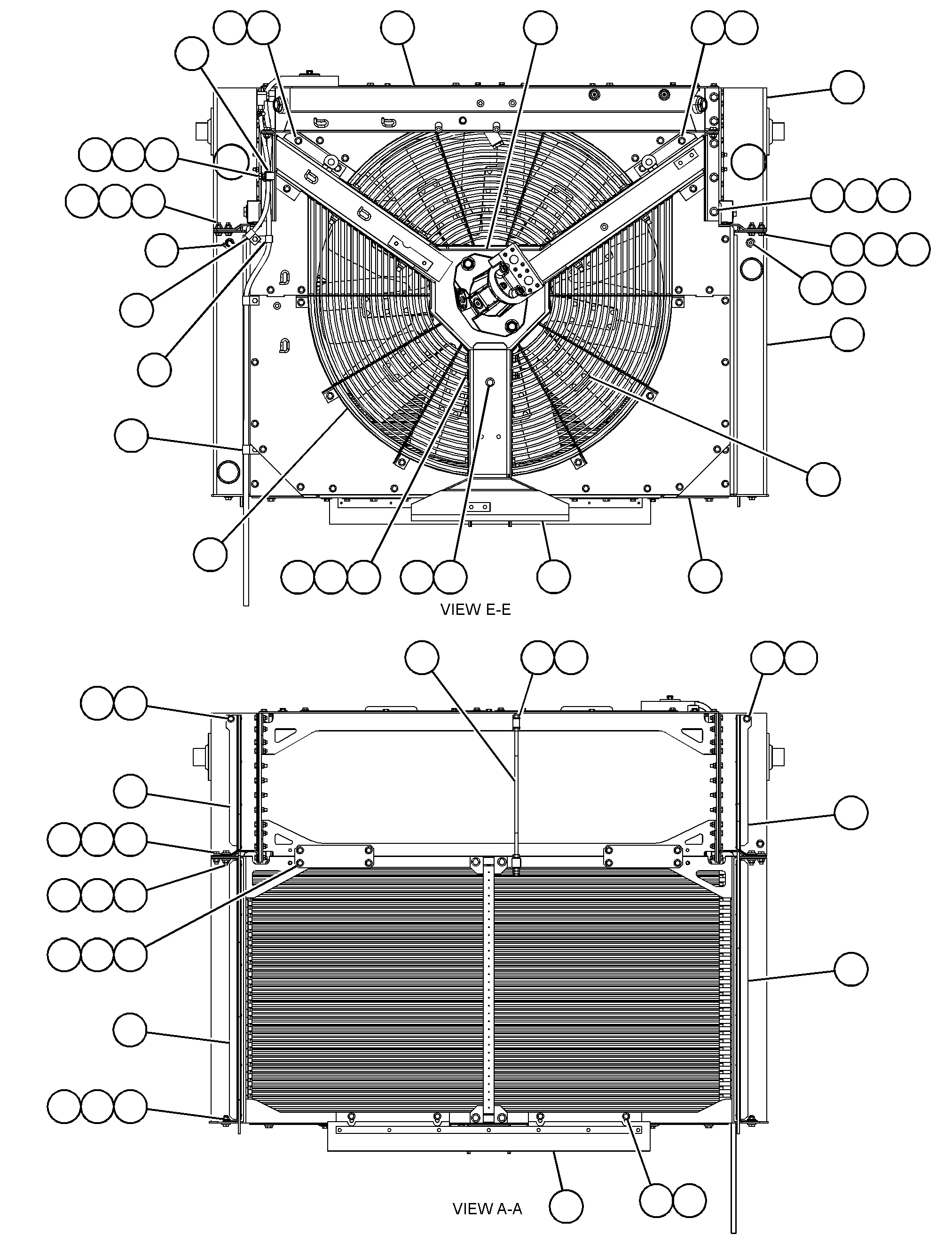

480-5255 RADIATOR & AFTERCOOLER GP -AFTERCOOLERS/N KT41-UP
Group No: 480-5255
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1P2807 | 1 FILM-IDENTIFICATION (LIFT EYE LOCATION) | 3 | |
| 3305082 | 2 ADAPTER-FAN | 1 | |
| 3551755 | 4 MOUNT | 2 | |
| 4612349 | 5 MOTOR GP-PISTON | 1 | |
| 4830178 | 6 SPIDER AS-FAN | 1 | |
| 4858946 | 7 RADIATOR GP (HIGH AMBIENT TEMPERATURE) | 1 | |
| 4858960 | 8 AFTERCOOLER GP-AIR | 1 | |
| 4858970 | 9 BRACKET AS | 1 | |
| 4862503 | 10 COOLER AS (FUEL) | 1 | |
| 4862504 | 11 COOLER AS (HYDRAULIC) | 1 | |
| 4862505 | 12 TANK GP-RADIATOR TOP | 1 | |
| 4862507 | 13 BRACKET AS | 1 | |
| 4862508 | 14 PLATE | 4 | |
| 4862509 | 15 MOUNT AS (OIL)(LH) | 1 | |
| 4862510 | 16 MOUNT AS (OIL)(RH) | 1 | |
| 4862511 | 17 BRACE AS | 1 | |
| 4862512 | 18 BRACE (LONG) | 1 | |
| 4862513 | 19 BRACE (SHORT) | 1 | |
| 4862514 | 20 SUPPORT AS (UPPER) | 1 | |
| 2Y5829 | NUT (M10X1.5-THD) | 1 | |
| 6V5845 | BOLT (M20X2.5X70-MM) | 2 | |
| 7T1099 | LINK | 2 | |
| 9R2613 | BOSS-WELD (M10X1.5X25-MM) | 2 | |
| 4862515 | 21 SUPPORT AS (LOWER) | 1 | |
| 2Y5829 | NUT (M10X1.5-THD) | 6 | |
| 4862517 | 22 SHROUD GP-RADIATOR | 1 | |
| 4862551 | 23 GUARD GP-FAN | 1 | |
| 4873118 | 24 SEAL AS (TOP) | 1 | |
| 1072207 | RIVET-POP | 4 | |
| 4873119 | 25 SEAL AS (LOWER) | 1 | |
| 1072207 | RIVET-POP | 6 | |
| 4873120 | 26 SEAL AS (TOP) | 1 | |
| 1072207 | RIVET-POP | 4 | |
| 4873121 | 27 SEAL AS (LOWER) | 1 | |
| 1072207 | RIVET-POP | 6 | |
| 4873122 | 28 SEAL AS (BOTTOM) | 1 | |
| 1072207 | RIVET-POP | 7 | |
| 1984777 | 29 WASHER-HARD (11X25X10-MM THK) | 6 | |
| 1984781 | 30 WASHER-HARD (22X40X10-MM THK) | 2 | |
| 1P4278 | 31 CLAMP-HOSE | 2 | |
| 3445675 | 33 NUT (M10X1.5-THD) | 18 | |
| 5P1076 | 35 WASHER-HARD (13.5X30X4-MM THK) | 4 | |
| 5P4116 | 36 WASHER-HARD (8.8X20.5X2-MM THK) | 36 | |
| 5P9299 | 37 CLIP (LOOP) | 2 | |
| 6D3479 | 38 CLIP (LOOP) | 2 | |
| 6I9471 | 39 RETAINER | 1 | |
| 6K8178 | 40 CLIP (LOOP)(LOOP) | 1 | |
| 6V3250 | 41 SEAL-O-RING | 1 | |
| 6V7688 | 42 LOCKNUT (M20X2.5-THD) | 2 | |
| 6V7744 | 43 LOCKNUT (M10X1.5-THD) | 24 | |
| 7X0818 | 44 BOLT (M8X1.25X45-MM) | 2 | |
| 7X2554 | 45 BOLT (M16X2X70-MM) | 1 | |
| 7X7729 | 46 WASHER (11X25X3-MM THK) | 73 | |
| 8T4121 | 47 WASHER-HARD (11X21X2.5-MM THK) | 13 | |
| 8T4136 | 48 BOLT (M10X1.5X25-MM) | 24 | |
| 8T4186 | 49 BOLT (M10X1.5X40-MM) | 6 | |
| 8T4189 | 50 BOLT (M8X1.25X20-MM) | 18 | |
| 8T4195 | 51 BOLT (M10X1.5X30-MM) | 17 | |
| 8T4196 | 52 BOLT (M10X1.5X35-MM) | 9 | |
| 8T4908 | 53 BOLT (M8X1.25X25-MM) | 12 | |
| 8T7547 | 54 BOLT (M8X1.25X30-MM) | 4 | |
| 8T8549 | 55 LOCKNUT (M12X1.75-THD) | 2 | |
| 8T9085 | 56 BOLT (M10X1.5X150-MM) | 2 | |
| 9X8257 | 57 WASHER (17.5X30X3.5-MM THK) | 1 | |
| 4231981 | 58 HOSE (70-IN) | ||
| 5P1465 | 59 HOSE (69-CM) | ||
| 3378767 | 60 CONNECTOR AS | 2 | |
| 2385079 | SEAL-O-RING | 1 | |
| 3378766 | CONNECTOR | 1 | |
| 1360853 | 61 ADAPTER | 2 | |
| 3J1907 | 62 SEAL-O-RING | 2 | |
| 2416215 | 63 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8076 | ELBOW | 1 | |
| 9S8004 | 64 PLUG (9/16-18-THD) | 1 | |
| 1P7009 | 65 CLIP | 1 |
