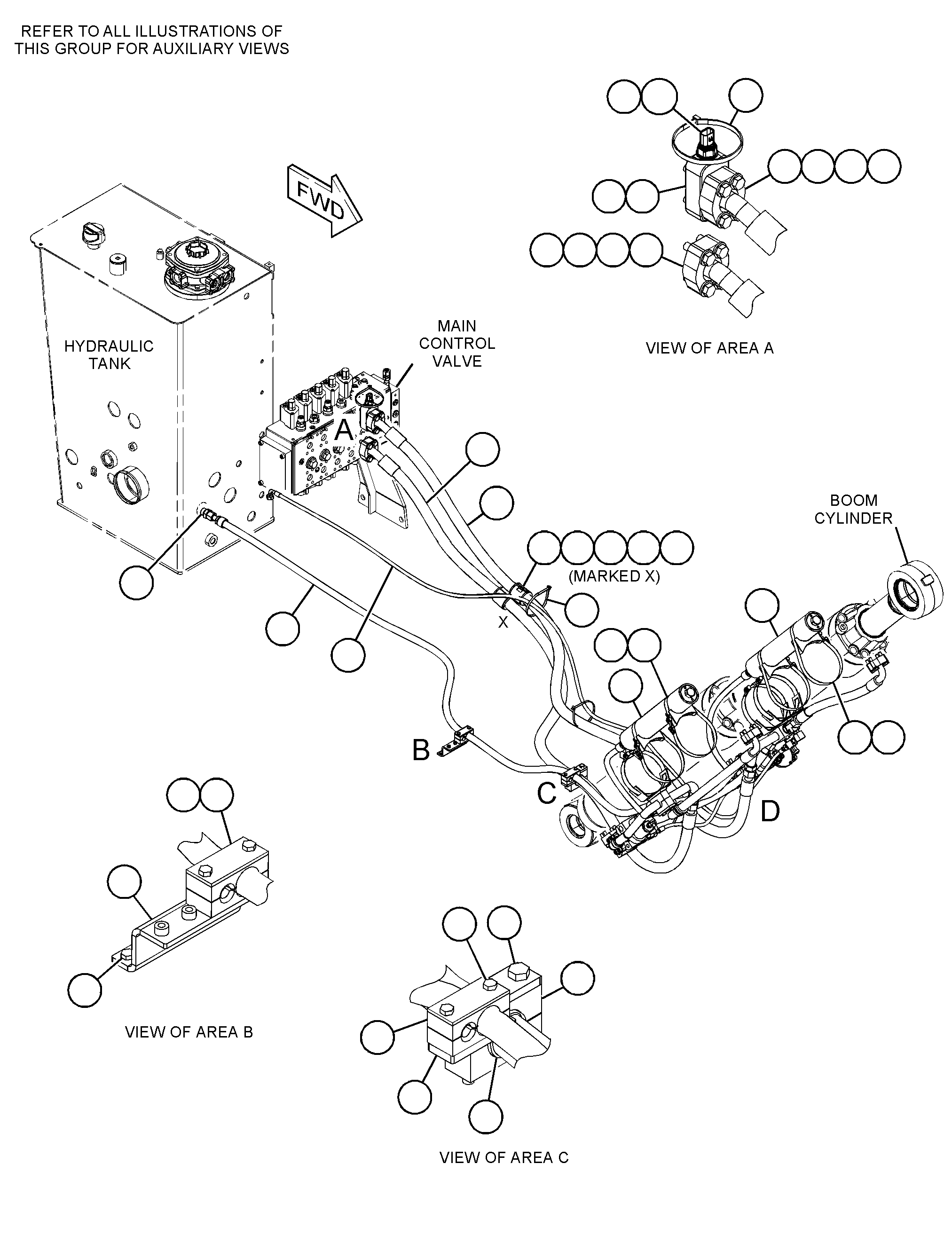

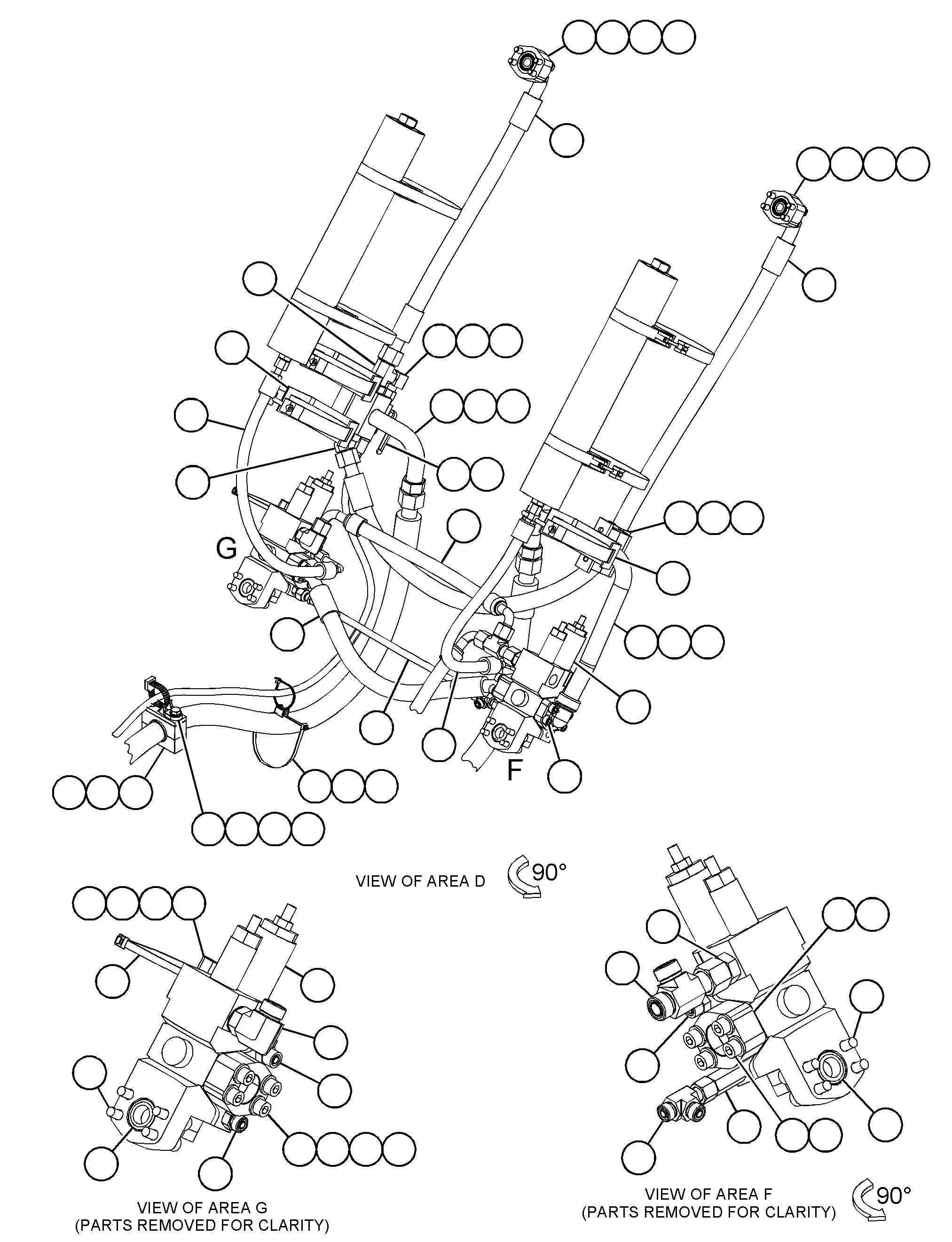

459-0456 LINES GP-CHECK VALVE -SMARTBOOM, BM CYL, ACCUMULATORS/N FB51-UP
Group No: 459-0456
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 1 | |
| 7K1181 | 2 STRAP-CABLE | 5 | |
| 1374199 | 3 TUBE AS | 1 | |
| 1394016 | 4 INSERT-RUBBER | 2 | |
| 1401250 | 5 HOSE AS | 1 | |
| 1407599 | 6 CLAMP | 1 | |
| 1446060 | 7 ORIFICE | 1 | |
| 1457166 | 8 VALVE GP-MANUAL (BOOM LOWERING CONTROL) | 1 | |
| 1488440 | 9 TEE AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 8C0569 | TEE-O-RING | 1 | |
| 1521267 | 10 ELBOW | 1 | |
| 1621415 | 11 HOSE AS | 1 | |
| 2006181 | 12 PLATE AS | 1 | |
| 2090592 | 13 CLAMP AS | 1 | |
| 2090593 | 14 CLAMP AS | 1 | |
| 2104782 | 15 PLATE AS | 1 | |
| 2126765 | 16 HOSE AS | 1 | |
| 2126766 | 17 HOSE AS | 1 | |
| 2263437 | 18 HOSE AS | 1 | |
| 2883658 | 19 CLAMP-SINGLE | 1 | |
| 2993658 | 20 CLAMP | 4 | |
| 3055900 | 21 SPACER | 4 | |
| 3142885 | 22 CONNECTOR-SPECIAL | 1 | |
| 3304679 | 23 TUBE AS | 1 | |
| 3491178 | 24 SENSOR-PRESSURE (OVERLOAD WARNING) | 1 | |
| 3491178 | 24A SENSOR-PRESSURE (BOOM CYLINDER LINES) | 1 | |
| 3535950 | 25 HOSE AS | 1 | |
| 3535954 | 26 ACCUMULATOR GP-HYDRAULIC (CHARGED) | 2 | |
| 3535955 | 27 ORIFICE | 1 | |
| 4449575 | 28 HOSE AS | 1 | |
| 4449576 | 29 HOSE AS | 1 | |
| 4449577 | 30 HOSE AS | 1 | |
| 1017404 | 31 BOLT-SOCKET HEAD (M10X1.5X30-MM) | 4 | |
| 1053477 | 32 BOLT-SOCKET HEAD (M10X1.5X45-MM) | 16 | |
| 1395751 | 33 CLAMP-SINGLE | 2 | |
| 1488315 | 34 CONNECTOR AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8642 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488336 | 35 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488341 | 36 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8713 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488390 | 37 ELBOW AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8626 | ELBOW | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488433 | 38 TEE AS | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 1488446 | 39 TEE AS-SWIVEL | 1 | |
| 6V9838 | TEE-SWIVEL | 1 | |
| 7J9108 | SEAL-O-RING | 2 | |
| 1536237 | 40 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9004 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1649869 | 41 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 9X2297 | CONNECTOR | 1 | |
| 1949390 | 42 CLAMP GP-HYDRAULIC LINES (LOG) | 2 | |
| 1949388 | CLAMP | 2 | |
| 1949389 | PLATE | 1 | |
| 1P3702 | 43 SEAL-RECTANGULAR | 4 | |
| 1P3703 | 44 SEAL-RECTANGULAR | 3 | |
| 2042281 | 45 STRAP-CABLE | 1 | |
| 2062423 | 46 SADDLE-MOUNTING | 1 | |
| 2307732 | 47 MOUNTING-CABLE TIE | 1 | |
| 2542675 | 48 VALVE GP-LOAD CONTROL (PILOT OPERATED) | 2 | |
| 2808912 | 49 BOLT (M10X1.5X75-MM) | 2 | |
| 2877334 | 50 FLANGE | 1 | |
| 3J1907 | 51 SEAL-O-RING | 4 | |
| 4J5267 | 52 SEAL-O-RING | 3 | |
| 5K9090 | 53 SEAL-O-RING | 2 | |
| 5P7468 | 54 CLIP (SLOT) | 2 | |
| 5P7469 | 55 CLIP (TAB) | 2 | |
| 5P8444 | 56 GROMMET (37-MM ID) | 2 | |
| 6V0400 | 57 FLANGE-HALF | 4 | |
| 6V8397 | 58 SEAL-O-RING | 2 | |
| 8C8451 | 59 BOLT (M6X1X40-MM) | 4 | |
| 8T4121 | 60 WASHER-HARD (11X21X2.5-MM THK) | 17 | |
| 8T4171 | 61 BOLT (M6X1X12-MM) | 2 | |
| 8T4172 | 62 BOLT (M10X1.5X80-MM) | 4 | |
| 8T4182 | 63 BOLT (M10X1.5X45-MM) | 8 | |
| 8T4184 | 64 BOLT (M12X1.75X45-MM) | 4 | |
| 8T4185 | 65 BOLT (M10X1.5X50-MM) | 2 | |
| 8T4223 | 66 WASHER-HARD (13.5X25.5X3-MM THK) | 10 | |
| 8T4956 | 67 BOLT (M12X1.75X35-MM) | 2 | |
| 8T6868 | 68 BOLT (M12X1.75X80-MM) | 4 | |
| 8T9403 | 69 FLANGE-HALF | 8 | |
| 5298809 | 70 HOSE AS | 2 | |
| 1833399 | 71 CONNECTOR AS | 2 | |
| 6V8636 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 |
