System And Components

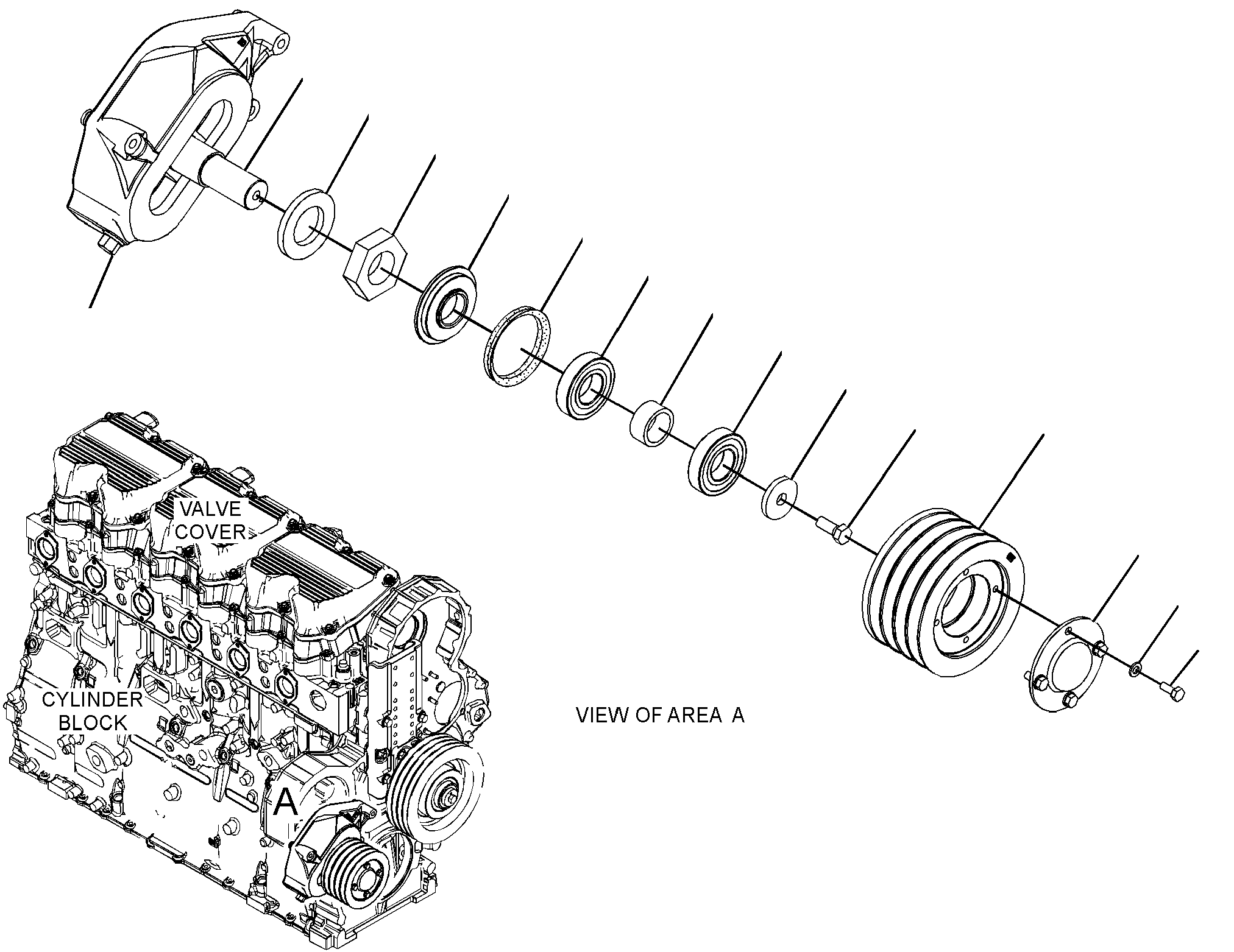

369-6649 BELT TIGHTENER GP -FANS/N BDN1-UP
Group No: 369-6649
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8C5238 | 1 SEAL-V-RING | 1 | |
| 2968187 | 2 BOLT (M12X1.75X191.5-MM) | 1 | |
| 2145235 | 3 WASHER (14X38X6-MM THK) | 1 | |
| 9M1974 | 4 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 3694608 | 5 SPACER-BEARING (25.02X34.45X20.95-MM THK) | 1 | |
| 3510503 | 6 COVER | 1 | |
| 3633527 | 7 SHAFT | 1 | |
| 3699948 | 8 PULLEY-FAN DRIVE (4-GROOVE) | 1 | |
| 3694570 | 9 SPACER-BEARING | 1 | |
| 6V5217 | 10 BOLT (M8X1.25X20-MM) | 4 | |
| 1293180 | 11 LOCKNUT (M12X1.75-THD) | 1 | |
| 1100848 | 12 NUT (M30X1.5-THD) | 1 | |
| 5P8245 | 13 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 5P7807 | 14 BALL BEARING | 2 | |
| 6V3668 | 15 BOLT (M12X1.75X30-MM) | 1 | |
| 2968178 | 16 WASHER (55X31X8-MM THK) | 1 |
