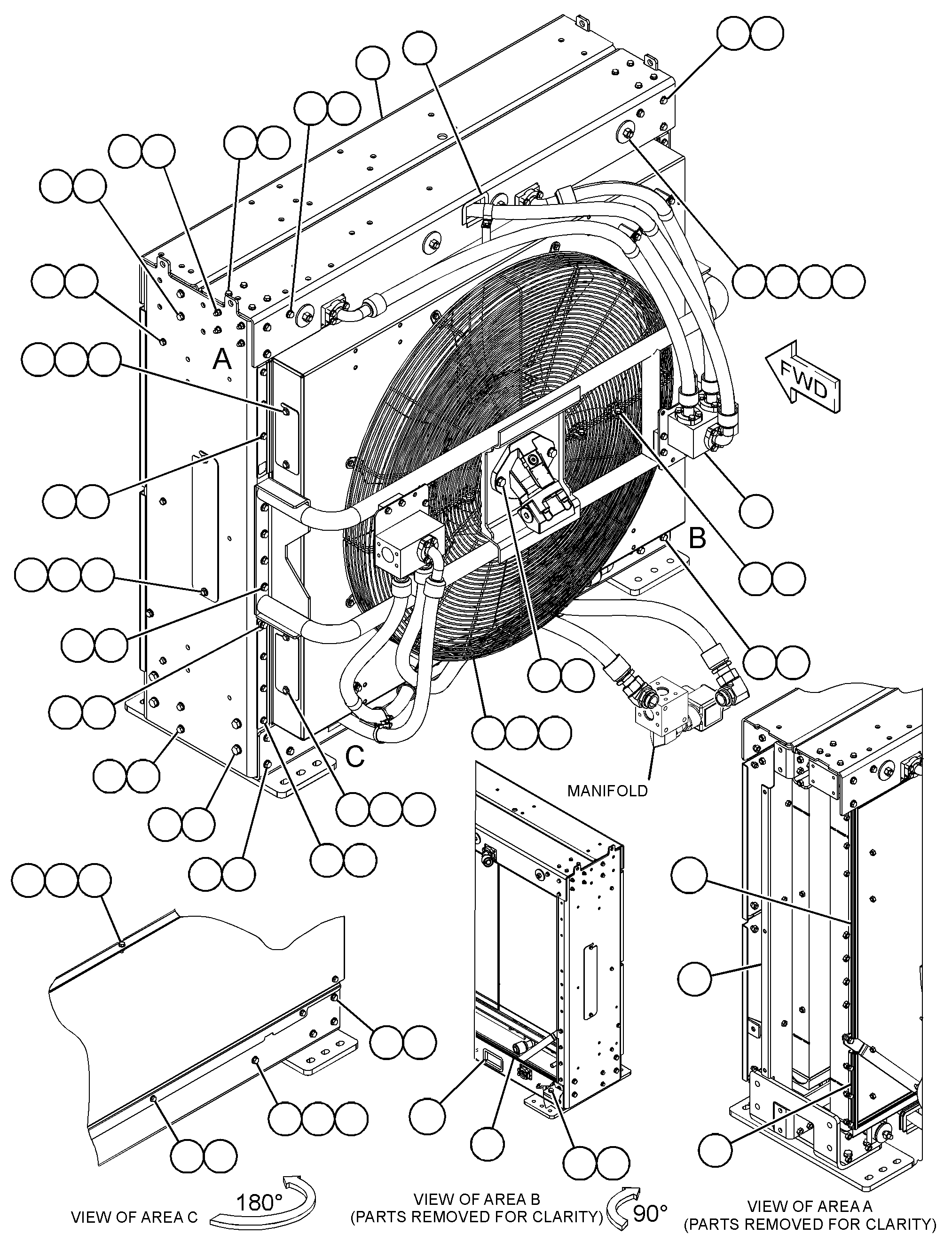

527-1326 MODULE GP-COOLINGS/N DLZ1-UP

Group No: 527-1326
Part NumberPart NameQty
11829901 MOUNT AS16
52706872 FAN GP-SUCTION1
52713273 FRAME GP-COOLING1
52775524 LINES GP-OIL1
52867625 COOLING GP1
32933566 NUT (M12X1.75-THD)2
34456757 NUT (M10X1.5-THD)14
5V05008 WASHER (16.5X75X6-MM THK)28
8T41219 WASHER-HARD (11X21X2.5-MM THK)69
8T413210 NUT (M16X2-THD)4
8T413611 BOLT (M10X1.5X25-MM)6
8T413912 BOLT (M12X1.75X30-MM)38
8T417313 BOLT (M16X2X110-MM)16
8T418314 BOLT (M12X1.75X40-MM)16
8T754715 BOLT (M8X1.25X30-MM)8
8T419316 BOLT (M16X2X50-MM)10
8T419517 BOLT (M10X1.5X30-MM)49
8T422318 WASHER-HARD (13.5X25.5X3-MM THK)62
5P411619 WASHER-HARD (8.8X20.5X2-MM THK)8
8T495620 BOLT (M12X1.75X35-MM)6
8T733821 BOLT (M16X2X45-MM)12
9X825722 WASHER (17.5X30X3.5-MM THK)22
8T342523 CHANNEL-TRIM (0.3-M EACH)
8T342523A CHANNEL-TRIM (0.4-M)
190661624 SEAL (32.5-CM EACH)
190661624A SEAL (100-CM EACH)
308913125 SEAL (1662-MM EACH)
7X772926 WASHER (11X25X3-MM THK)12
364979427 BOLT (M10X1.5X55-MM)12
3B461828 PIN-COTTER12
