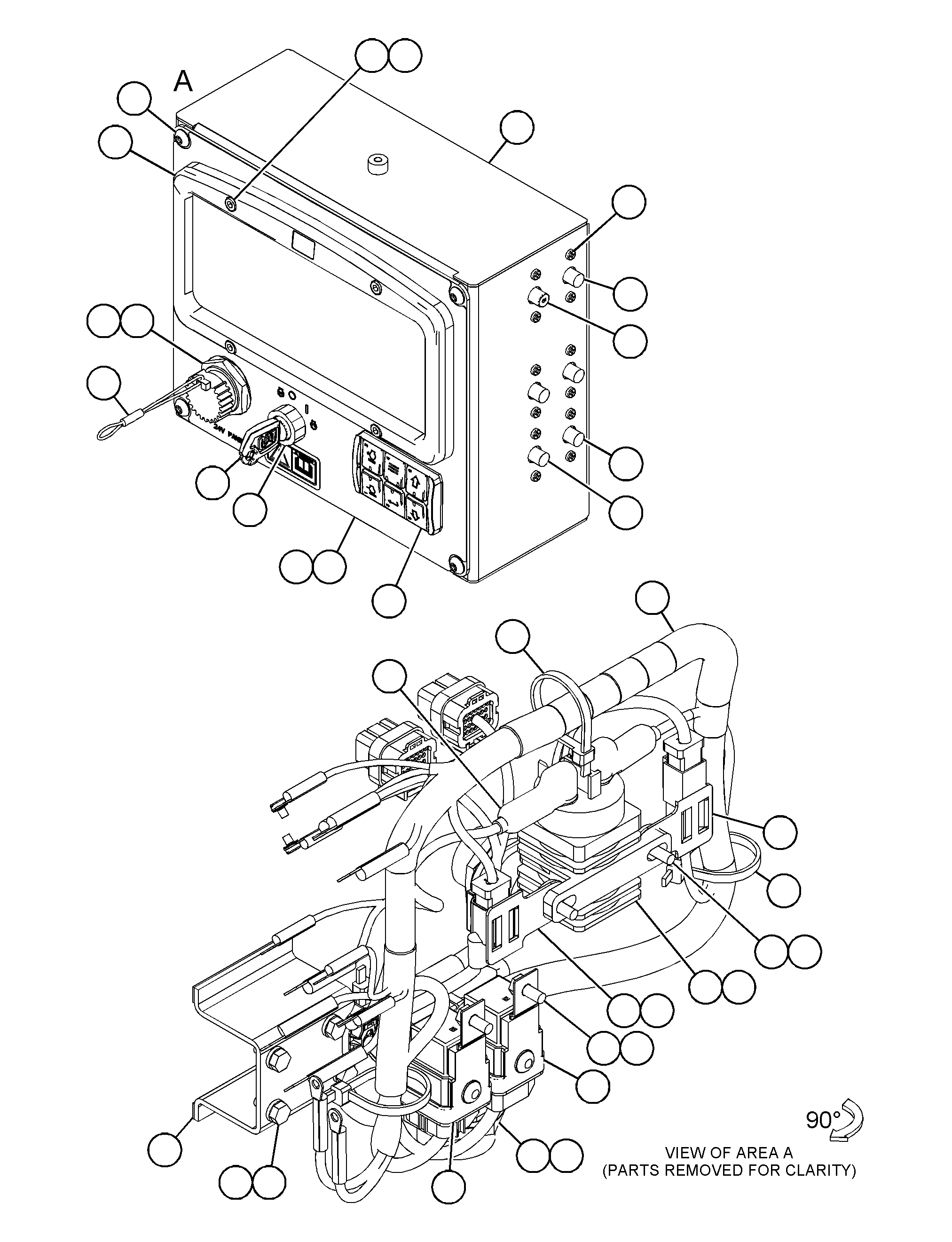

526-0669 INSTRUMENT GP -CLUSTER GAUGE, 24-VOLTS/N NGH1-UP

Group No: 526-0669
Part NumberPart NameQty
5P85001 KEY (CORPORATE)1
10825152 COVER-TERMINAL2
18931583 SUPPRESSOR-ARC1
20390074 NUT (1-1/2-18-THD)1
23139305 RELAY AS (24-VOLT)(SHUTDOWN)1
23139305A RELAY AS (24-VOLT)(FUEL PUMP)1
24183686 SWITCH GP-MAGNETIC (24-VOLT)1
25527527 SWITCH GP-START (IGNITION)1
26037338 CIRCUIT BREAKER AS (5-AMPERE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
27026799 LOCKWASHER1
340729810 CAP AS-PROTECTION1
387429911 BOX AS-INSTRUMENT1
6V9632NUT-WELD (M6X1-THD)8
7T1099LINK3
487846212 MODULE GP-KEYPAD1
525902513 FILM-IDENTIFICATION (INSTRUMENT PANEL)1
526067314 PLATE AS1
6V9632NUT-WELD (M6X1-THD)4
526067415 HARNESS AS-PANEL1
526072316 DISPLAY GP-MONITOR1
5046397CONTROL GP-ELECTRONIC1
3648277FILM-IDENTIFICATION (CAT)1
5256583SOFTWARE GP-MONITOR1
526397917 BRACKET AS1
130530018 CLIP2
211005219 NUT (1-11/16-18-THD)1
310067420 LOCKWASHER1
3S209321 STRAP-CABLE4
191892122 BOLT-SOCKET HEAD (M6X1X25-MM)4
6T364323 CIRCUIT BREAKER AS (15-AMPERE)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
6T364424 CIRCUIT BREAKER AS (20-AMPERE)3
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
6T364525 CIRCUIT BREAKER GP (60-AMPERE)1
8T413826 BOLT (M6X1X20-MM)2
8T422427 WASHER-HARD (8.8X16X2-MM THK)2
8T497028 BOLT (M6X1X14-MM)6
9X204429 SCREW-TRUSS HEAD (M6X1X16-MM)4
9X616530 WASHER (6.5X22X2.5-MM THK)2
9X825631 WASHER (6.6X12X2-MM THK)10
9X848632 SCREW-MACHINE (8-32X0.75-IN)12
