System And Components

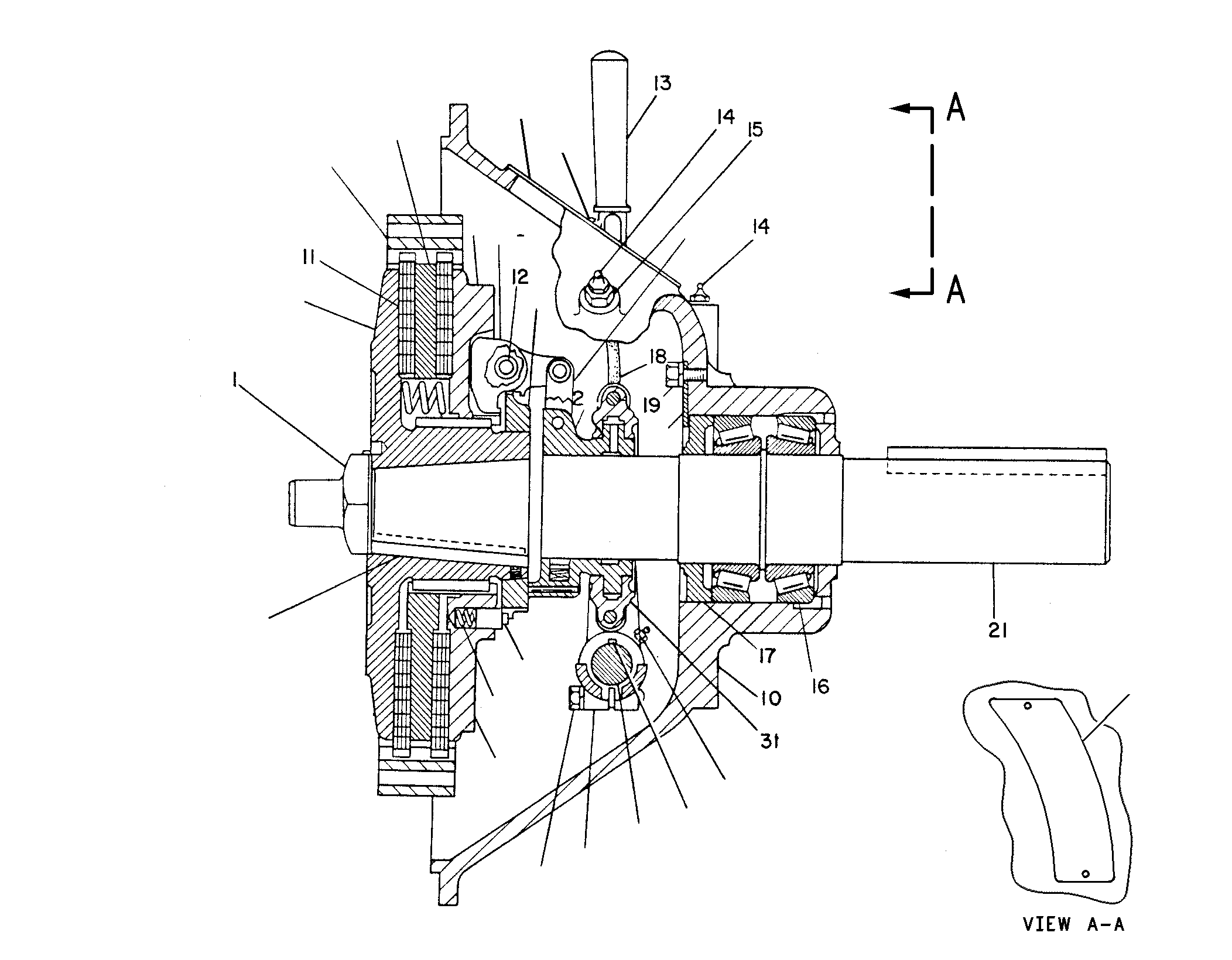

4P-2270 CLUTCH GPPART OF 6I-0415 POWER TAKE-OFF GP
Group No: 4P-2270 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5L2017 | 1 NUT (1-3/4-16-THD) | 1 | |
| 5L2026 | LOCK | 1 | |
| 1N7513 | 2 KEY-WOODRUFF | 1 | |
| 5L2016 | 3 PLATE-HUB & BACK | 1 | |
| 0S1591 | 4 BOLT (3/8-16X1.5-IN) | 2 | |
| 9F5644 | LOCKWASHER | 2 | |
| 2N1372 | 5 RING-DRIVE | 1 | |
| 8B7121 | 6 FITTING-HYDRAULIC (CLUTCH) | 2 | |
| 6L5151 | 7 KEY-WOODRUFF | 2 | |
| 4B4756 | 8 SHAFT | 1 | |
| 1K2673 | 9 YOKE | 1 | |
| 5L9645 | 10 HOUSING | 1 | |
| 3N7952 | 11 PLATE-DRIVE | 2 | |
| 5D2751 | 12 WASHER-SPRING (0.406X0.687X0.125-IN THK) | 6 | |
| 4B4787 | 13 LEVER AS | 1 | |
| 0S1587 | BOLT (1/2-13X1.75-IN) | 1 | |
| 3B8489 | 14 ADAPTER (1/8-27 PTF)(CLUTCH) | 2 | |
| 9S1354 | 15 NUT (5/8-18-THD) | 1 | |
| 6F0253 | LOCKWASHER | 1 | |
| 2A4576 | 16 CUP-BEARING (TAPERED ROLLER) | 2 | |
| 5L9656 | CONE-BEARING (TAPERED ROLLER) | 2 | |
| 5L9648 | 17 RETAINER-BEARING | 1 | |
| 4B4775 | 18 HOSE AS | 1 | |
| 2H3755 | 19 BOLT (5/16-18X0.43-IN) | 1 | |
| 3F9556 | LOCKWASHER | 1 | |
| 7L0116 | 20 LOCK | 1 | |
| 5B6159 | SETSCREW-POINT | 1 | |
| 5N6094 | 21 SHAFT-CLUTCH | 1 | |
| 5L9647 | 22 SLEEVE-SLIDING | 1 | |
| 5B5251 | 23 LINK | 6 | |
| 6L3965 | PIN | 6 | |
| 3B4613 | PIN-COTTER | 6 | |
| 2L8262 | 24 RING-ADJUSTMENT | 1 | |
| 2L8259 | 25 LEVER | 3 | |
| 6L3966 | 26 PIN | 3 | |
| 3B5301 | PIN-COTTER | 3 | |
| 3N7953 | 27 PLATE AS | 1 | |
| 3N7955 | 28 SPRING | 1 | |
| 3N7954 | 29 LOCK PIN | 1 | |
| 5L2012 | 30 PLATE-CENTER | 1 | |
| 1K2811 | 31 COLLAR AS | 1 | |
| 0L0369 | BOLT | 2 | |
| 2L6267 | LOCKNUT (3/8-24-THD) | 2 | |
| 1K3621 | SHIM | 2 | |
| 1083561 | 32 PLATE-INSTRUCTION (POWER TAKE-OFF) | 1 | |
| 1H3338 | 33 LOCKWASHER | 2 | |
| 1S7443 | SCREW-MACHINE | 2 | |
| 1083560 | 34 PLATE-WARNING (POWER TAKE-OFF) | 1 |
