System And Components

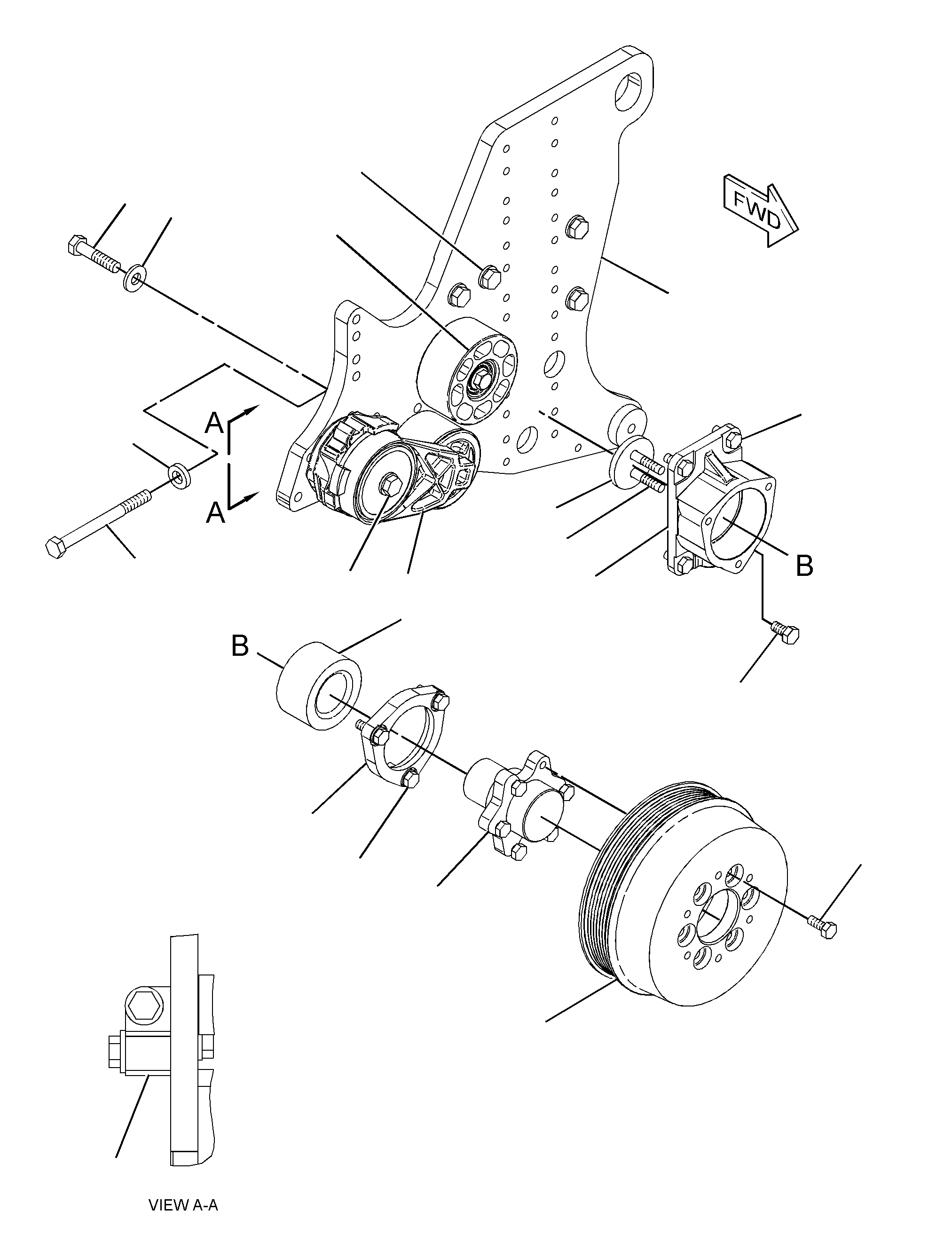

249-1007 DRIVE GP-FANFOR USE WITH POLY-VEE CRANK PULLEY, 11.1 INCH FAN DRIVE HEIGHT WITH 1:1 PULLEY RATIO
Group No: 249-1007 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1117238 | 1 PLATE (THRUST) | 1 | |
| 1230856 | 2 SHAFT-FAN | 1 | |
| 1253722 | 3 PULLEY-FAN | 1 | |
| 2534525 | 4 IDLER GP-BELT (FAN DRIVE) | 1 | |
| 1887756 | 5 BLOCK | 1 | |
| 3079798 | 6 BEARING AS | 1 | |
| 2201209 | 7 BELT TENSIONER | 1 | |
| 2249652 | 8 SUPPORT AS | 1 | |
| 2267914 | 9 BRACKET (FAN BEARING) | 1 | |
| 2285827 | 10 RETAINER-BEARING | 1 | |
| 3E4353 | 11 WASHER-HARD (11X25X3-MM THK) | 1 | |
| 4S9191 | 12 WASHER (12X22.5X5-MM THK) | 1 | |
| 6V3822 | 13 BOLT (M10X1.5X35-MM) | 5 | |
| 6V3940 | 14 BOLT (M8X1.25X25-MM) | 3 | |
| 6V5215 | 15 BOLT (M8X1.25X16-MM) | 1 | |
| 6V5217 | 16 BOLT (M8X1.25X20-MM) | 9 | |
| 6V5219 | 17 BOLT (M8X1.25X40-MM) | 2 | |
| 6V5839 | 18 WASHER (11X21X2.5-MM THK) | 5 | |
| 6V5843 | 19 BOLT (M10X1.5X45-MM) | 1 | |
| 8T0355 | 20 BOLT (M10X1.5X110-MM) | 1 | |
| 8T4121 | 21 WASHER-HARD (11X21X2.5-MM THK) | 1 | |
| 8T4172 | 22 BOLT (M10X1.5X80-MM) | 1 | |
| 9M1974 | 24 WASHER-HARD (8.8X16X2-MM THK) | 3 |
