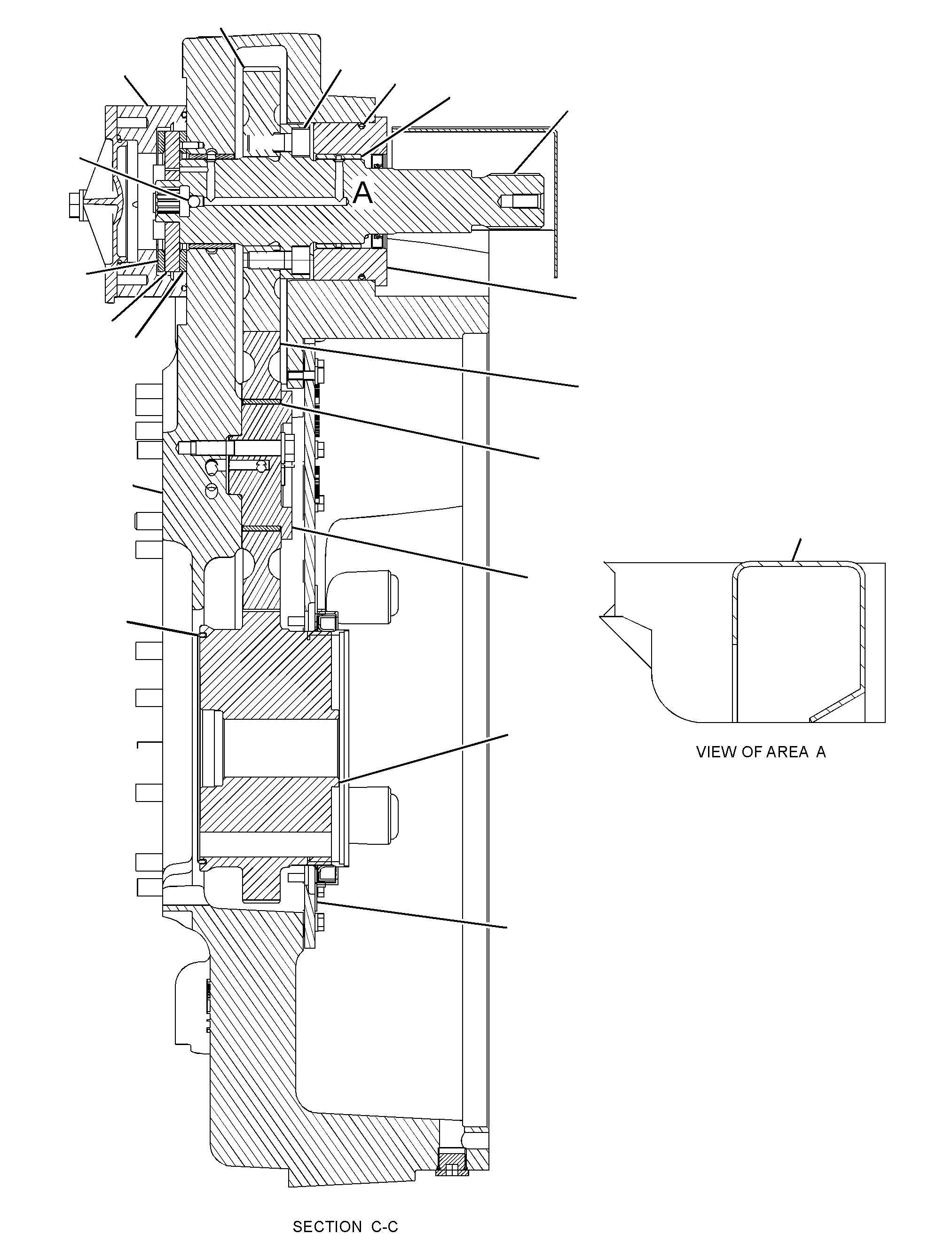

213-8086 GEAR GP-REAR1.15 DRIVE RATIO

Group No: 213-8086 · Commonality
Part NumberPart NameQty
1T08081 WASHER (0.516X0.812X0.09-IN THK)3
4P36472 GEAR AS (43-TEETH)1
9M24182A BUSHING1
4P41783 WASHER-THRUST1
4P41814 WASHER-THRUST1
7C14455 COVER1
9X20226 BOLT-SELF-LOCKING (M6X1X20-MM)23
48583237 GEAR-CRANKSHAFT (46-TEETH)1
10952908 CARRIER AS-BEARING1
5S85438A BUSHING1
10952929 SHAFT-IDLER GEAR1
142420510 GEAR (40-TEETH)1
145661711 ADAPTER AS1
3F6795DOWEL1
163935812 GASKET1
213808713 HOUSING AS1
3F679513A DOWEL6
5S854313B BUSHING1
213808914 SHAFT AS1
4B988014A BALL1
213809015 PLATE1
226475717 SEAL GP-CRANKSHAFT1
7C1728SEAL-CRANKSHAFT (REAR)1
1076280SEAL-O-RING1
061945518 SEAL-O-RING1
228172621 COVER1
3E676822 SEAL-LIP TYPE1
5P824524 WASHER-HARD (13.5X25.5X3-MM THK)11
6V119725 SEAL-O-RING1
6V394026 BOLT (M8X1.25X25-MM)4
309513027 PLUG AS1
2147566SEAL-O-RING1
9S4182PLUG (7/16-20-THD)1
389370828 PLUG AS2
2147568SEAL-O-RING1
3603679PLUG-CONNECTOR (9/16-18-THD)1
6V513429 SEAL-O-RING1
6V519230 BOLT-SOCKET HEAD (M8X1.25X30-MM)6
6V523031 BOLT (M10X1.5X60-MM)2
6V583932 WASHER (11X21X2.5-MM THK)2
6V767334 BOLT (M12X1.75X50-MM)2
6V819735 BOLT (M12X1.75X40-MM)9
7X087037 BOLT (M8X1.25X140-MM)2
8T027339 BOLT-SOCKET HEAD (M12X1.75X40-MM)3
8T395740 BOLT-SOCKET HEAD (M12X1.75X30-MM)8
9M197441 WASHER-HARD (8.8X16X2-MM THK)6
389372842 PLUG AS1
2385084SEAL-O-RING1
3603684PLUG1
307267344 PLUG AS3
9S8005PLUG (3/4-16-THD)1
2385080SEAL-O-RING1
485378846 SEAL-FACE1
9X728747 SEAL-O-RING1
1U884649 SEALANT-GASKET
9X826750 WASHER (6.6X12X2-MM THK)23
