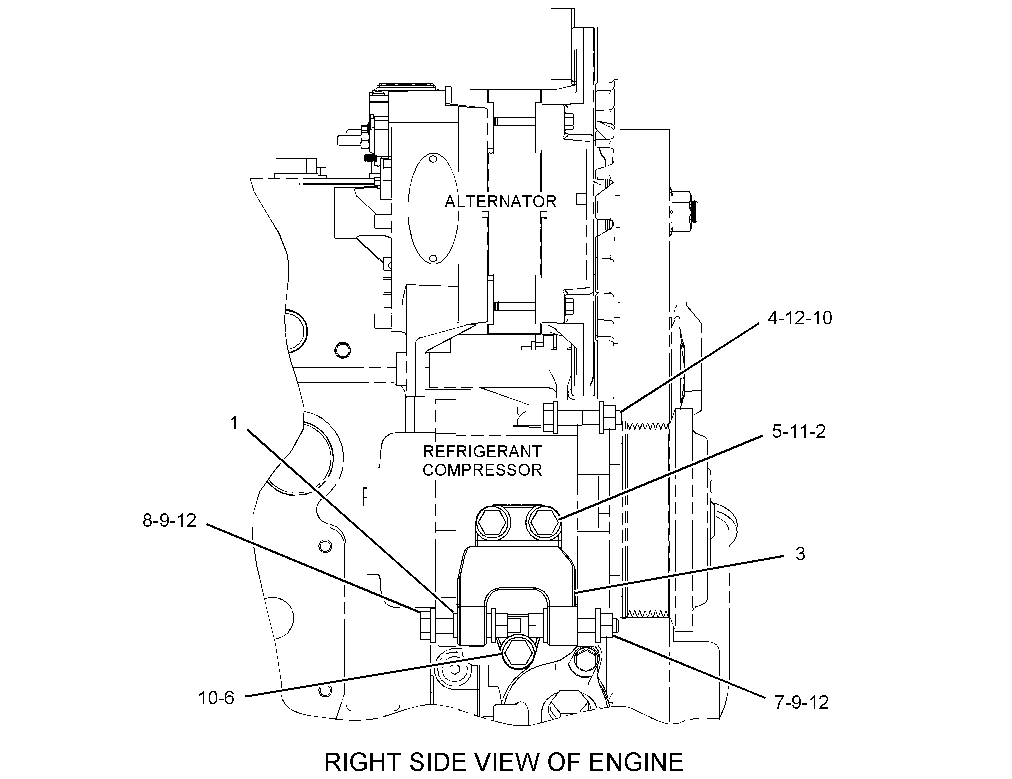

Assembly
100%

290-9773 MOUNTING GP-REFRIGERANT COMPRFOR USE WITH POLY-VEE CONFIGURATION

Group No: 290-9773 · Commonality
Part NumberPart NameQty
7E34431 BUSHING-TERMINAL1
21121012 SLEEVE (SPLIT)2
24149593 SUPPORT1
8T41824 BOLT (M10X1.5X45-MM)1
6V38225 BOLT (M10X1.5X35-MM)2
6V18206 BOLT (M10X1.5X30-MM)1
10173967 BOLT-SOCKET HEAD (M10X1.5X50-MM)1
8T64668 BOLT (M10X1.5X60-MM)1
5P10759 WASHER-HARD (10.2X22.5X3-MM THK)4
6V583910 WASHER (11X21X2.5-MM THK)3
8T412111 WASHER-HARD (11X21X2.5-MM THK)2
8T413312 NUT (M10X1.5-THD)3
