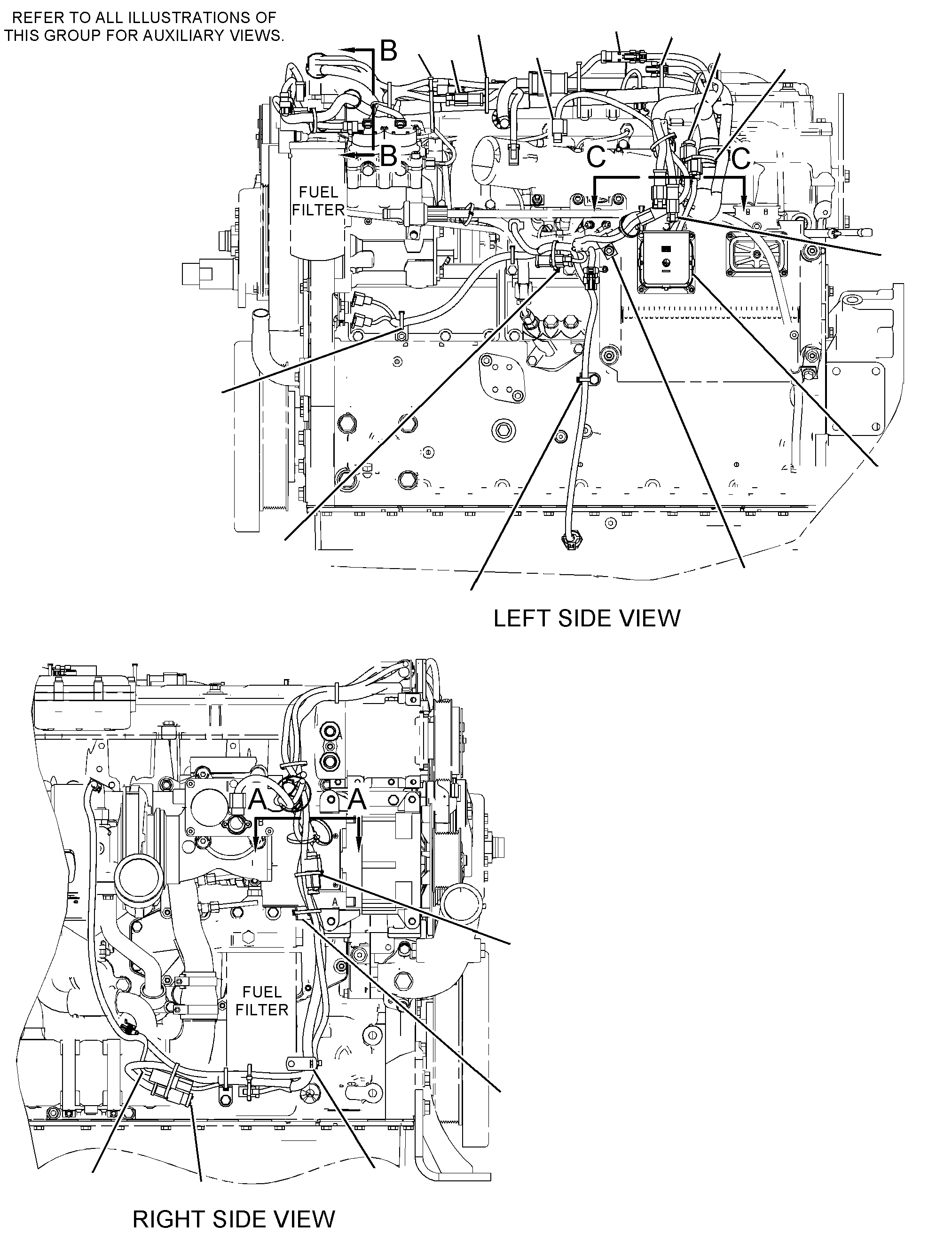

Assembly
100%

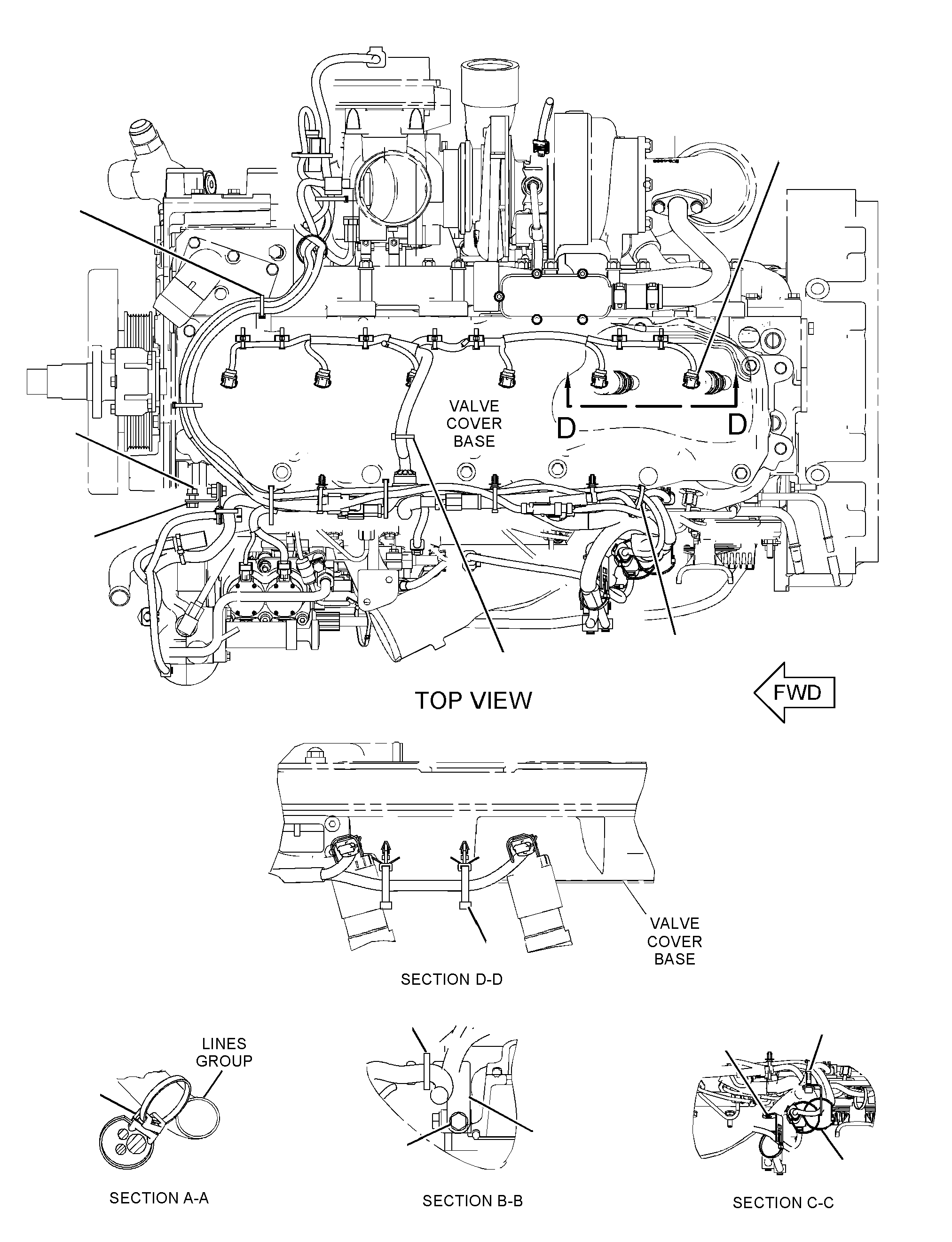

274-4326 WIRING GP-ENGINE ELECTRONICS/N C7S202-UP

Group No: 274-4326
Part NumberPart NameQty
3S20931 STRAP-CABLE11
4P59182 CLIP1
10517973 MOUNT7
18991084 HARNESS AS-SENSOR (FUEL TEMPERATURE)1
1028802KIT-RECEPTACLE (2-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
20613455 STRAP-CABLE3
20624236 SADDLE-MOUNTING1
22397977 BRACKET AS1
22492228 BRACKET1
27149239 PLUG AS-CONNECTOR1
272339810 HARNESS AS-SENSOR (ELECTRONIC CONTROL MODULE)1
1028802KIT-RECEPTACLE (2-PIN)1
1028804KIT-RECEPTACLE (4-PIN)1
1028805KIT-RECEPTACLE (6-PIN)1
1028801KIT-RECEPTACLE (12-PIN)2
1003320PLUG AS-CONNECTOR (2-PIN)1
1112416PLUG AS-CONNECTOR (2-PIN)1
1552255KIT-CONNECTING PLUG (12-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)4
1552274KIT-CONNECTING PLUG (6-PIN)1
1740503KIT-CONNECTING PLUG (3-PIN)1
1779645KIT-RECEPTACLE (2-PIN)1
2304011PLUG AS-CONNECTOR (2-PIN)6
2304013PLUG AS-CONNECTOR (3-PIN)4
2305008PLUG AS-CONNECTOR (4-PIN)1
2370227PLUG AS-CONNECTOR (3-PIN)2
2645732PLUG AS-CONNECTOR (120-PIN)1
273733111 PLUG AS1
8T8737PLUG-SEAL4
1552271KIT-CONNECTING PLUG (4-PIN)1
274161512 HARNESS AS-ENGINE (FUEL INJECTION)1
1552255KIT-CONNECTING PLUG (12-PIN)1
274639313 HARNESS AS-SWITCH (TURBOCHARGER)1
275874014 HARNESS AS-SENSOR (TURBOCHARGER SPEED)1
2175888PLUG AS-CONNECTOR (3-PIN)1
276218415 HARNESS AS-SENSOR (AIR INLET MANIFOLD TEMPERATURE)1
2304011PLUG AS-CONNECTOR (2-PIN)1
280104016 CABLE AS1
1330970RECEPTACLE AS-CONNECTOR (3-PIN)3
1743016PLUG AS-RESISTOR (3-PIN, 120 OHM)1
132578917 CLIP (LADDER)5
149912918 CLIP (LOOP)1
3E435219 WASHER-HARD (8.8X20.5X2.5-MM THK)1
5P797020 NUT (M8X1.25-THD)2
6V231721 BOLT (M8X1.25X30-MM)1
6V521722 BOLT (M8X1.25X20-MM)4
7K118123 STRAP-CABLE25
9M197424 WASHER-HARD (8.8X16X2-MM THK)6
