System And Components

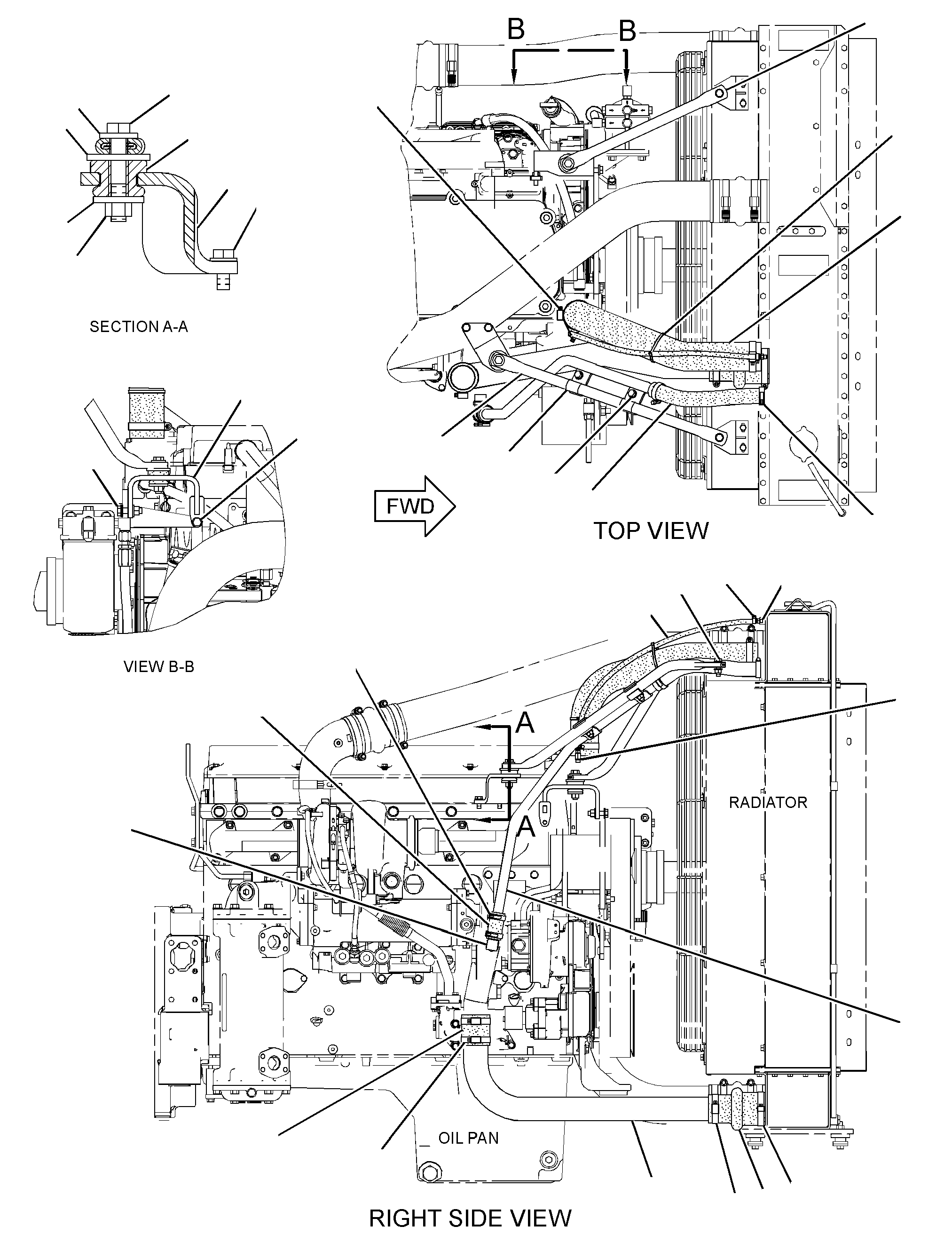

Assembly
100%

307-6792 LINES GP-WATERS/N PBY1-UP

Group No: 307-6792
Part NumberPart NameQty
1P42781 CLAMP-HOSE2
1P93282 FITTING2
2P78463 HOSE1
3S20934 STRAP-CABLE2
5P05985 CLAMP-HOSE1
5P29376 ADAPTER-O-RING1
5P48687 CLAMP-HOSE5
8D37868 MOUNTING2
06847729 HOSE1
286499410 BRACKET AS1
286499511 BRACKET1
286499812 TUBE1
308063413 HOSE1
308063714 TUBE1
308587215 BRACE AS (LH)1
308587316 BRACE AS (RH)1
3E404117 ELBOW1
5M708718 CLAMP-TUBE4
5P107619 WASHER-HARD (13.5X30X4-MM THK)2
6V506320 SEAL-O-RING1
6V902721 SEAL-O-RING1
7X061822 WASHER-HARD (13.5X40X5-MM THK)2
8T111723 CLAMP-HOSE4
8T412124 WASHER-HARD (11X21X2.5-MM THK)11
8T413325 NUT (M10X1.5-THD)4
8T413626 BOLT (M10X1.5X25-MM)3
8T418427 BOLT (M12X1.75X45-MM)1
8T418628 BOLT (M10X1.5X40-MM)4
8T422329 WASHER-HARD (13.5X25.5X3-MM THK)2
8T424430 NUT (M12X1.75-THD)3
8T464831 BOLT (M12X1.75X70-MM)2
8T489532 WASHER (13.5X50X5-MM THK)2
5P125133 HOSE (29.4-CM)
5P125133A HOSE (7-CM)
5P644234 HOSE (65.8-CM)
