System And Components

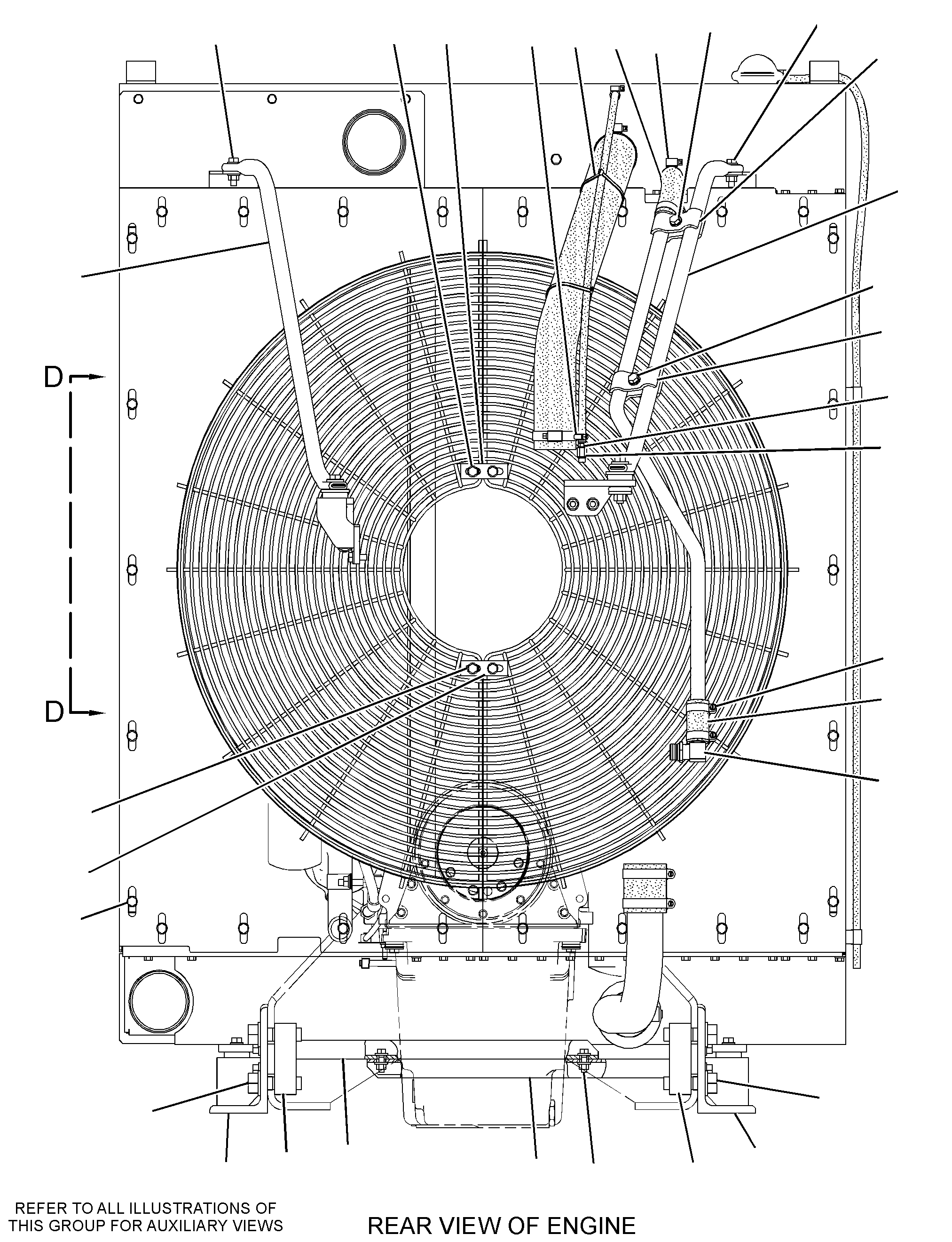

Assembly
100%

316-0489 RADIATOR GPS/N LGK1-12189

Group No: 316-0489

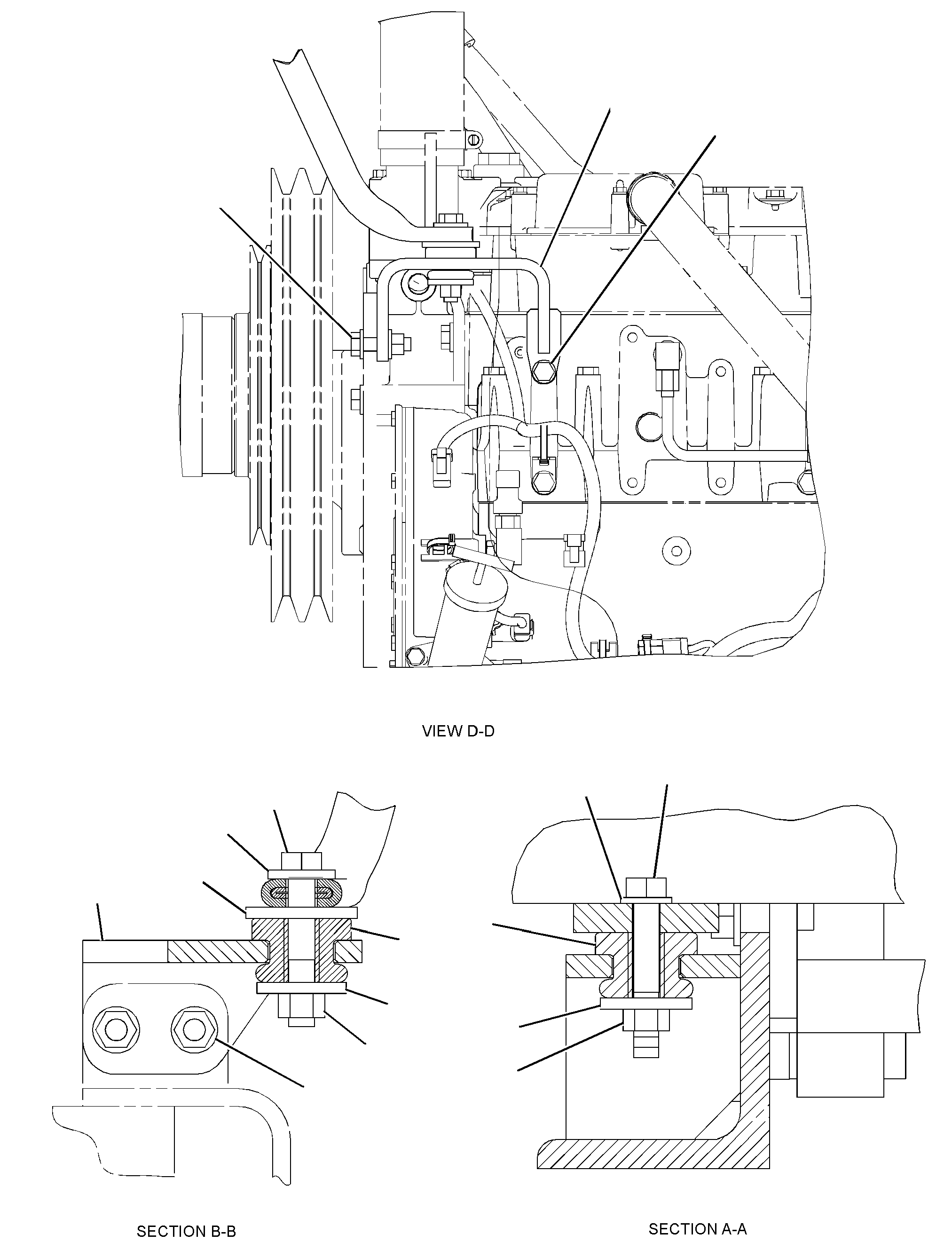

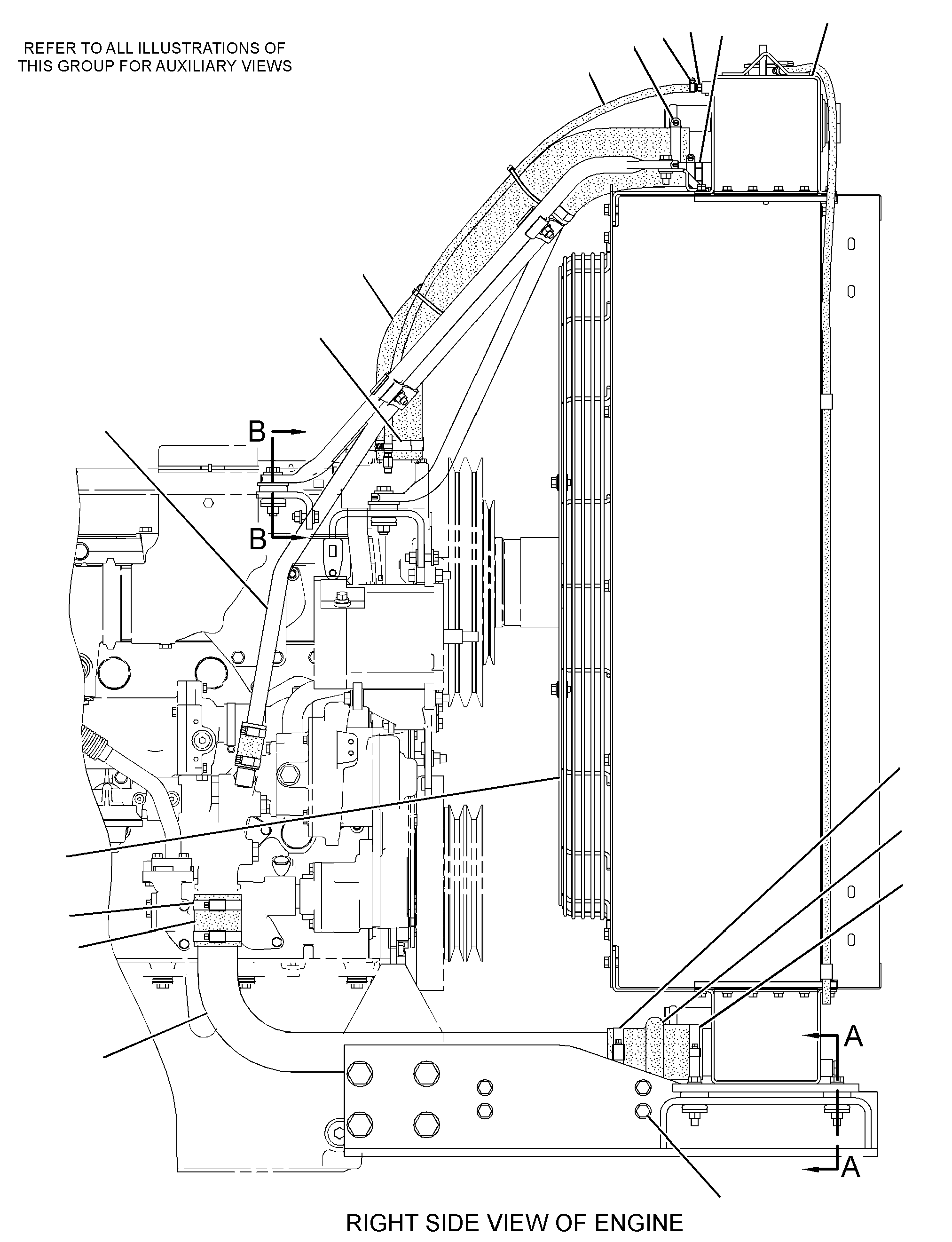

Part NumberPart NameQty
1P42781 CLAMP-HOSE2
1P93282 FITTING2
2P78463 HOSE1
3E40414 ELBOW1
3S20935 STRAP-CABLE2
4L57576 STRAP2
5P29377 ADAPTER-O-RING1
5P48688 CLAMP-HOSE5
7N46009 BRACE AS2
8D378610 MOUNTING2
8T111711 CLAMP-HOSE4
005427312 CONNECTOR-HOSE1
068477213 HOSE1
186071214 PLATE4
228267415 RADIATOR GP1
228989916 GUARD AS-FAN2
1F0750NUT-WELD (3/8-16-THD)2
286499217 SUPPORT AS1
286499318 SUPPORT AS1
286499419 BRACKET AS1
286499620 BRACE AS1
286499721 BRACE AS1
286499822 TUBE1
286499923 HOSE1
286500524 TUBE1
316049025 BRACKET-RADIATOR1
5M306226 BOLT (3/8-16X0.75-IN)26
5M708727 CLAMP-TUBE4
5P059828 CLAMP-HOSE1
5P107529 WASHER-HARD (10.2X22.5X3-MM THK)12
5P107630 WASHER-HARD (13.5X30X4-MM THK)2
5S737931 BOLT (3/8-16X0.875-IN)4
6V506332 SEAL-O-RING1
6V880133 NUT (3/8-16-THD)6
6V902734 SEAL-O-RING1
7T833235 MOUNTING4
7X031336 BOLT (7/16-14X2.75-IN)4
7X038437 BOLT (7/8-9X3-IN)8
7X044738 NUT (7/16-14-THD)4
7X061839 WASHER-HARD (13.5X40X5-MM THK)6
8C443640 BOLT (1/2-13X1.375-IN)8
8C691341 WASHER-HARD (24X41.5X4-MM THK)8
8T412142 WASHER-HARD (11X21X2.5-MM THK)13
8T413343 NUT (M10X1.5-THD)6
8T413644 BOLT (M10X1.5X25-MM)1
8T418445 BOLT (M12X1.75X45-MM)1
8T418646 BOLT (M10X1.5X40-MM)4
8T419647 BOLT (M10X1.5X35-MM)2
8T422348 WASHER-HARD (13.5X25.5X3-MM THK)10
8T424449 NUT (M12X1.75-THD)3
8T464850 BOLT (M12X1.75X70-MM)2
8T489551 WASHER (13.5X50X5-MM THK)2
8T489652 WASHER-HARD (10.2X18.5X2.5-MM THK)30
8T536053 WASHER (12X22.5X2.5-MM THK)4
9B723754 BOLT (3/8-16X1.25-IN)6
5P125155 HOSE (24.5-CM)
5P125155A HOSE (7.5-CM)
5P644256 HOSE (83.7-CM)84
