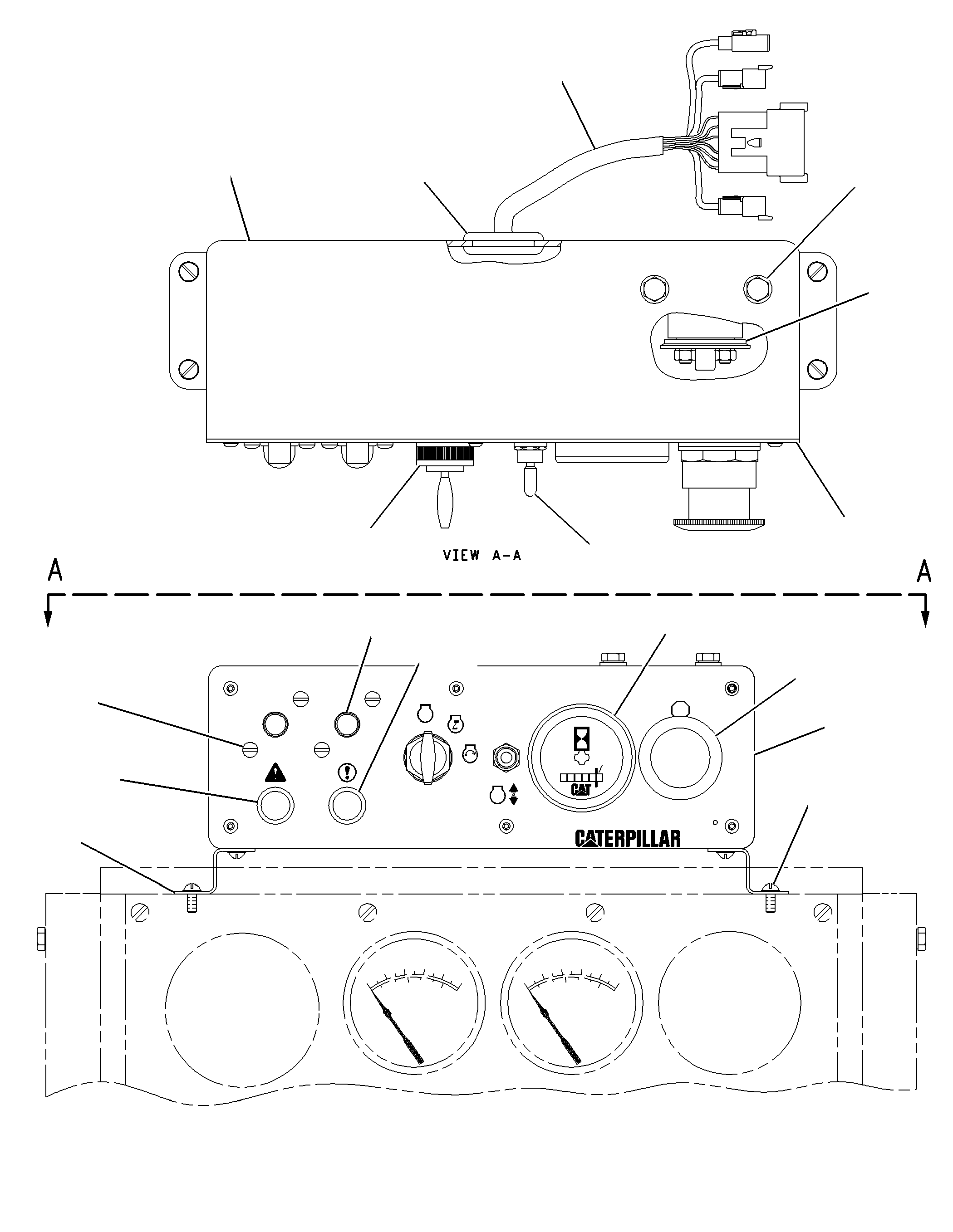

195-1345 CONTROL GP-AUTO START/STOPS/N LGK1-UP

Group No: 195-1345
Part NumberPart NameQty
9W14941 KIT-SERVICE METER (24-VOLT)(INSTRUMENT PANEL)1
11113252 BLOCK-CONTACT (2-POLE)1
10965073 SWITCH AS-PUSH BUTTON (SECONDARY STOP)1
3E01564 SWITCH GP-START (IGNITION)1
6V8362SCREW-MACHINE (8-32X0.31-IN)1
7T6799NUT-MOUNTING (1-32-THD)1
9B7233LOCKWASHER1
2N23715 LAMP AS-INDICATOR (RED)1
2V7088LENS-RED (INDICATOR)1
6V8367LOCKWASHER1
6V8382NUT-HEX (11/16-27-THD)1
6V8817SCREW-MACHINE (4-36X4.76-IN)2
6T36436 CIRCUIT BREAKER AS (15-AMPERE)2
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
12513027 SWITCH GP-MAGNETIC (24-VOLT)(STARTING MOTOR)1
19513449 HARNESS AS-WIRING (AUTO START/STOP CONTROL)1
1028805KIT-RECEPTACLE (6-PIN)1
1275486RECEPTACLE AS-CONNECTOR (1-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
3K952010 GROMMET1
8T420511 WASHER-HARD (7.2X14.5X2-MM THK)4
6V818512 NUT (1/4-20-THD)2
4M528113 BOLT (1/4-20X0.75-IN)2
110788414 SWITCH AS-TOGGLE (MOMENTARY)(SPEED CONTROL)1
3L8187LOCKWASHER3
6T3631NUT-HEX (15/32-32-THD)2
6T3632LOCKWASHER1
6T3633RING-LOCKING1
6V8374SCREW-MACHINE (6-32X0.25-IN)3
137213315 PLATE1
137211316 ENCLOSURE1
5P850017 KEY (IGNITION)1
137513518 BRACKET2
9F812519 LOCKWASHER8
4B123720 SCREW-MACHINE (10-32X12.7-MM)8
3E803521 SCREW-MACHINE4
7N587622 LAMP (24-VOLT, 0.2-AMPERE)2
141922823 LAMP AS (INDICATOR)1
2V7087LENS-AMBER (INDICATOR)1
6V8367LOCKWASHER1
6V8382NUT-HEX (11/16-27-THD)1
6V8817SCREW-MACHINE (4-36X4.76-IN)2
142224524 FILM-CONTROL PANEL1
