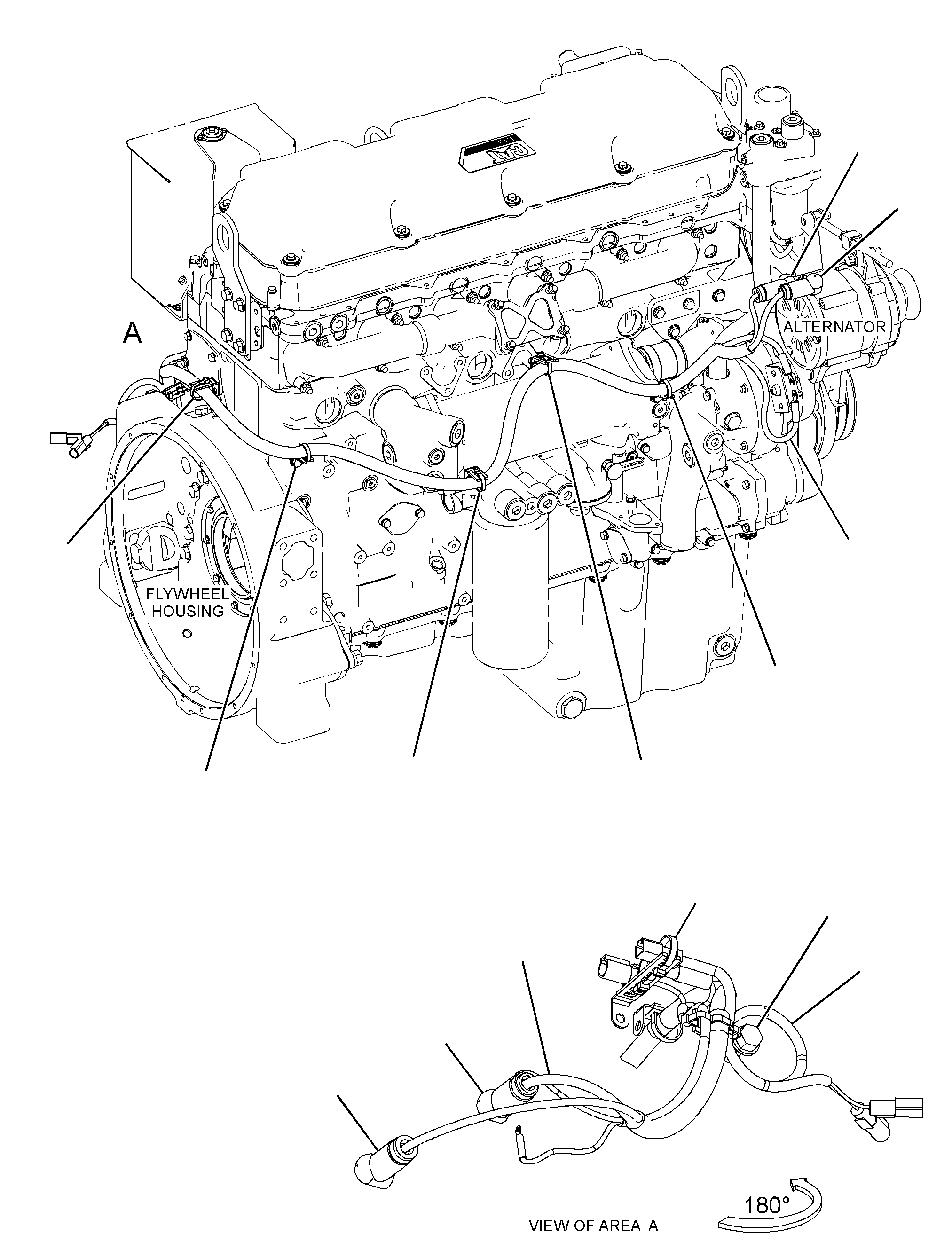

Assembly
100%

361-0204 WIRING GP-ALTERNATORS/N LGK1-UP

Group No: 361-0204
Part NumberPart NameQty
7K11811 STRAP-CABLE14
8N08692 COVER-TERMINAL (RED)2
9G89093 COVER-TERMINAL (BLACK)2
23552644 HARNESS AS-WIRING (BATTERY)1
23552655 HARNESS AS-WIRING (START RELAY)1
36102066 HARNESS AS-POWER1
5C62667 BOLT (5/8-11X1-IN)1
10462028 CLIP (LADDER)1
13257899 CLIP (LADDER)4
277187310 CLIP (LADDER)1
4P758211 CLIP (LADDER)1
6V821012 BOLT (M8X1.25X16-MM)2
8T412213 WASHER-HARD (17X32X3.5-MM THK)1
8T413714 BOLT (M10X1.5X20-MM)1
8T419215 BOLT (M12X1.75X25-MM)1
8T422316 WASHER-HARD (13.5X25.5X3-MM THK)1
8T422417 WASHER-HARD (8.8X16X2-MM THK)2
8T489618 WASHER-HARD (10.2X18.5X2.5-MM THK)1
290199319 STRAP-CABLE1
