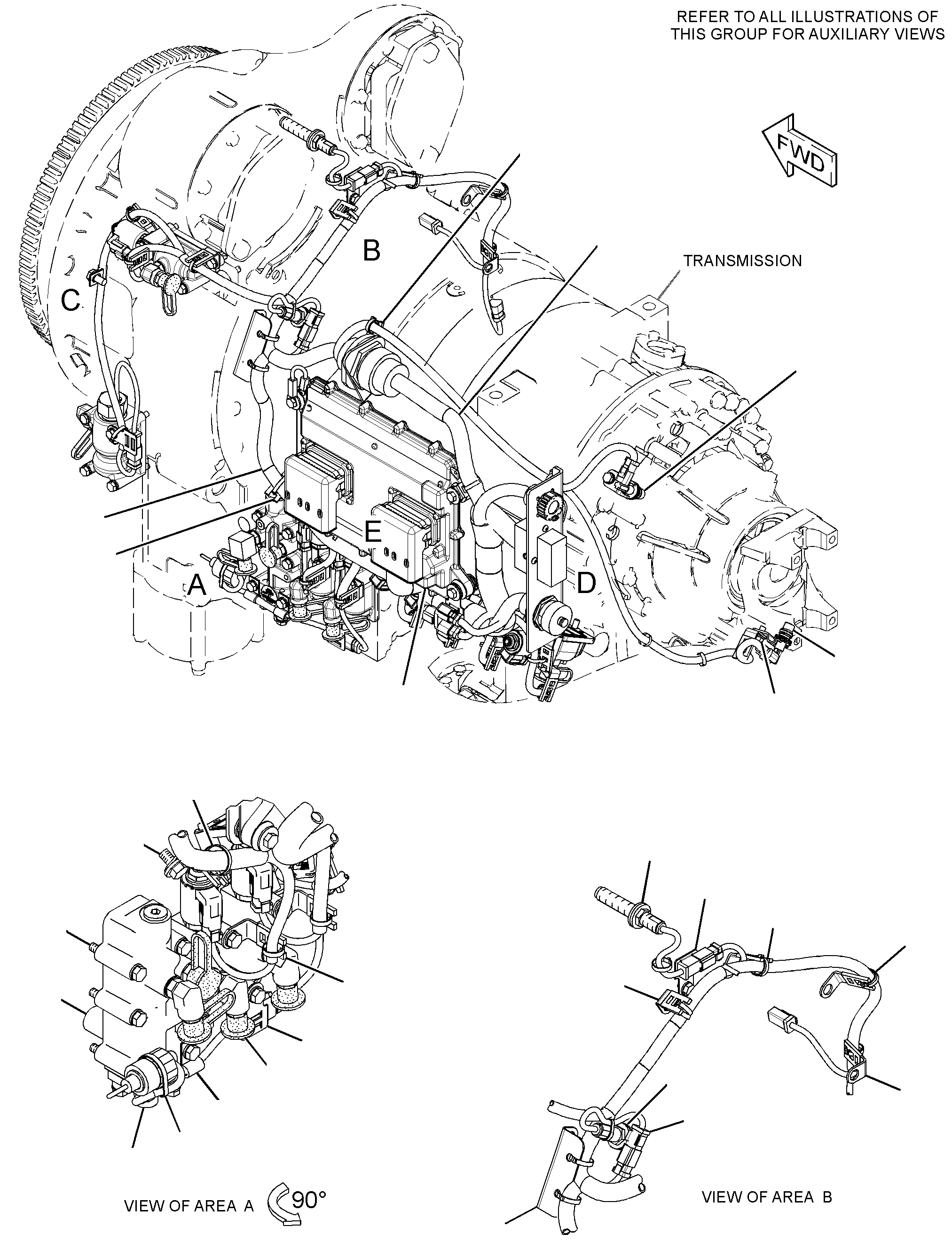

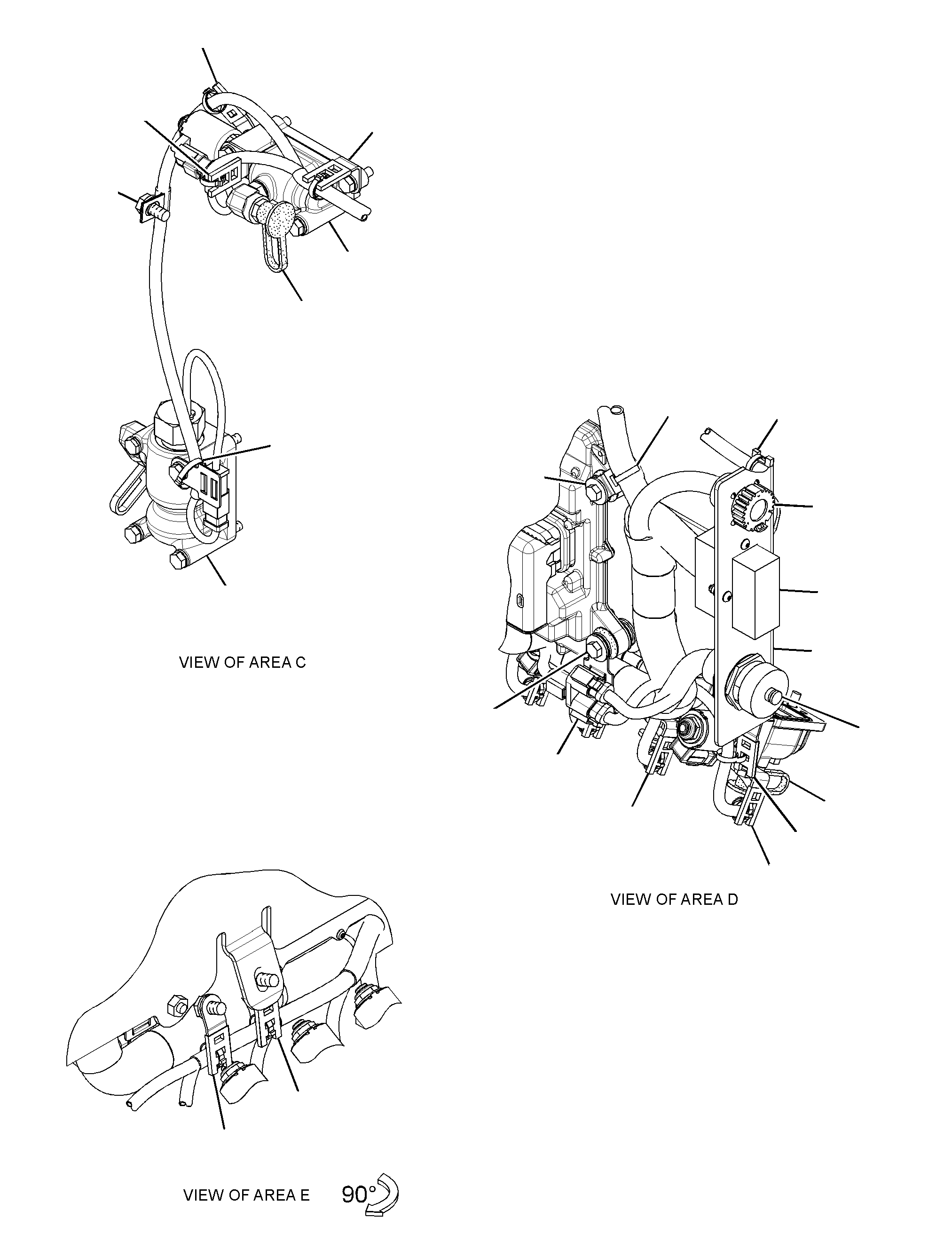

286-0447 CONTROL GP-TRANSMISSION HYD -8-SPEEDS/N SMS1-469

Group No: 286-0447
Part NumberPart NameQty
1V63411 SEAL2
2H61842 SEAL-O-RING1
2P16923 SEAL-O-RING1
3S20934 STRAP-CABLE34
6I14185 SPACER (8.2X12.7X28.7-MM THK)4
6V04846 ELBOW3
6V08527 CAP-DUST7
8S07688 SEAL-O-RING7
8T70009 SEAL1
124940110 CLIP (TAB)1
134225211 SENSOR GP-TEMPERATURE (8-VOLT)(TRANSMISSION LUBRICATION OIL)1
180317812 VALVE GP-RELIEF (TORQUE CONVERTER INLET)1
183935813 PLATE1
189574614 SENSOR GP-SPEED (TRANSMISSION INPUT)1
190545015 BRACKET1
191830516 SENSOR GP-SPEED (TRANSMISSION OUTPUT)2
1330261BRACKET1
1376645PAD-CONNECTOR1
193042117 SENSOR GP-SPEED (TORQUE CONVERTER OUTPUT)1
199969018 VALVE GP-RELIEF (TRANSMISSION HYDRAULIC CONTROL)1
209663219 VALVE GP-BYPASS (TRANSMISSION OIL FILTER)1
244777220 VALVE GP-MODULATING7
304568721 CONTROL GP-UNPROGRAMMED (TRANSMISSION)1
283015822 BRACKET AS1
7T1099LINK2
8T3612NUT-WELD (M8X1.25-THD)4
286253523 HARNESS AS-TRANSMISSION1
7G7917PLUG-SEAL12
8N1513RECEPTACLE AS-CONNECTOR (37-PIN)1
8N1522NUT (2-1/4-16-THD)1
8N1521BELL AS-END1
8N1523LOCKWASHER1
1863736SOCKET-CONNECTOR (16-GA TO 18-GA)28
9X6772STRAP-CABLE1
9X6856PIN-CONNECTOR (16-GA TO 18-GA)25
1148843SLEEVE-PLASTIC (300-CM)
1193662TUBE-HEAT SHRINK (10.85-MM DIA)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)
1552260KIT-CONNECTING PLUG (3-PIN)2
1552270KIT-CONNECTING PLUG (2-PIN)13
1945226TERMINAL AS (16-GA)4
1945227TERMINAL AS (14-GA)4
304901624 HARNESS AS-TRANSMISSION1
3S2093STRAP-CABLE4
5P6001TUBE-HEAT SHRINK (4.75-MM DIA)
7G7917PLUG-SEAL15
8N1514PLUG AS-CONNECTOR (37-PIN)1
8N1521BELL AS-END1
8N1534RECEPTACLE AS-CONNECTOR (20-PIN)
8N1536NUT (1-5/8-18-THD)1
8N1535BELL AS-END1
8N1537LOCKWASHER1
1863735PIN-CONNECTOR (16-GA TO 18-GA)7
8T8737PLUG-SEAL63
9W1951RECEPTACLE AS-CONNECTOR (9-PIN)1
9X6772STRAP-CABLE2
9X6856PIN-CONNECTOR (16-GA TO 18-GA)17
9X6857SOCKET-CONNECTOR (16-GA TO 18-GA)25
9X7148RECEPTACLE AS-CONNECTOR (40-PIN)1
1148845SLEEVE-PLASTIC (20-CM)
1193662TUBE-HEAT SHRINK (10.85-MM DIA)
1257876TUBE-HEAT SHRINK (17.78-MM DIA)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)79
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)79
1261774COVER-CONNECTOR2
9X3401PIN-CONNECTOR (16-GA TO 18-GA)40
1261767PIN-CONNECTOR (14-GA TO 16-GA)40
1471445PLUG AS-CONNECTOR (70-PIN)1
1599322SEAL-O-RING1
1471446PLUG AS-CONNECTOR (70-PIN)1
1599322SEAL-O-RING1
096596225 WASHER-HARD (3.4X7X0.8-MM THK)4
117138526 SEAL-O-RING2
130530027 CLIP3
132578928 CLIP (LADDER)11
133097029 RECEPTACLE AS-CONNECTOR (3-PIN)1
142292830 LOCKNUT (4-40-THD)4
200113131 SCREW-TRUSS HEAD (M4X0.7X20-MM)4
204610232 WASHER-HARD (4.45X9.52X1-MM THK)4
3E435333 WASHER-HARD (11X25X3-MM THK)3
4B122634 SCREW-MACHINE (10-24X6.35-MM)1
4P742935 CLIP (LADDER)4
4P758136 CLIP (LADDER)7
4S919137 WASHER (12X22.5X5-MM THK)1
5P834738 BOLT (M8X1.25X70-MM)8
5P908539 CLIP (LOOP)3
5S424540 SCREW-MACHINE (4-40X0.5-IN)4
6V231641 BOLT (M8X1.25X12-MM)1
6V394042 BOLT (M8X1.25X25-MM)1
6V424843 BOLT (M10X1.5X25-MM)1
6V504944 SEAL-O-RING4
6V521545 BOLT (M8X1.25X16-MM)4
6V583946 WASHER (11X21X2.5-MM THK)4
6V631747 BOLT (M10X1.5X20-MM)4
6V845548 BOLT (M10X1.5X16-MM)1
8C635449 CAP-RECEPTACLE (ET CONNECTOR)1
8T010050 BOLT (M8X1.25X60-MM)16
8T265951 LOCKNUT (M4X0.7-THD)4
8T420152 BOLT-LOCKING (M10X1.5X20-MM)1
8T691253 BOLT (M8X1.25X50-MM)4
8T965554 MOUNT-ISOLATION8
9G436055 CAP-CONNECTOR1
9M197456 WASHER-HARD (8.8X16X2-MM THK)30
9N086957 WASHER-HARD (8.8X25.5X2-MM THK)10
9X460958 SEAL-O-RING1
9X826859 WASHER (17.5X30X3.5-MM THK)2
9X714760 PLUG AS-CONNECTOR (40-PIN)1
3E4367RING-RETAINING1
3E8557BOLT (M5X0.8X39.37-MM)1
9X3490SEAL-CONNECTOR (40-PIN)2
