System And Components

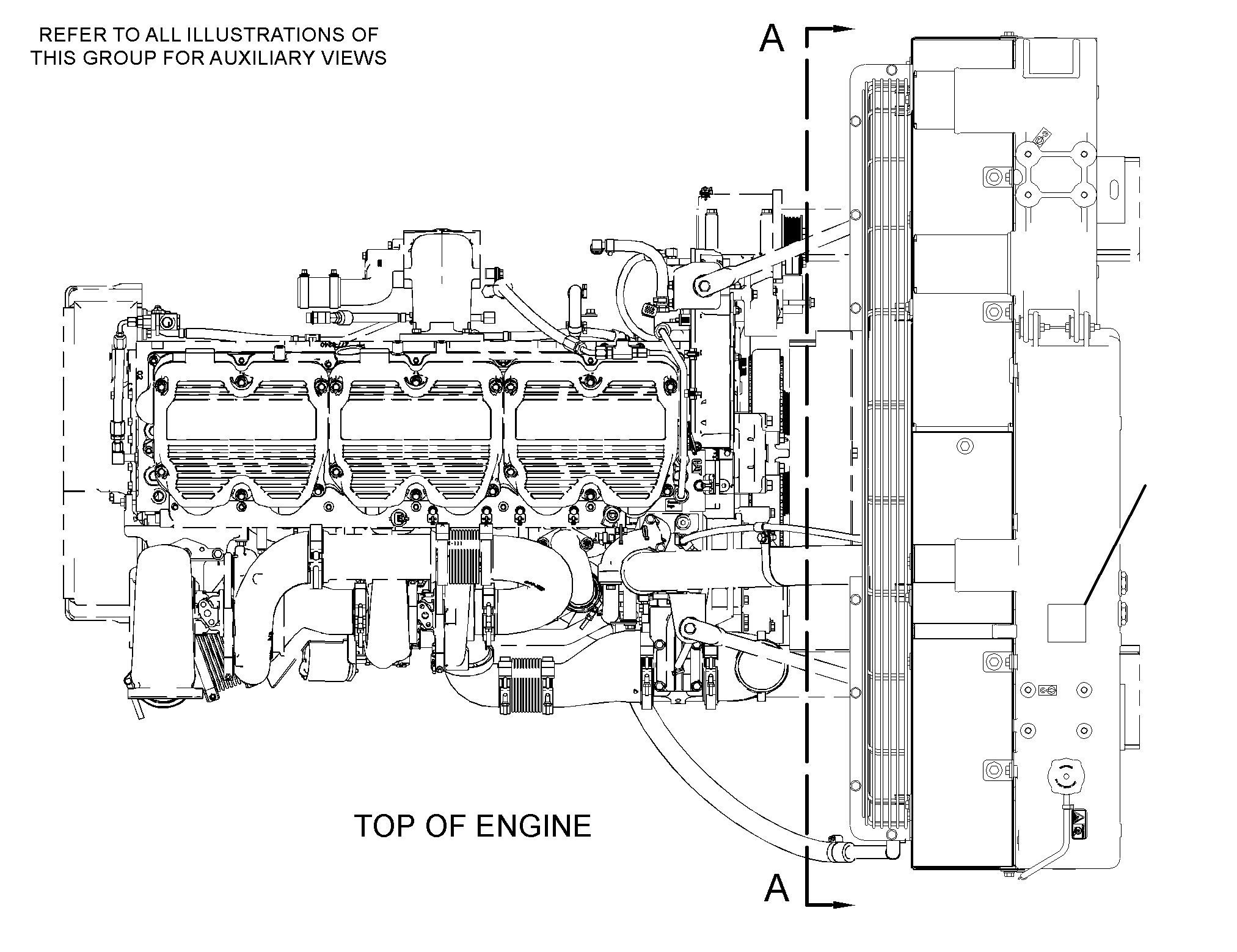

361-3096 RADIATOR & MOUNTING GPAN ATTACHMENT
Group No: 361-3096 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3650582 | 1 VALVE AS-SHUTOFF | 1 | |
| 6V6609 | SEAL-O-RING | 1 | |
| 6V7238 | VALVE-SHUTOFF | 1 | |
| 9L9251 | 2 CLIP | 4 | |
| 3048008 | 3 PLUG AS | 2 | |
| 6V9027 | SEAL-O-RING | 1 | |
| 9S8002 | PLUG (7/16-20-THD) | 1 | |
| 3569980 | 4 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 3569981 | 5 SHROUD AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 11 | |
| 3569982 | 6 SHROUD AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 9 | |
| 3569983 | 7 PLATE | 2 | |
| 4182230 | 8 GUARD AS-FAN | 1 | |
| 3613160 | 9 PLATE | 2 | |
| 4182231 | 10 GUARD AS-FAN | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 8 | |
| 3811721 | 11 RADIATOR GP | 1 | |
| 1423953 | 12 STUD (M10X1.5-THD) | 1 | |
| 4165294 | 13 FILM-IDENTIFICATION (COOLANT CONDITIONER, READ OMM) | 1 | |
| 8T4222 | 14 WASHER-PLATED (11X32X2.5-MM THK) | 18 | |
| 7X0503 | 15 WASHER-HARD (10.2X28.5X5-MM THK) | 9 | |
| 8T4121 | 16 WASHER-HARD (11X21X2.5-MM THK) | 20 | |
| 8T4136 | 17 BOLT (M10X1.5X25-MM) | 42 |
