System And Components

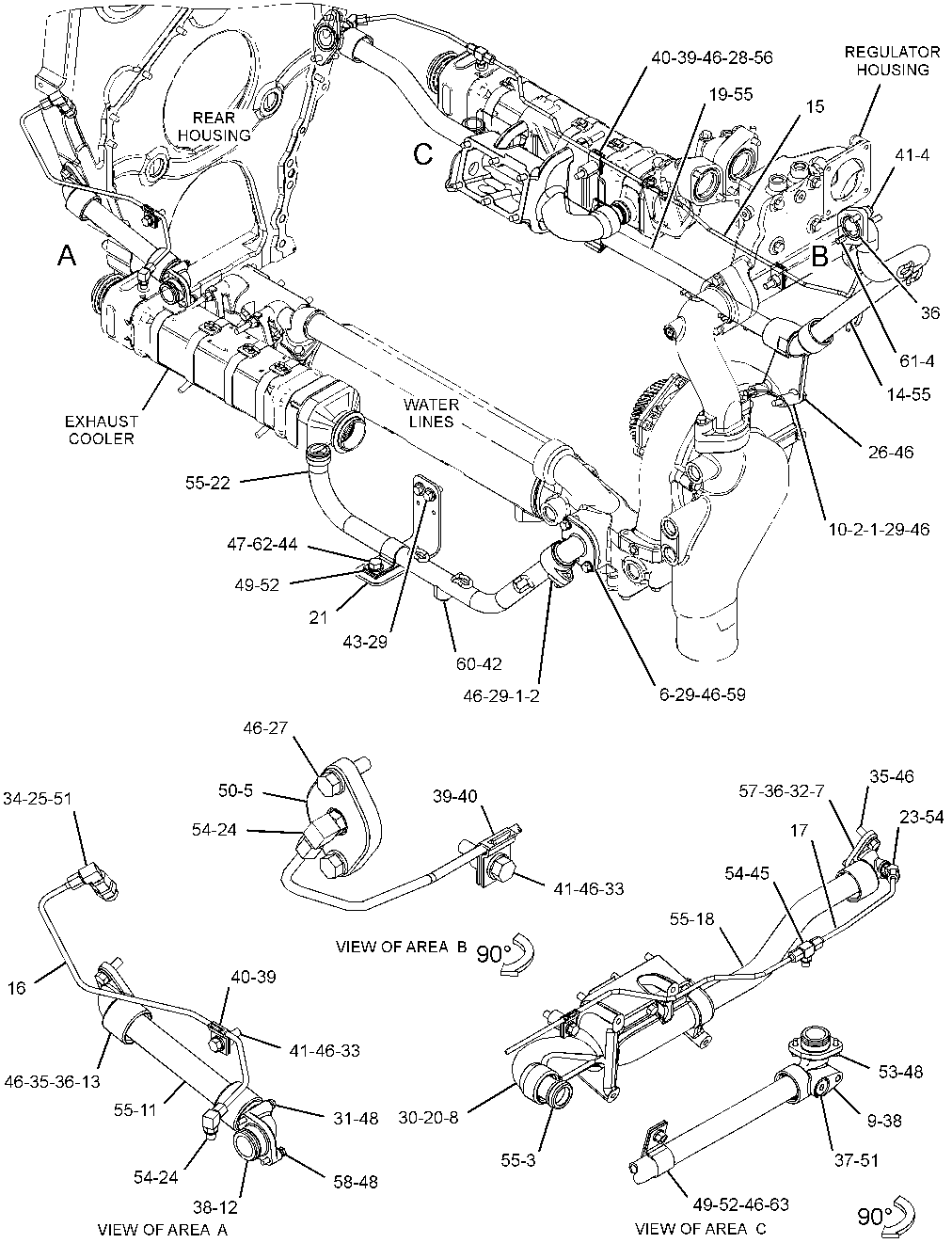

372-2676 LINES GP-WATERNRS COOLER
Group No: 372-2676
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1W7020 | 1 RING-RETAINING | 2 | |
| 2W4032 | 2 RETAINER | 2 | |
| 7C1822 | 3 COUPLING | 1 | |
| 8U4791 | 4 WASHER (11X21X8-MM THK) | 2 | |
| 3459911 | 5 COVER | 1 | |
| 3480381 | 6 ELBOW | 1 | |
| 3480382 | 7 ELBOW | 1 | |
| 3480384 | 8 BONNET | 1 | |
| 3480385 | 9 ELBOW | 1 | |
| 3480387 | 10 ELBOW | 1 | |
| 3480389 | 11 TUBE | 1 | |
| 3480390 | 12 ELBOW | 1 | |
| 3483467 | 13 ELBOW | 1 | |
| 3961705 | 14 TUBE AS | 1 | |
| 3627802 | 15 TUBE AS | 1 | |
| 3649175 | 16 TUBE AS-WATER | 1 | |
| 3656122 | 17 TUBE AS | 1 | |
| 3657535 | 18 TUBE | 1 | |
| 3961696 | 19 TUBE AS | 1 | |
| 3438888 | 20 GASKET | 1 | |
| 3643763 | 21 BRACKET | 1 | |
| 4167091 | 22 TUBE AS-WATER | 1 | |
| 0307941 | 23 ELBOW | 1 | |
| 0307946 | 24 ELBOW | 2 | |
| 0308188 | 25 CONNECTOR | 1 | |
| 0L1143 | 26 BOLT (3/8-16X2.5-IN) | 2 | |
| 0S1588 | 27 BOLT (3/8-16X1.25-IN) | 2 | |
| 0S1590 | 28 BOLT (3/8-16X2-IN) | 1 | |
| 0S1594 | 29 BOLT (3/8-16X1-IN) | 6 | |
| 0S1619 | 30 BOLT (3/8-16X3-IN) | 6 | |
| 1186503 | 31 BOLT (M6X1X55-MM) | 1 | |
| 1293172 | 32 STUD-MOUNTING (3/8-16X1.564-IN) | 1 | |
| 1333260 | 33 SPACER (11X19X10-MM THK) | 2 | |
| 1481740 | 34 ELBOW | 1 | |
| 1A2029 | 35 BOLT (3/8-16X1.125-IN) | 3 | |
| 2263571 | 36 SEAL-O-RING | 3 | |
| 2416205 | 37 PLUG | 1 | |
| 3551596 | 38 SEAL-O-RING | 2 | |
| 3630253 | 39 CLIP (TAB) | 3 | |
| 3630254 | 40 CLIP (SLOT) | 3 | |
| 3B1915 | 41 BOLT (3/8-16X1.375-IN) | 3 | |
| 6V3250 | 42 SEAL-O-RING | 1 | |
| 9X6458 | 43 WASHER-HARD (10.2X22.5X3-MM THK) | 2 | |
| 0S1595 | 44 BOLT (1/2-13X1.25-IN) | 1 | |
| 4S4857 | 45 TEE | 1 | |
| 5M2894 | 46 WASHER-HARD (10.2X18.5X2.5-MM THK) | 16 | |
| 1F7958 | 47 NUT-FULL (1/2-13-THD) | 1 | |
| 9X8267 | 48 WASHER (6.6X12X2-MM THK) | 4 | |
| 6K4934 | 49 CLIP (SLOT) | 2 | |
| 4J8998 | 50 SEAL-O-RING | 1 | |
| 6V6609 | 51 SEAL-O-RING | 2 | |
| 6K4935 | 52 CLIP (TAB) | 2 | |
| 6V8214 | 53 BOLT (M6X1X20-MM) | 2 | |
| 6V9027 | 54 SEAL-O-RING | 4 | |
| 7L6580 | 55 SEAL-O-RING | 11 | |
| 8E5498 | 56 BOSS | 1 | |
| 8M9024 | 57 WASHER-HARD (10.2X22.5X5-MM THK) | 1 | |
| 8T0640 | 58 BOLT (M6X1X30-MM) | 1 | |
| 8T9588 | 59 SEAL-O-RING | 1 | |
| 9S4191 | 60 PLUG (9/16-18-THD) | 1 | |
| 1W1038 | 61 STUD (3/8-16X2.75-IN) | 1 | |
| 5P8245 | 62 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 9S8752 | 63 NUT-FULL (3/8-16-THD) | 1 |
