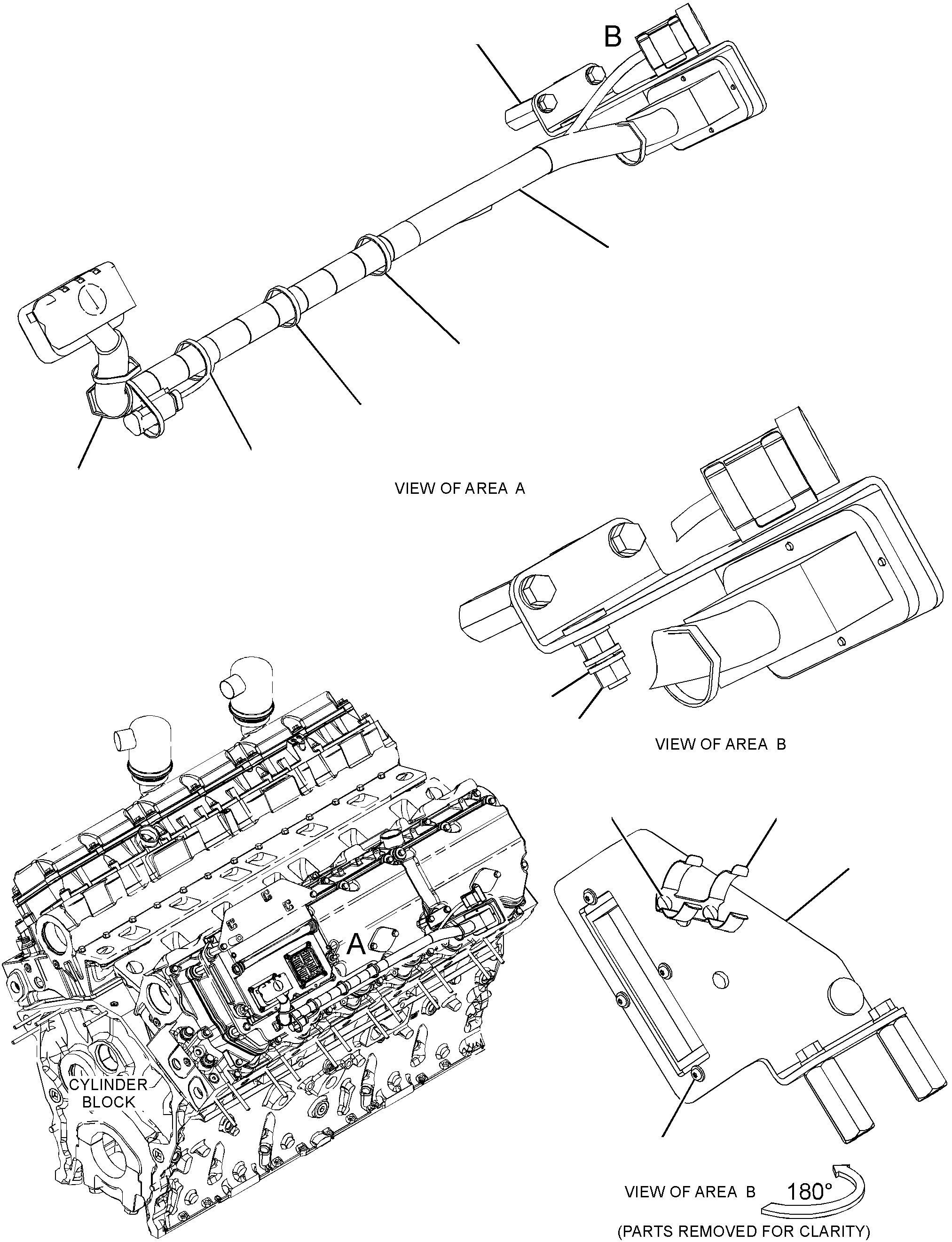

Assembly
100%

351-8746 WIRING GP-ELECTRONIC CONTROLPROVIDE A 70 -PIN CUSTOMER CONNECTION WIRING GROUP FOR C27 & C32 PETROLEUM & INDUSTRIAL APPLICATIONS

Group No: 351-8746
Part NumberPart NameQty
3S20931 STRAP-CABLE4
22126162 SPACER (5/16-18X1.75-IN)2
35187483 MOUNTING GP-WIRING1
7C26443A CLIP1
8C33343B RIVET-TUBULAR2
36491784 HARNESS AS-CONTROL1
3S2093STRAP-CABLE3
5P6001TUBE-HEAT SHRINK (4.75-MM DIA)(4-DM)
8C6354CAP-RECEPTACLE (ET CONNECTOR)1
8T8736RECEPTACLE-CONNECTOR (9-PIN)1
8T8737PLUG-SEAL44
1030213RECEPTACLE AS-CONNECTOR (70-PIN)1
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(45-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)48
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)48
1311493TERMINAL AS1
6H3587TERMINAL-RING (6-GA TO 8-GA, 3/8-IN SCREW)1
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(4-CM)
1311498TERMINAL AS1
6H3595TERMINAL-RING (10-GA TO 12-GA, 3/8-IN SCREW)1
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(4-CM)
1330967PIN-CONNECTOR (16-GA TO 18-GA)2
1330969CONNECTOR-SOCKET (16-GA TO 18-GA)2
1342540RECEPTACLE AS-CONNECTOR (3-PIN)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)52
1261767PIN-CONNECTOR (14-GA TO 16-GA)52
1740503KIT-CONNECTING PLUG (3-PIN)1
1607689PLUG AS-CONNECTOR (70-PIN)1
1599322SEAL-O-RING1
1945226TERMINAL AS (16-GA)4
1945227TERMINAL AS (14-GA)4
2370336COVER (CONNECTOR)1
2895150SLEEVE (37-CM)
2895151SLEEVE (26-CM)
3171204SLEEVE (19-CM)
4B53245 WASHER (3.9X9.6X1.2-MM THK)4
4M64256 BOLT (5/16-18X1-IN)2
6V88017 NUT (3/8-16-THD)2
8T42248 WASHER-HARD (8.8X16X2-MM THK)2
8T48969 WASHER-HARD (10.2X18.5X2.5-MM THK)3
9X625810 SCREW-MACHINE (6-32X0.5-IN)4
