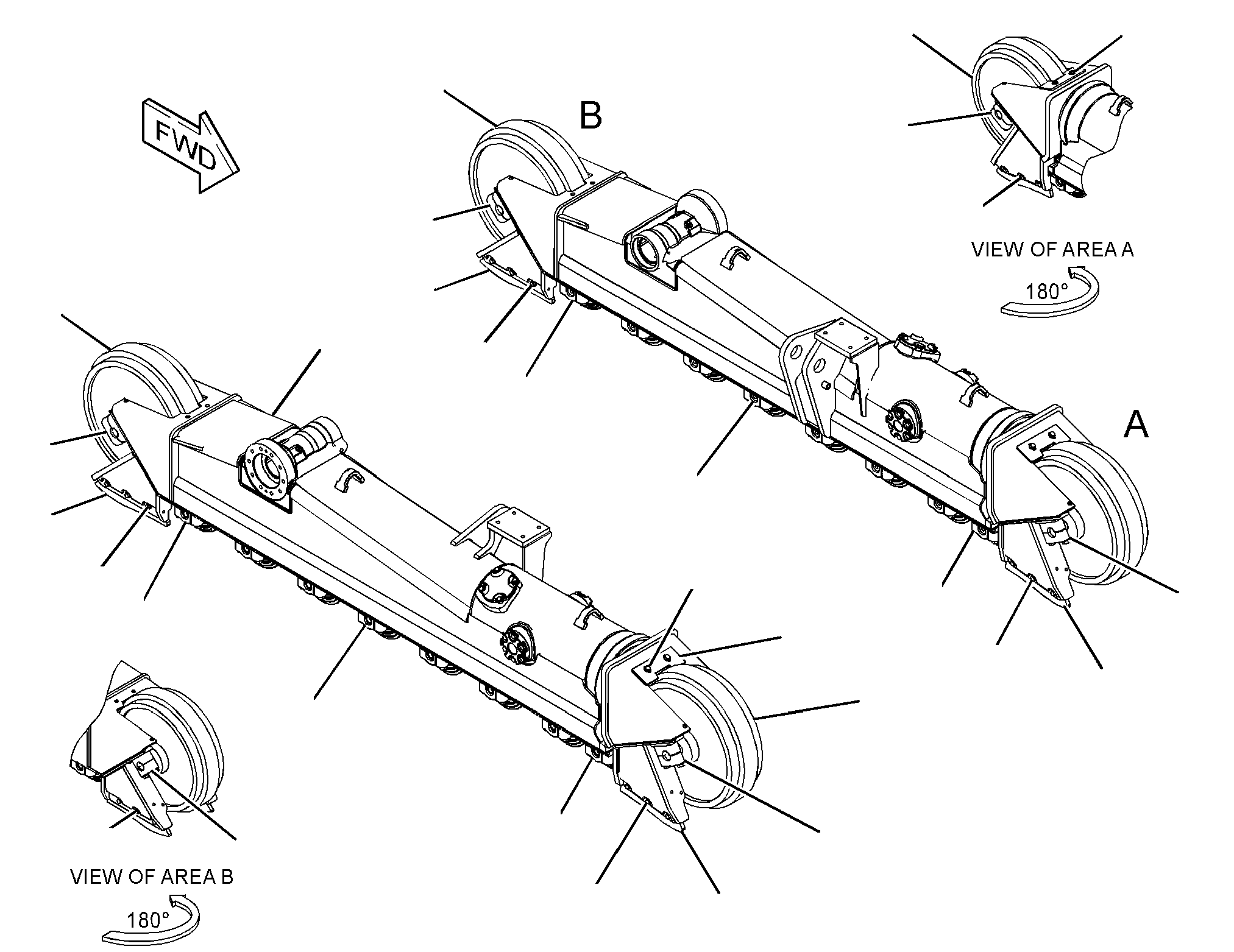

Assembly
100%

384-7411 FRAME GP-UNDERCARRIAGE -HEAVY-DUTYS/N D5L1-UP

Group No: 384-7411
Part NumberPart NameQty
19015461 IDLER GP-TRACK4
19670742 STRIP-WEAR (REAR)4
19670783 STRIP-WEAR (FRONT)4
23303674 CAP GP-TRACK IDLER (FRONT, LH)2
23308545 CAP GP-TRACK IDLER (FRONT, RH)2
25186016 SCRAPER2
25500457 CAP GP-TRACK IDLER (REAR, RH)2
35151148 FRAME GP-TRACK ROLLER (HEAVY-DUTY, SYSTEMONE)1
35872399 ROLLER GP-TRACK-SINGLE FLANGE4
384327510 ROLLER GP-TRACK-DOUBLE FLANGE12
255004611 CAP GP-TRACK IDLER (REAR, LH)2
8T418312 BOLT (M12X1.75X40-MM)4
8T419213 BOLT (M12X1.75X25-MM)24
8T422314 WASHER-HARD (13.5X25.5X3-MM THK)28
