System And Components

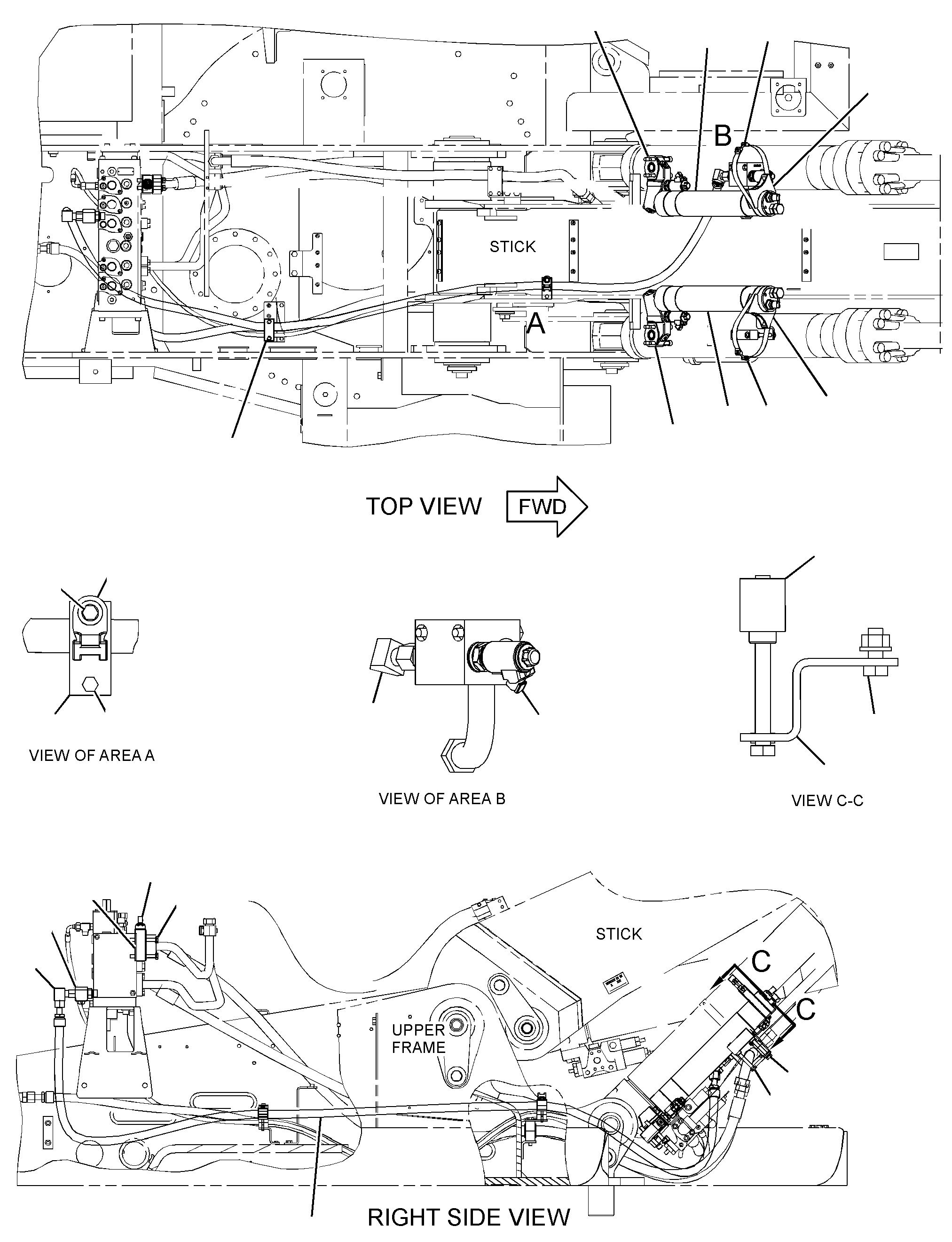

340-0285 VALVE & LINES GP-CONTROL -RIDE CONTROL, VA BOOMS/N J5B1-UP
Group No: 340-0285 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1949390 | 1 CLAMP GP-HYDRAULIC LINES | 2 | |
| 1949388 | CLAMP | 2 | |
| 1949389 | PLATE | 1 | |
| 2877333 | 2 FLANGE | 1 | |
| 2957687 | 3 VALVE GP-SOLENOID (RIDE CONTROL, VA BOOM) | 1 | |
| 2957688 | 4 VALVE GP-SOLENOID (RIDE CONTROL, HEAD END, LH) | 1 | |
| 2957689 | 5 VALVE GP-SOLENOID (RIDE CONTROL, HEAD END, RH) | 1 | |
| 2958554 | 6 BLOCK | 1 | |
| 2993655 | 7 CLAMP | 2 | |
| 3055897 | 8 SPACER | 2 | |
| 3105052 | 9 HOSE AS | 1 | |
| 3173663 | 10 BRACKET | 1 | |
| 3491178 | 11 SENSOR-PRESSURE (BOOM CYLINDER, ROD END) | 1 | |
| 1017403 | 12 BOLT-SOCKET HEAD (M10X1.5X80-MM) | 8 | |
| 1488341 | 13 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8713 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1536256 | 14 ELBOW AS | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 8C7563 | ELBOW | 1 | |
| 1646872 | 15 TEE AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1158634 | TEE-O-RING | 1 | |
| 1980143 | 16 ELBOW AS | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1572348 | ELBOW | 1 | |
| 1P3703 | 17 SEAL-RECTANGULAR | 1 | |
| 2717649 | 18 BOLT (M10X1.5X95-MM) | 2 | |
| 2939452 | 19 MOUNTING-CABLE TIE | 1 | |
| 2978107 | 20 BOLT (M10X1.5X105-MM) | 1 | |
| 3J1907 | 21 SEAL-O-RING | 1 | |
| 8T3844 | 22 BOLT (M6X1X70-MM) | 3 | |
| 8T4121 | 23 WASHER-HARD (11X21X2.5-MM THK) | 1 | |
| 8T4133 | 24 NUT (M10X1.5-THD) | 1 | |
| 8T4136 | 25 BOLT (M10X1.5X25-MM) | 1 | |
| 8T4172 | 26 BOLT (M10X1.5X80-MM) | 4 | |
| 8T6685 | 27 BOLT (M10X1.5X110-MM) | 1 | |
| 8T6974 | 28 BOLT (M6X1X80-MM) | 1 | |
| 9X8256 | 29 WASHER (6.6X12X2-MM THK) | 1 | |
| 3403267 | 30 ACCUMULATOR GP (CHARGED) | 2 |
