System And Components

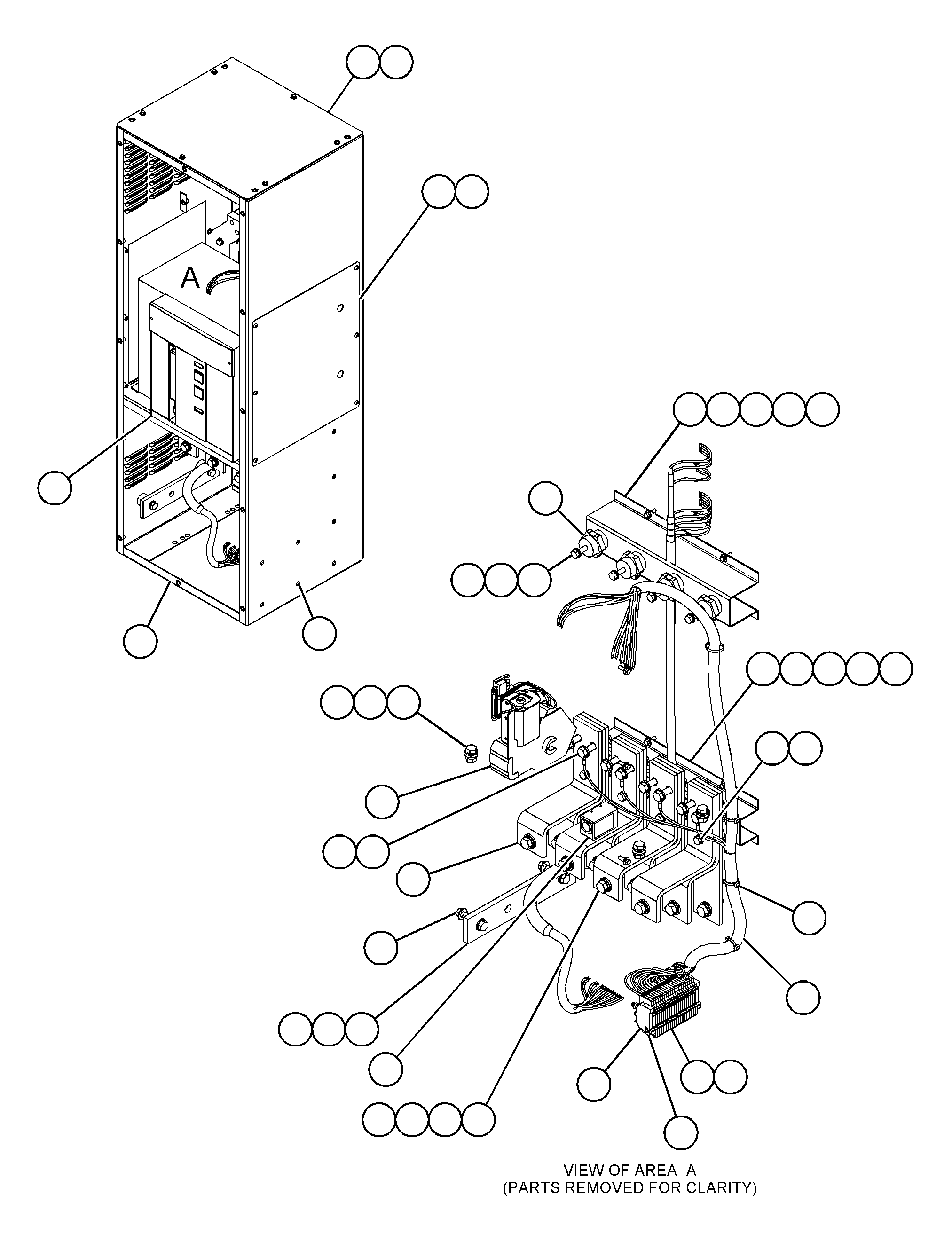

526-9504 PANEL GP-CIRCUIT BREAKERS/N LXK1-UP
Group No: 526-9504
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1434456 | 1 INSULATOR | 8 | |
| 3018313 | 2 BLOCK-TERMINAL (4-TERMINAL) | 20 | |
| 3018316 | 3 COVER-END | 1 | |
| 3458835 | 4 BLOCK-TERMINAL | 2 | |
| 3496808 | 5 MOUNT | 8 | |
| 3562799 | 6 KIT-MARKER | 1 | |
| 3740473 | 7 BAR AS | 1 | |
| 4591530 | 9 PLATE (TOP) | 1 | |
| 4591547 | 10 COVER-SIDE | 2 | |
| 4690510 | 11 BUS BAR GP-GENERATOR | 4 | |
| 4591536 | TERMINAL | 1 | |
| 4591537 | TERMINAL | 1 | |
| 4591538 | TERMINAL AS | 1 | |
| 4702310 | 12 HARNESS AS-PANEL | 1 | |
| 1S9593 | STRAP-CABLE | 15 | |
| 2L8081 | TERMINAL-RING (14-GA TO 16-GA, 1/2-IN SCREW) | 4 | |
| 4736519 | 14 PANEL AS | 1 | |
| 3E4304 | INSERT-THREADED (M6X1-THD) | 46 | |
| 1471960 | RAIL (30-CM) | ||
| 5230522 | 15 CIRCUIT BREAKER GP (2000-AMPERE) | 1 | |
| 5232160 | 16 BRACKET-TERMINAL | 1 | |
| 5234095 | 17 BRACKET-TERMINAL | 1 | |
| 2354451 | 18 BOLT-FLANGE HEAD (M6X1X16-MM) | 14 | |
| 3429913 | 19 BOLT-FLANGE HEAD (M10X1.5X20-MM) | 2 | |
| 4404396 | 20 ACTUATOR-CIRCUIT BREAKER | 1 | |
| 4448241 | 21 SOLENOID (24-VOLT)(CIRCUIT BREAKER) | 1 | |
| 7H3937 | 22 LOCKWASHER | 16 | |
| 7X2537 | 23 BOLT (M8X1.25X35-MM) | 4 | |
| 8L8413 | 24 STRAP-CABLE (WHITE) | 4 | |
| 8R8847 | 25 RETAINER-SPRING | 24 | |
| 8T4121 | 26 WASHER-HARD (11X21X2.5-MM THK) | 18 | |
| 8T4133 | 27 NUT (M10X1.5-THD) | 4 | |
| 8T4137 | 28 BOLT (M10X1.5X20-MM) | 6 | |
| 8T4183 | 29 BOLT (M12X1.75X40-MM) | 12 | |
| 8T4199 | 30 BOLT (M8X1.25X12-MM) | 8 | |
| 8T4223 | 31 WASHER-HARD (13.5X25.5X3-MM THK) | 24 | |
| 8T4224 | 32 WASHER-HARD (8.8X16X2-MM THK) | 16 | |
| 8T4244 | 33 NUT (M12X1.75-THD) | 12 | |
| 8T6466 | 34 BOLT (M10X1.5X60-MM) | 8 | |
| 8T7547 | 35 BOLT (M8X1.25X30-MM) | 4 | |
| 5139221 | 36 SCREW-BUTTON HEAD (M6X1X16-MM) | 12 | |
| 4702311 | HARNESS AS-PANEL | 1 | |
| 3494797 | CONDUIT (4-DM) | ||
| 1S9593 | STRAP-CABLE | 15 | |
| 3451120 | CONNECTOR AS | 2 | |
| 4448242 | SHUNT-TRIP | 1 |
