System And Components

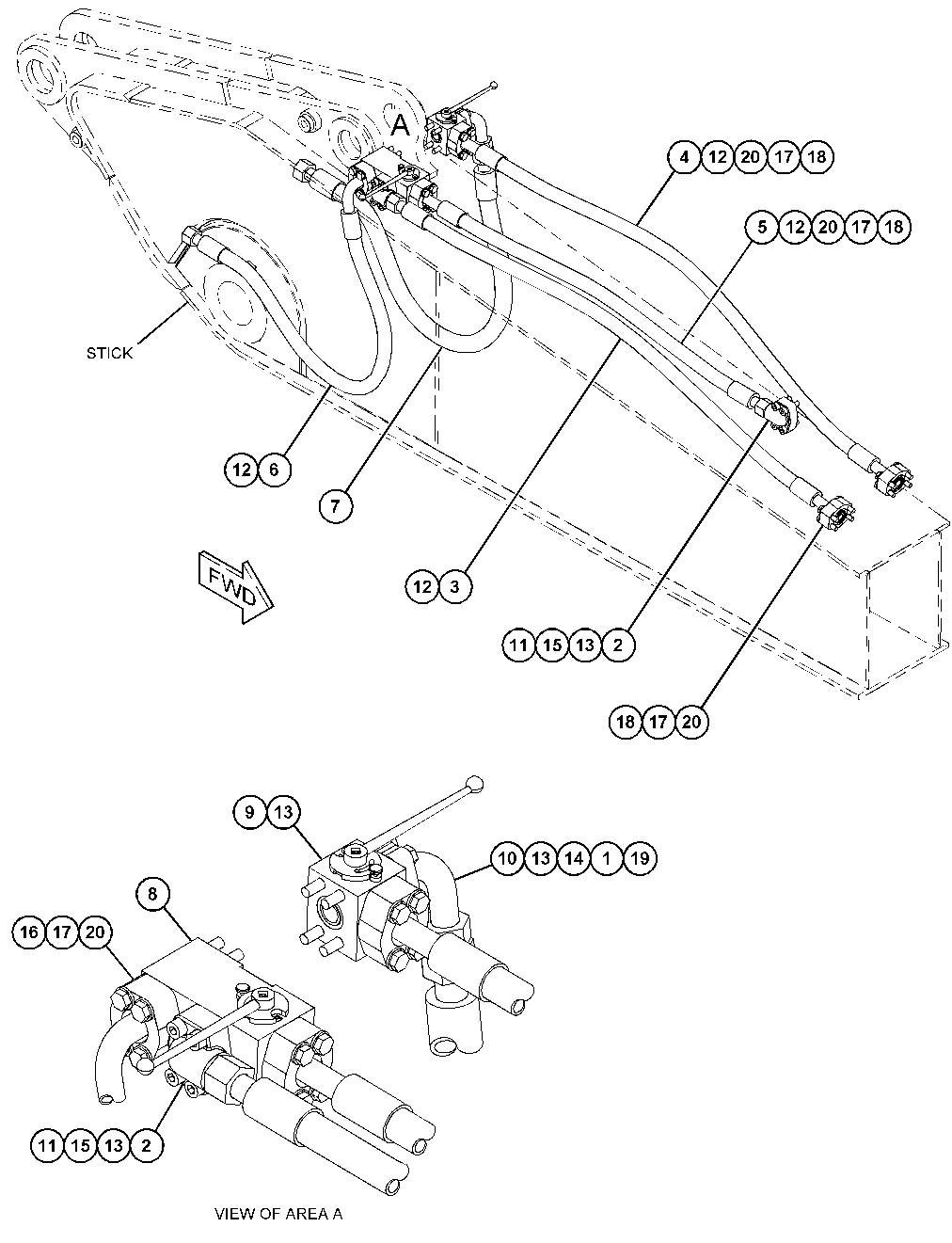

417-8475 LINES GP-STICK -DIVERTER VALVES/N CH91-UP
Group No: 417-8475
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5W9857 | 1 FLANGE-HALF | 2 | |
| 1518866 | 2 ELBOW | 2 | |
| 1965382 | 3 HOSE AS | 1 | |
| 1965383 | 4 HOSE AS | 1 | |
| 1965384 | 5 HOSE AS | 1 | |
| 2004051 | 6 HOSE AS | 1 | |
| 2004052 | 7 HOSE AS | 1 | |
| 2909589 | 8 VALVE GP-DIVERTER (STICK CYLINDER, ROD END) | 1 | |
| 2909591 | 9 VALVE GP-DIVERTER (STICK CYLINDER, HEAD END) | 1 | |
| 3304657 | 10 TUBE AS | 1 | |
| 1017398 | 11 BOLT-SOCKET HEAD (M10X1.5X40-MM) | 8 | |
| 1P3702 | 12 SEAL-RECTANGULAR | 5 | |
| 4J5267 | 13 SEAL-O-RING | 4 | |
| 5K9090 | 14 SEAL-O-RING | 1 | |
| 6V9746 | 15 SEAL-O-RING | 2 | |
| 7X2543 | 16 BOLT (M10X1.5X120-MM) | 4 | |
| 8T4121 | 17 WASHER-HARD (11X21X2.5-MM THK) | 20 | |
| 8T4182 | 18 BOLT (M10X1.5X45-MM) | 16 | |
| 8T4198 | 19 BOLT (M10X1.5X100-MM) | 4 | |
| 8T9403 | 20 FLANGE-HALF | 10 |
