System And Components

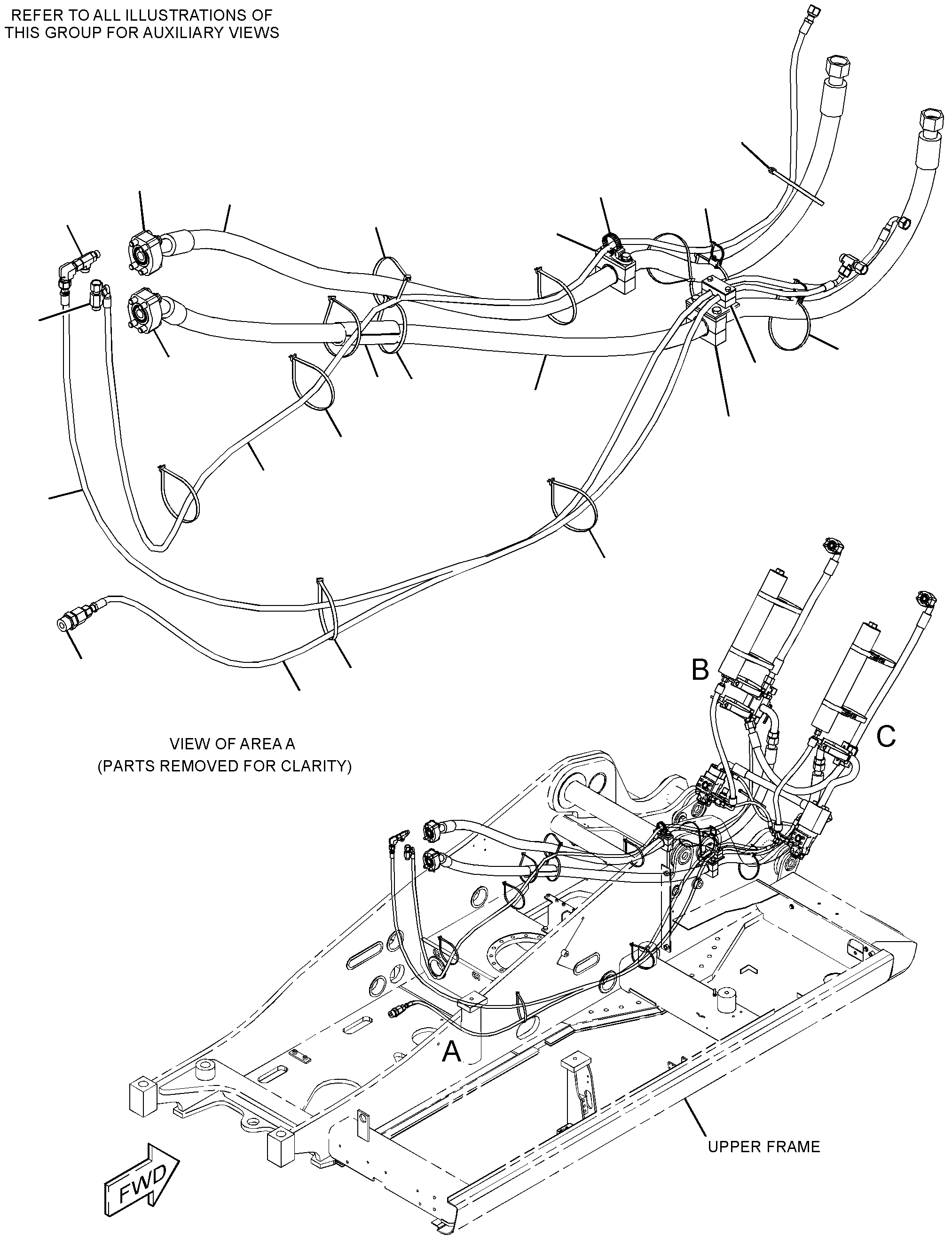

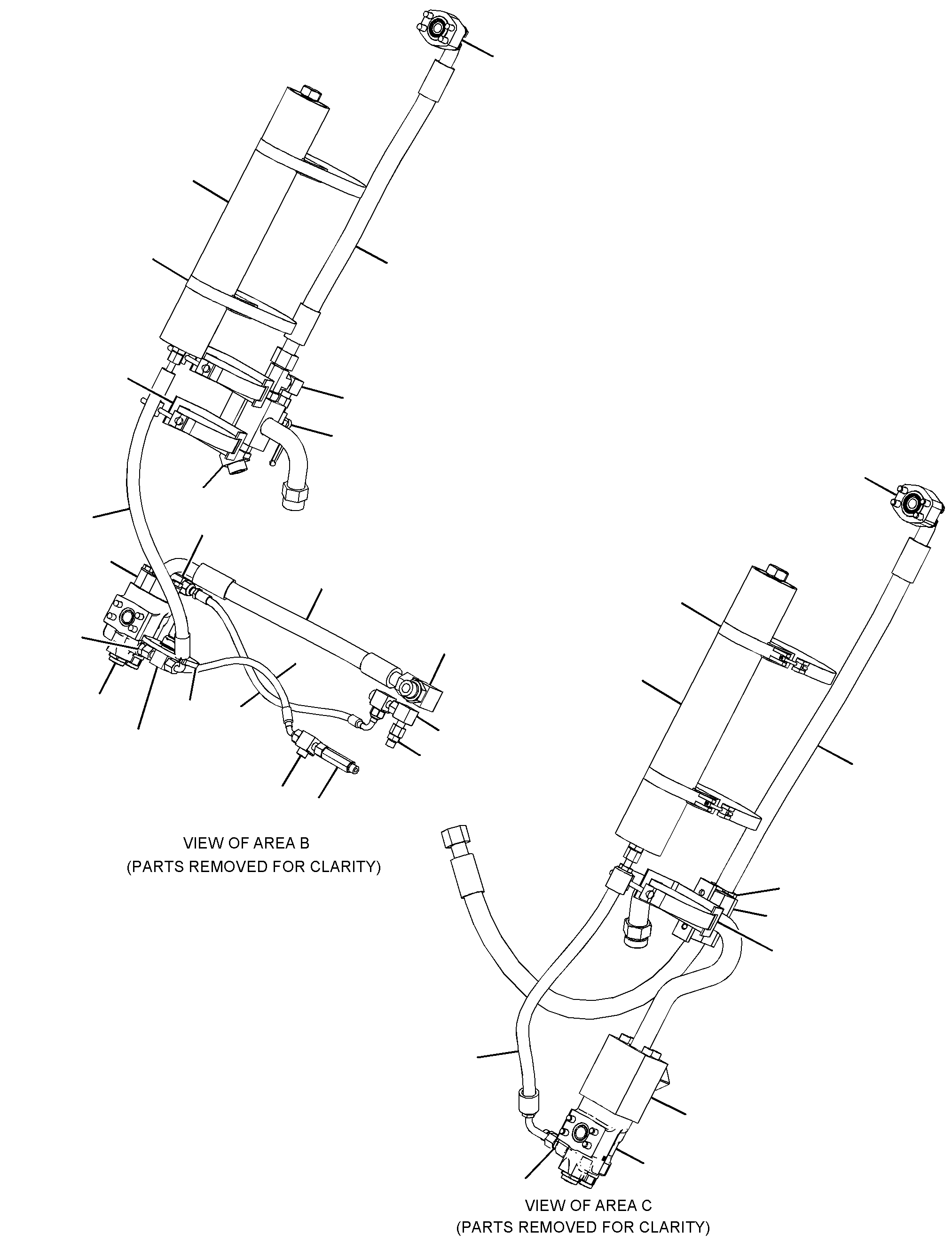

340-3046 LINES GP-CHECK VALVE -BOOM CYLINDERS/N P9M1-UP
Group No: 340-3046
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1017399 | 1 BOLT-SOCKET HEAD (M10X1.5X120-MM) | 4 | |
| 1130471 | 2 HOSE AS | 1 | |
| 1294682 | 3 HOSE AS | 1 | |
| 1301153 | 4 HOSE AS | 1 | |
| 1391942 | 5 HOSE AS | 1 | |
| 1394016 | 6 INSERT-RUBBER | 2 | |
| 1427425 | 7 TUBE AS | 1 | |
| 1457166 | 8 VALVE GP-MANUAL (BOOM LOWERING CONTROL) | 1 | |
| 1488424 | 9 TEE AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T8902 | ADAPTER-TEE | 1 | |
| 1488440 | 10 TEE AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 8C0569 | TEE-O-RING | 1 | |
| 1521267 | 11 ELBOW | 1 | |
| 1856808 | 12 HOSE AS | 1 | |
| 1856810 | 13 CLAMP AS | 1 | |
| 1875078 | 14 CLAMP AS | 1 | |
| 2017153 | 15 PLATE AS | 1 | |
| 2031911 | 16 HOSE AS | 1 | |
| 2031920 | 17 HOSE AS | 1 | |
| 2062423 | 18 SADDLE-MOUNTING | 2 | |
| 2126763 | 19 HOSE AS | 1 | |
| 2244794 | 20 HOSE AS | 1 | |
| 2660982 | 21 GUARD | 1 | |
| 2883658 | 22 CLAMP-SINGLE | 1 | |
| 2993657 | 23 CLAMP | 4 | |
| 3055899 | 24 SPACER | 4 | |
| 3403050 | 25 CLAMP GP-HYDRAULIC LINES (LOGGING) | 1 | |
| 1949389 | PLATE | 1 | |
| 3403049 | CLAMP | 2 | |
| 3403419 | 26 HOSE AS | 1 | |
| 3403468 | 27 VALVE GP-CHECK (BOOM LOWERING CONTROL, LH) | 1 | |
| 3403469 | 28 VALVE GP-CHECK (BOOM LOWERING CONTROL, RH) | 1 | |
| 4J5267 | SEAL-O-RING | 1 | |
| 3491178 | 29 SENSOR-PRESSURE (OVERLOAD WARNING) | 1 | |
| 3535954 | 30 ACCUMULATOR GP-HYDRAULIC (CHARGED) | 2 | |
| 3535955 | 31 ORIFICE | 1 | |
| 3815002 | 32 TUBE AS | 1 | |
| 1017398 | 33 BOLT-SOCKET HEAD (M10X1.5X40-MM) | 8 | |
| 1395751 | 34 CLAMP-SINGLE | 2 | |
| 1407599 | 35 CLAMP | 1 | |
| 1488336 | 36 CONNECTOR AS | 4 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488341 | 37 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8713 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488347 | 38 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9007 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488367 | 39 ELBOW AS | 3 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9850 | ELBOW | 1 | |
| 1488433 | 40 TEE AS | 3 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 1488435 | 41 TEE AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 1536237 | 42 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9004 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1564282 | 43 REDUCER AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8938 | REDUCER | 1 | |
| 1833399 | 44 CONNECTOR AS | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1P3702 | 45 SEAL-RECTANGULAR | 3 | |
| 1P3703 | 46 SEAL-RECTANGULAR | 2 | |
| 2042281 | 47 STRAP-CABLE | 1 | |
| 2307732 | 48 MOUNTING-CABLE TIE | 1 | |
| 2808912 | 49 BOLT (M10X1.5X75-MM) | 2 | |
| 3048036 | 50 CONNECTOR AS | 1 | |
| 8T8887 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 3J1907 | 51 SEAL-O-RING | 2 | |
| 3S2093 | 52 STRAP-CABLE | 2 | |
| 4J5267 | 53 SEAL-O-RING | 1 | |
| 5K9090 | 54 SEAL-O-RING | 2 | |
| 6V0400 | 55 FLANGE-HALF | 4 | |
| 6V8397 | 56 SEAL-O-RING | 2 | |
| 7K1181 | 57 STRAP-CABLE | 13 | |
| 8C8451 | 58 BOLT (M6X1X40-MM) | 2 | |
| 8T4121 | 59 WASHER-HARD (11X21X2.5-MM THK) | 13 | |
| 8T4172 | 60 BOLT (M10X1.5X80-MM) | 3 | |
| 8T4182 | 61 BOLT (M10X1.5X45-MM) | 12 | |
| 8T4184 | 62 BOLT (M12X1.75X45-MM) | 8 | |
| 8T4185 | 63 BOLT (M10X1.5X50-MM) | 2 | |
| 8T4223 | 64 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8T5005 | 65 BOLT (M10X1.5X70-MM) | 1 | |
| 8T9403 | 66 FLANGE-HALF | 6 | |
| 9X6581 | 67 NUT-O-RING SEAL (1-14-THD) | 1 | |
| 5298809 | 68 HOSE AS | 2 |
