System And Components

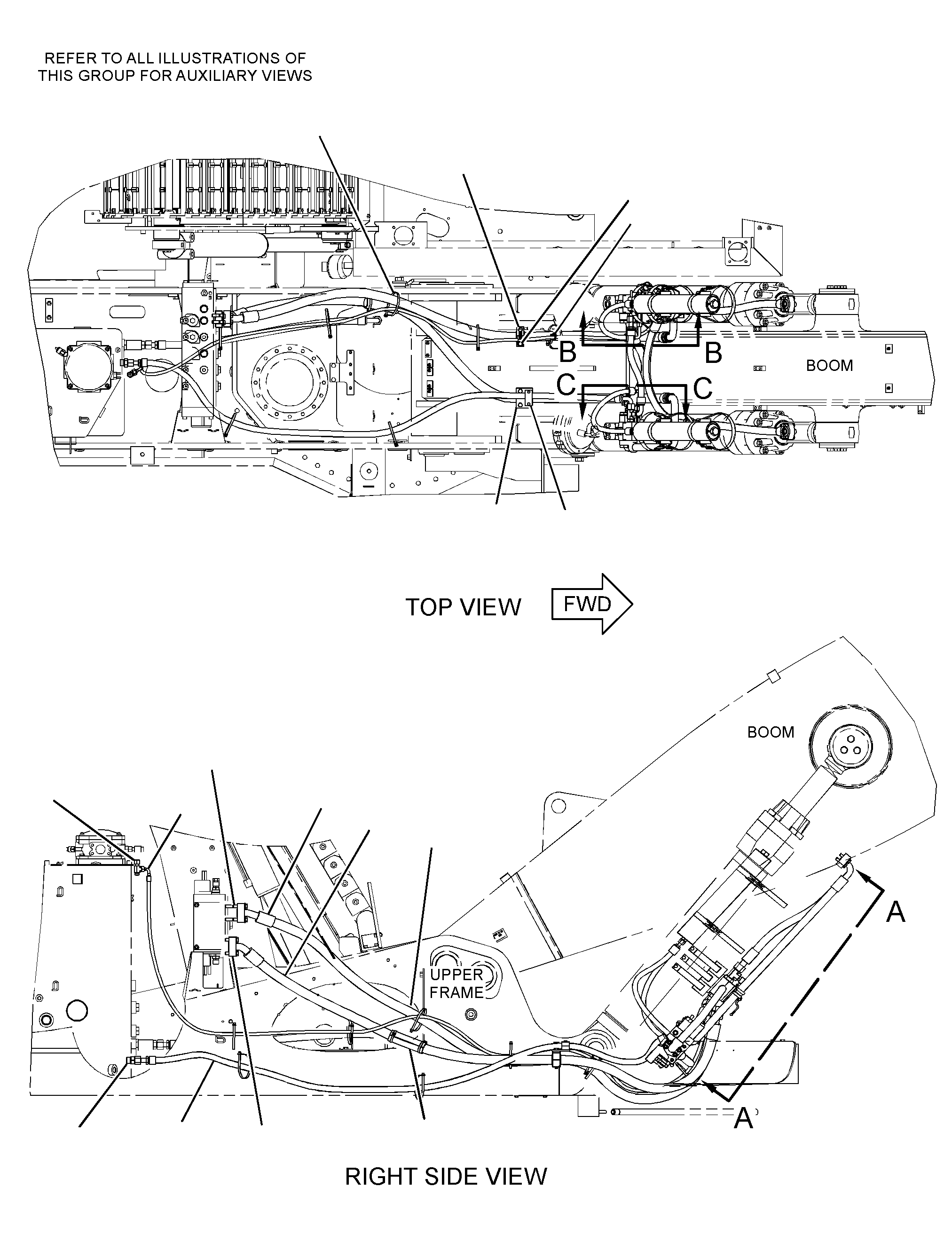

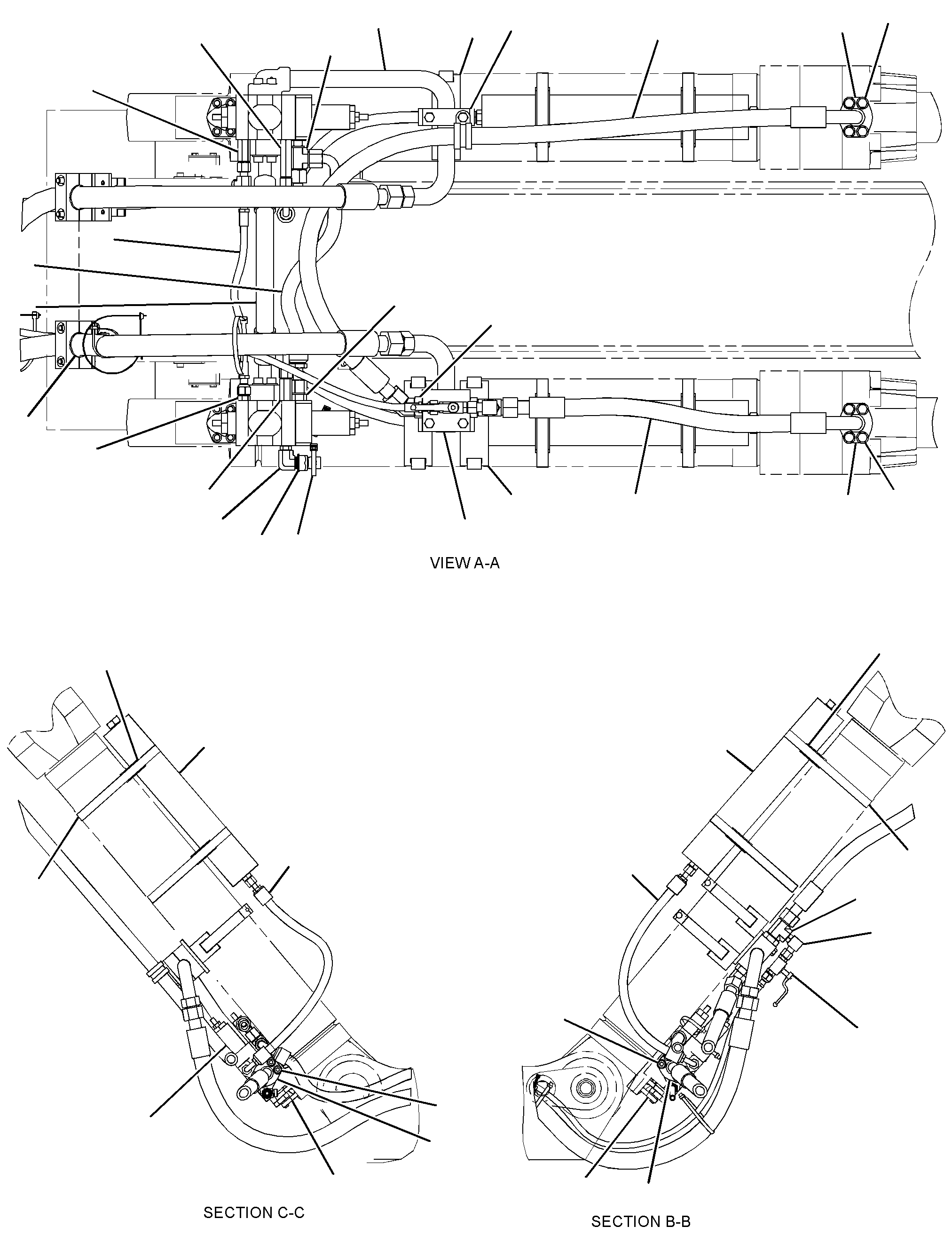

397-9096 LINES GP-CHECK VALVE -SMARTBOOM, BM CYL, ACCUMULATORS/N EN91-UP
Group No: 397-9096
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1017404 | 1 BOLT-SOCKET HEAD (M10X1.5X30-MM) | 4 | |
| 1394016 | 2 INSERT-RUBBER | 2 | |
| 1395751 | 3 CLAMP-SINGLE | 2 | |
| 1407599 | 4 CLAMP | 1 | |
| 1427425 | 5 TUBE AS | 1 | |
| 1488315 | 6 CONNECTOR AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8642 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488336 | 7 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1645589 | 8 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8C0597 | CONNECTOR | 1 | |
| 1488341 | 9 CONNECTOR AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8713 | CONNECTOR | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488433 | 10 TEE AS | 2 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 1521267 | 11 ELBOW | 1 | |
| 1536237 | 12 ELBOW AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9004 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1649869 | 13 CONNECTOR AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 9X2297 | CONNECTOR | 1 | |
| 1856810 | 14 CLAMP AS | 1 | |
| 1875078 | 15 CLAMP AS | 1 | |
| 1949390 | 16 CLAMP GP-HYDRAULIC LINES | 1 | |
| 1949388 | CLAMP | 2 | |
| 1949389 | PLATE | 1 | |
| 2017153 | 17 PLATE AS | 1 | |
| 2542675 | 18 VALVE GP-LOAD CONTROL (PILOT OPERATED) | 2 | |
| 2883658 | 19 CLAMP-SINGLE | 1 | |
| 3055899 | 20 SPACER | 4 | |
| 3491178 | 21 SENSOR-PRESSURE (PAYLOAD CONTROL) | 1 | |
| 3535954 | 22 ACCUMULATOR GP-HYDRAULIC (CHARGED) | 2 | |
| 3535955 | 23 ORIFICE | 1 | |
| 1053477 | 24 BOLT-SOCKET HEAD (M10X1.5X45-MM) | 16 | |
| 1130471 | 25 HOSE AS | 1 | |
| 1330565 | 26 HOSE AS | 1 | |
| 1446060 | 27 ORIFICE | 1 | |
| 1457166 | 28 VALVE GP-MANUAL (BOOM LOWERING CONTROL) | 1 | |
| 1488440 | 29 TEE AS | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 8C0569 | TEE-O-RING | 1 | |
| 1856808 | 30 HOSE AS | 1 | |
| 1856809 | 31 HOSE AS | 1 | |
| 1908537 | 32 HOSE AS | 1 | |
| 1P3702 | 33 SEAL-RECTANGULAR | 4 | |
| 1P3703 | 34 SEAL-RECTANGULAR | 2 | |
| 2031920 | 35 HOSE AS | 1 | |
| 2042281 | 36 STRAP-CABLE | 1 | |
| 2062423 | 37 SADDLE-MOUNTING | 1 | |
| 2121336 | 38 TEE AS | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8783 | TEE-FACE SEAL | 1 | |
| 7J9108 | SEAL-O-RING | 2 | |
| 2126763 | 39 HOSE AS | 1 | |
| 2203564 | 40 HOSE AS | 1 | |
| 2244794 | 41 HOSE AS | 1 | |
| 2307732 | 42 MOUNTING-CABLE TIE | 1 | |
| 2660982 | 43 GUARD | 1 | |
| 2808912 | 44 BOLT (M10X1.5X75-MM) | 2 | |
| 2993657 | 45 CLAMP | 4 | |
| 3142885 | 46 CONNECTOR-SPECIAL | 1 | |
| 3304681 | 47 TUBE AS | 1 | |
| 3J1907 | 48 SEAL-O-RING | 3 | |
| 3S2093 | 49 STRAP-CABLE | 1 | |
| 4J5267 | 50 SEAL-O-RING | 3 | |
| 5K9090 | 51 SEAL-O-RING | 2 | |
| 6V0400 | 52 FLANGE-HALF | 4 | |
| 6V8397 | 53 SEAL-O-RING | 2 | |
| 7K1181 | 54 STRAP-CABLE | 13 | |
| 8C8451 | 55 BOLT (M6X1X40-MM) | 2 | |
| 8T4121 | 56 WASHER-HARD (11X21X2.5-MM THK) | 17 | |
| 8T4172 | 57 BOLT (M10X1.5X80-MM) | 3 | |
| 8T4182 | 58 BOLT (M10X1.5X45-MM) | 8 | |
| 8T4184 | 59 BOLT (M12X1.75X45-MM) | 4 | |
| 8T4185 | 60 BOLT (M10X1.5X50-MM) | 2 | |
| 8T4223 | 61 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8T5005 | 62 BOLT (M10X1.5X70-MM) | 1 | |
| 8T9403 | 63 FLANGE-HALF | 8 | |
| 5298809 | 64 HOSE AS | 2 | |
| 8T6868 | 65 BOLT (M12X1.75X80-MM) | 4 |
