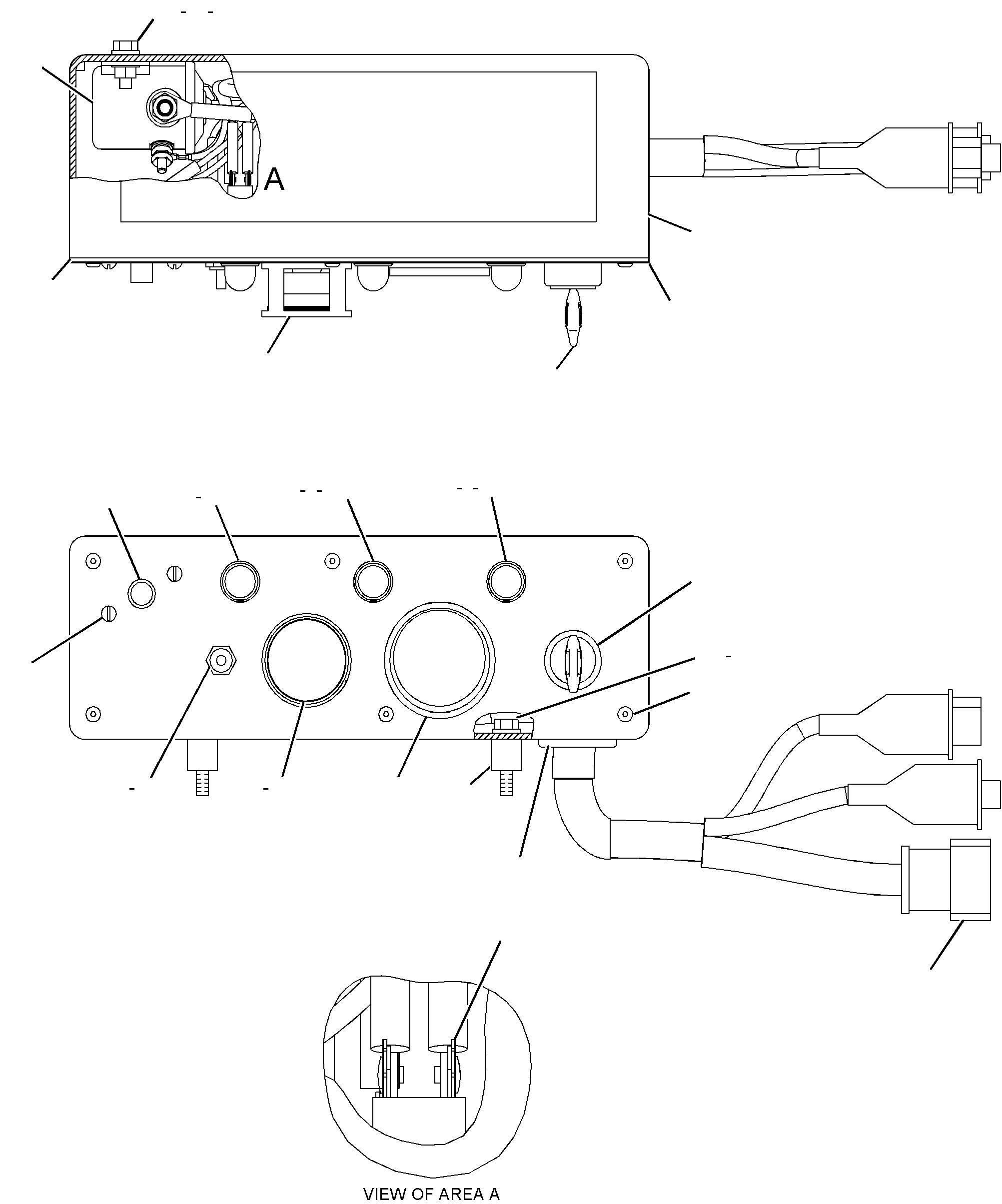

234-7828 CONTROL GP-START/STOPS/N MGS1-UP

Group No: 234-7828
Part NumberPart NameQty
1H43931 LOCKWASHER8
2N23712 LAMP AS-INDICATOR (RED)2
2V7088LENS-RED1
6V8367LOCKWASHER1
6V8382NUT-HEX (11/16-27-THD)1
6V8817SCREW-MACHINE (4-36X4.76-IN)2
3N57163 SWITCH (PUSH BUTTON)(MAINTENANCE INDICATOR RESET)1
5P85004 KEY (START)1
7D08945 SCREW-HEAD6
7N58766 LAMP (24-VOLT, 0.2-AMPERE)3
10965077 SWITCH AS-PUSH BUTTON (OPERATOR)(STOP)1
11078878 SWITCH AS-START (KEY)1
3E3377WEDGE-RECEPTACLE LOCK (4-PIN)1
7T6799NUT-MOUNTING (1-32-THD)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)4
1028804KIT-RECEPTACLE (4-PIN)1
11113259 BLOCK-CONTACT (2-POLE)1
124317610 COVER1
126609411 PLATE AS1
130937612 MOUNT-FLEXIBLE4
141922813 LAMP AS (INDICATOR)1
2V7087LENS-AMBER1
6V8367LOCKWASHER1
6V8382NUT-HEX (11/16-27-THD)1
6V8817SCREW-MACHINE (4-36X4.76-IN)2
121124114 KIT-SERVICE METER1
1142505FILM-IDENTIFICATION (SERVICE METER)1
3045303NUT-SPECIAL (SERVICE METER)1
203951615 FILM-IDENTIFICATION (CONTROL PANEL)1
203957216 ENCLOSURE1
209558217 SWITCH GP-MAGNETIC (24-VOLT)(RELAY)1
3F9556LOCKWASHER2
6V8186NUT-FULL (5/16-24-THD)2
6V8378NUT (10-32-THD)2
8F1434LOCKWASHER2
1028802KIT-RECEPTACLE (2-PIN)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)2
234786218 HARNESS AS-CONTROL1
1028801KIT-RECEPTACLE (12-PIN)1
1275485PLUG AS-CONNECTOR (1-PIN)1
1275486RECEPTACLE AS-CONNECTOR (1-PIN)1
1552269PLUG AS-CONNECTOR (2-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
1552271KIT-CONNECTING PLUG (4-PIN)1
3K952019 GROMMET1
4B122320 SCREW-MACHINE (8-32X0.875-IN)2
4M528121 BOLT (1/4-20X0.75-IN)2
6T364322 CIRCUIT BREAKER AS (15-AMPERE)(ENGINE STARTING)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
6V132223 BOLT (1/4-20X0.375-IN)4
6V818524 NUT (1/4-20-THD)2
8T420525 WASHER-HARD (7.2X14.5X2-MM THK)8
