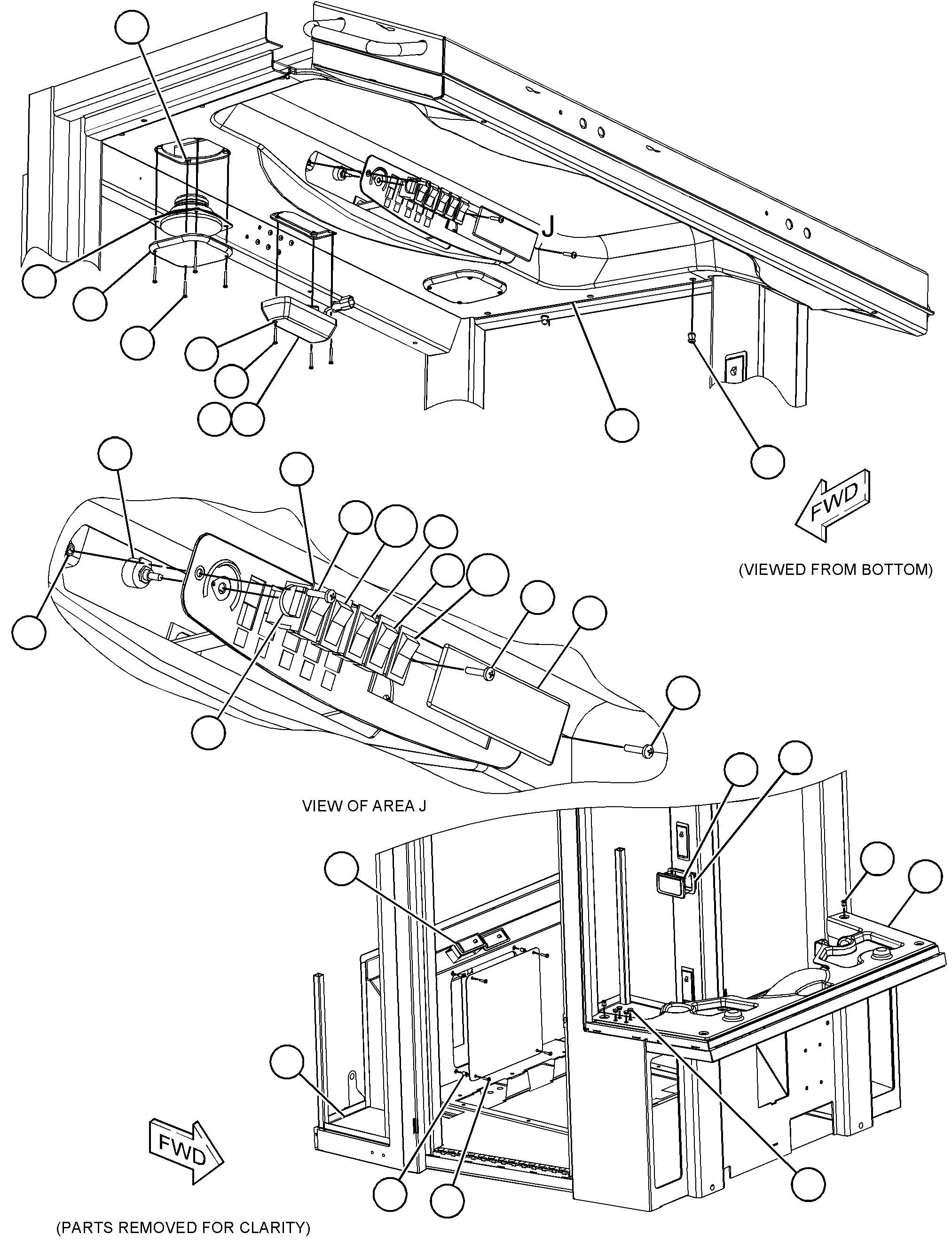

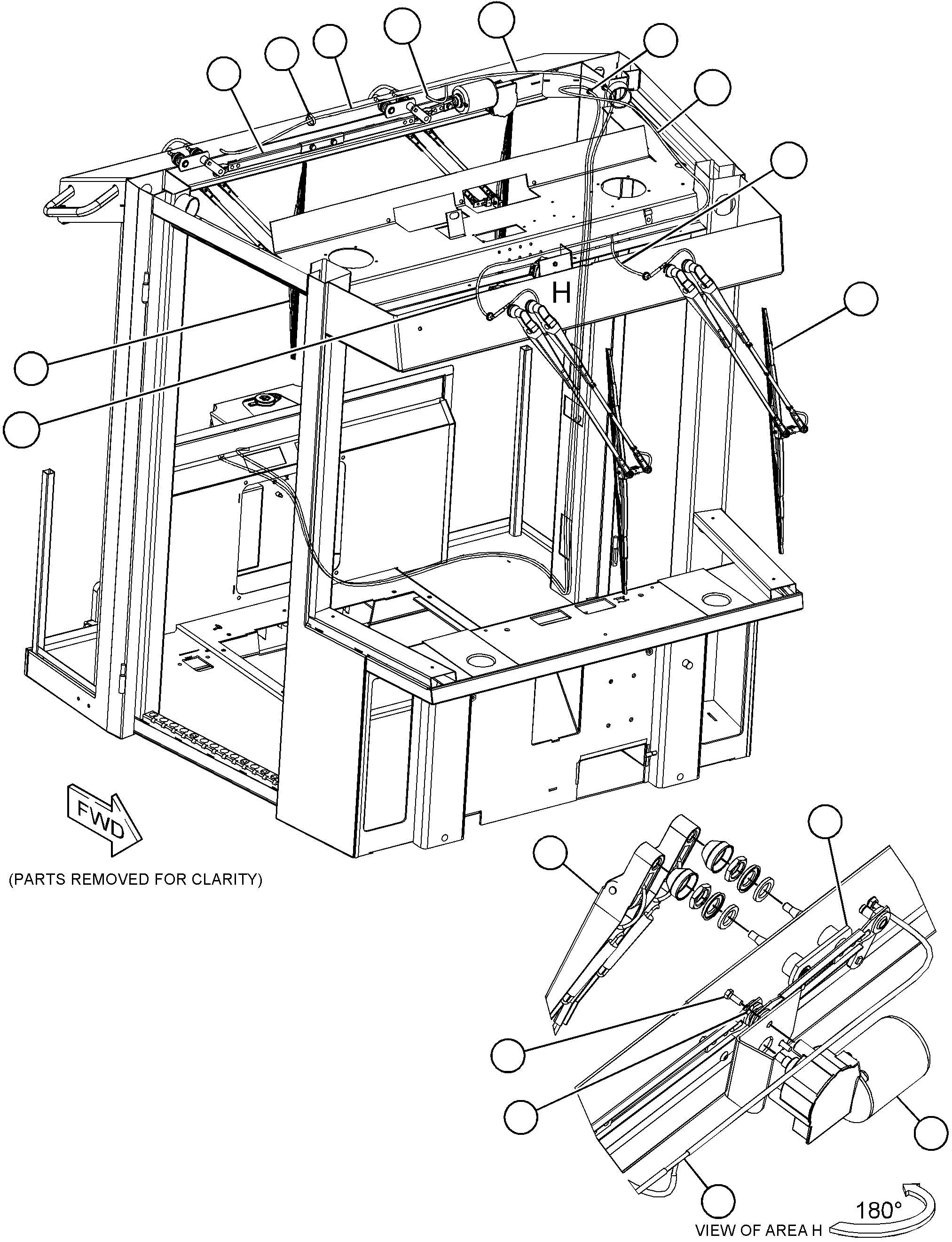

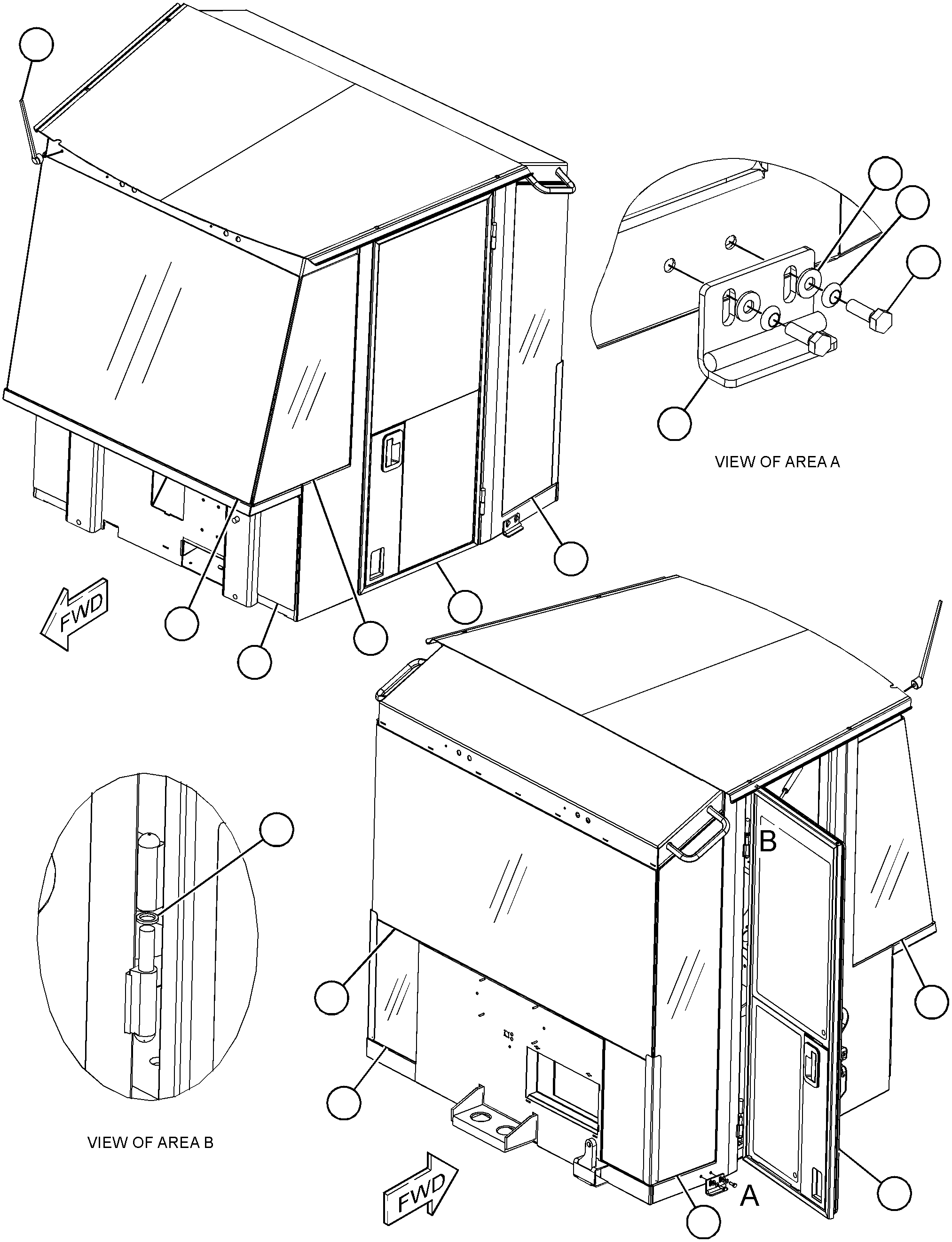

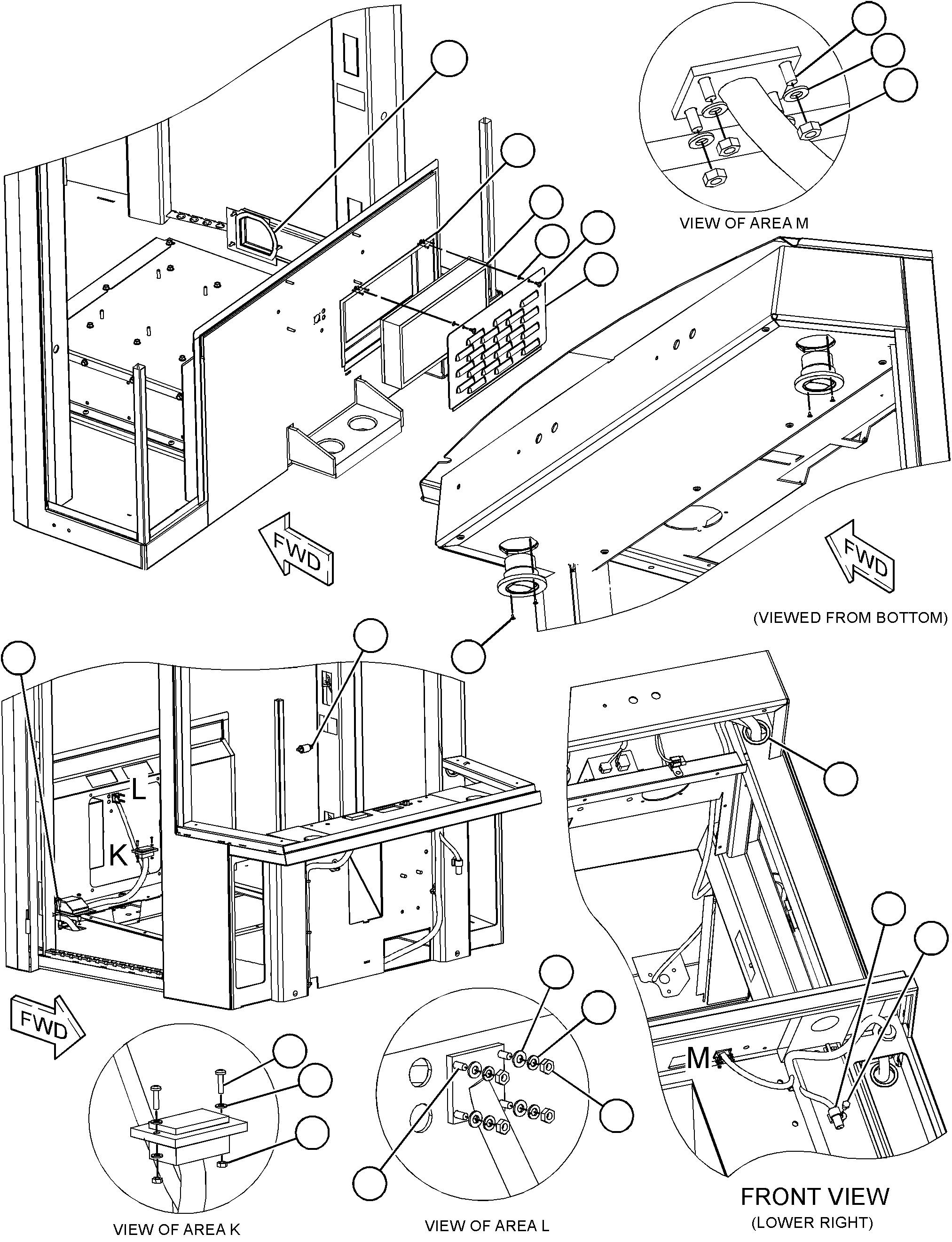

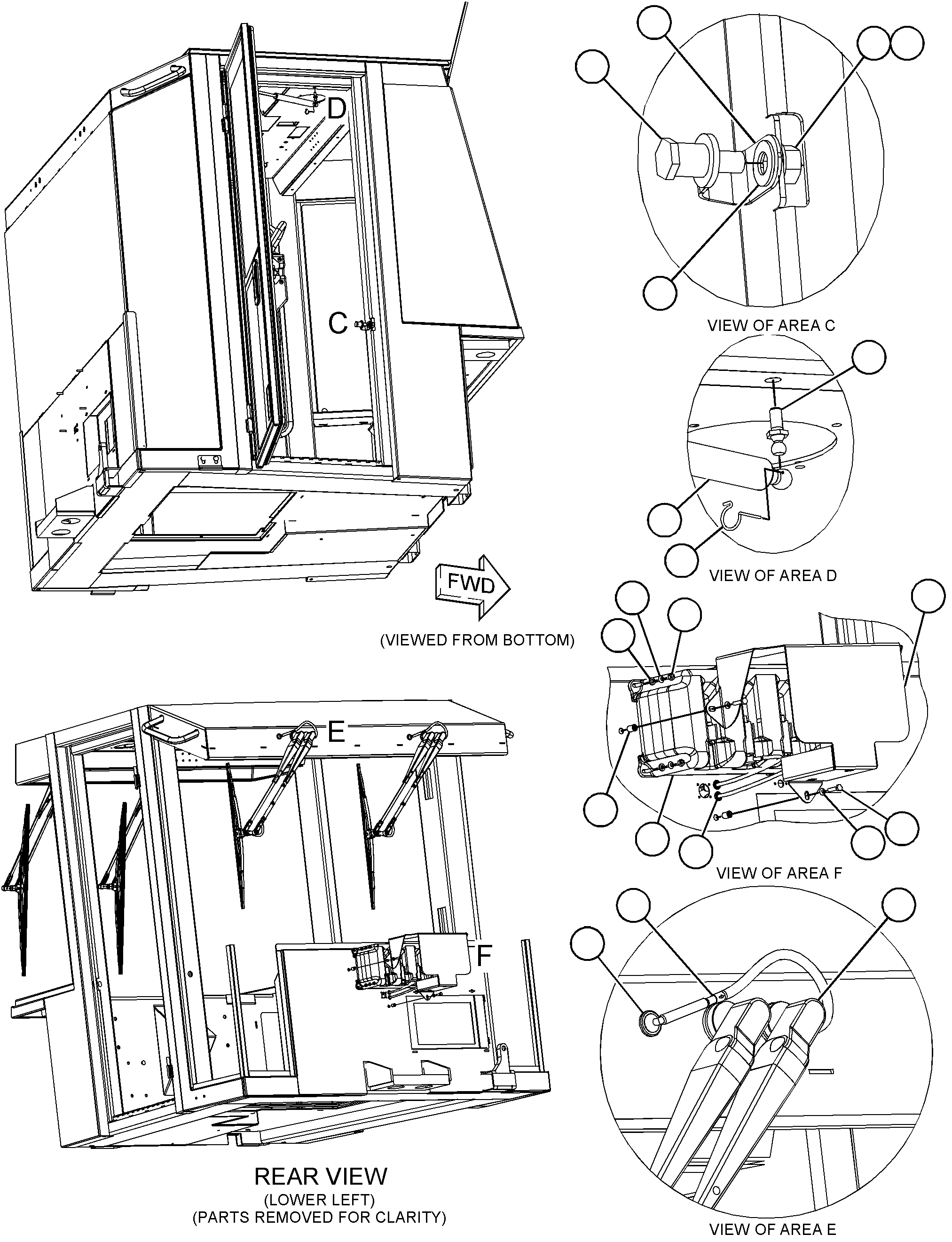

349-0649 CAB GPS/N BWR487-UP

Group No: 349-0649
Part NumberPart NameQty
6C34311 ANTENNA1
23400822 GLASS-REAR (UPPER)1
23400833 GLASS-REAR (LOWER)2
23400844 GLASS-REAR (RH)1
23400855 GLASS-REAR (LH)1
23400866 GLASS-FRONT (UPPER)1
23400877 GLASS-FRONT (RH)1
23400888 GLASS-FRONT (LH)1
23400899 GLASS-FRONT (LOWER)2
8T509510 WASHER-PLATED (11X16X2-MM THK)4
8T244411 STUD-BALL2
234011812 SPRING AS-GAS (CAB)2
6V115513 STRIKER AS (LATCH)2
6V4270LOCKWASHER1
198389914 SCREW-BUTTON HEAD (M8X1.25X20-MM)7
8Y638515 SHIELD-STRIKER2
7X044716 NUT (7/16-14-THD)2
8T536017 WASHER (12X22.5X2.5-MM THK)4
8T015418 CLAMP-HOSE4
090867119 WASHER-SPRING4
5P411620 WASHER-HARD (8.8X20.5X2-MM THK)4
8T490821 BOLT (M8X1.25X25-MM)7
204258122 VALVE AS-CHECK (WINDOW WASHER)4
229995923 TANK GP-WINDOW WASHER1
205704824 INSERT-THREADED (M6X1-X14.73-MM)10
3K878525 GROMMET4
2U450426 TEE2
144019527 HOSE (75-CM)
144019527A HOSE (12.5-CM)
144019527B HOSE (355-CM)
144019527C HOSE (447.5-CM)
144019527D HOSE (20-CM)
144019527E HOSE (61.5-CM)
234013628 WIPER PIVOT GP (REAR)1
8T222929 WASHER-BELLEVILLE19
126370530 ARM-WINDOW WIPER (FRONT)2
291099931 MOTOR GP-WINDOW WIPER (CAB)2
234013432 ARM GP-WINDOW WIPER (REAR)2
1363188CLIP3
1945171HOSE (96-CM)
1363190NOZZLE AS-WASHER1
234013533 WIPER PIVOT GP (FRONT)1
5C289034 NUT (M6X1-THD)10
5C955335 BOLT (M6X1X16-MM)6
6V686436 BLADE AS-WIPER (600-MM)(REAR)2
6V735737 BOLT (M6X1X25-MM)3
6V741938 BLADE AS-WIPER (700-MM)(FRONT)2
7K118139 STRAP-CABLE10
8T540040 CONNECTOR4
9X825641 WASHER (6.6X12X2-MM THK)4
9U826342 COVER1
396742343 GROMMET1
096548644 SCREW-MACHINE (M6X1X25-MM)7
234009145 RIVET13
168877246 SPEAKER AS-RADIO2
101305547 COVER-SPEAKER2
8T002448 SCREW (M4X0.7X30-MM)11
096616649 WASHER-HARD (4.5X9X1-MM THK)9
7Y529350 NUT-SPEED11
8Y574651 ASHTRAY1
8Y633352 GASKET (ASHTRAY)1
8Y638853 LOUVER AS-VENT8
095074254 SCREW-MACHINE (M6X1X16-MM)3
234013855 FILTER ELEMENT AS-CAB AIR (AIR CONDITIONER)1
3E430256 SCREW-FLAT HEAD (M4X0.7X10-MM)4
234014157 AIR CONDITIONER GP1
8T412158 WASHER-HARD (11X21X2.5-MM THK)4
8T413359 NUT (M10X1.5-THD)4
3E638960 LAMP GP-DOME (24-VOLT)(CAB)1
7N994361 LAMP (24-VOLT)(DOME)1
004681062 ELBOW4
243575163 UNION1
243575364 UNION1
2M190865 FITTING-BULKHEAD2
423198466 HOSE (143-IN EACH)
264000967 POTENTIOMETER AS (CAB TEMPERATURE CONTROL)1
110833868 KNOB-CONTROL (AIR TEMPERATURE)1
198657069 LIGHTER GP (12-VOLT)1
1986571ELEMENT AS-HEATER (12-VOLT)1
8T419170 BOLT (M10X1.5X16-MM)1
116011871 CLIP1
6V967272 SCREW-MACHINE (M4X0.7X16-MM)6
119335573 FILTER ELEMENT-CAB AIR (STANDARD EFFICIENCY)1
2338359FILTER ELEMENT-CAB AIR (ULTRA HIGH EFFICIENCY)1
2686704FILTER ELEMENT-CAB AIR (LOW RESTRICTION)1
234010374 HOSE AS1
8T265975 LOCKNUT (M4X0.7-THD)6
120902776 SCREW-PAN HEAD (M3X0.5X16-MM)4
096596277 WASHER-HARD (3.4X7X0.8-MM THK)4
9B111778 LOCKWASHER4
3C696979 NUT (M3X0.5-THD)4
130836080 GROMMET1
234010181 HARNESS AS-CHASSIS1
234010082 HARNESS AS-CAB1
242434783 HARNESS AS-PLATFORM (OPERATOR CONSOLE)1
1261767PIN-CONNECTOR (14-GA TO 16-GA)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)22
1261767PIN-CONNECTOR (14-GA TO 16-GA)22
9X7147PLUG AS-CONNECTOR (40-PIN)1
3E8557BOLT (M5X0.8X39.37-MM)1
3E4367RING-RETAINING1
9X3490SEAL-CONNECTOR (40-PIN)2
8T8737PLUG-SEAL18
9X0145RECEPTACLE AS-CONNECTOR (24-PIN)1
1945226TERMINAL AS (16-GA)22
1945227TERMINAL AS (14-GA)22
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)1
155200184 RETAINER2
180921485 NUT (1-11/16-18-THD)1
128424986 LOCKWASHER1
165402687 SWITCH AS-MAGNETIC (24-VOLT)(MAIN RELAY)1
4F2294NUT-JAM (5/16-24-THD)2
6V8186NUT-FULL (5/16-24-THD)2
6V8378NUT (10-32-THD)2
443636288 CONVERTER-POWER (24-VOLT TO 12-VOLT)1
189315889 SUPPRESSOR-ARC1
8T424490 NUT (M12X1.75-THD)1
200857791 CIRCUIT BREAKER AS (20-AMPERE)(LIGHTING)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
3T266292 CIRCUIT BREAKER AS (15-AMPERE, AUTOMATIC RESET)(AIR CONDITIONER, HEATER FAN)1
3T266292A CIRCUIT BREAKER AS (15-AMPERE, AUTOMATIC RESET)(WINDOW WIPER)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
068420993 SCREW (8-32X0.75-IN)6
2S164794 GROMMET2
5P568895 SEAL (1.3-M)
5P568895A SEAL (0.4-M)
234010496 HOSE AS1
234010297 HARNESS AS-PUMP (WINDOW WASHER)1
234004398 DOOR GP-CAB (LH)1
234005199 DOOR GP-CAB (RH)1
2340114100 HEADLINER1
2339967101 FLOOR MAT1
3091534102 SWITCH AS-ROCKER (AIR CONDITIONER, HEATER)1
3091534102A SWITCH AS-ROCKER (FAN BLOWER SPEED)1
3091533103 SWITCH AS-ROCKER (WINDOW WASHER)1
3091532104 SWITCH AS-ROCKER (FRONT WIPER)1
3091532104A SWITCH AS-ROCKER (REAR WIPER)1
3125529105 COVER-FILTER1
2340122106 CLIP-SPRING4
2596283107 FASTENER2
2470049108 ANGLE AS2
3V4694109 PLUG-BUTTON4
4194039110 PLATE-COVER1
2340113111 COVER-DASH1
