System And Components

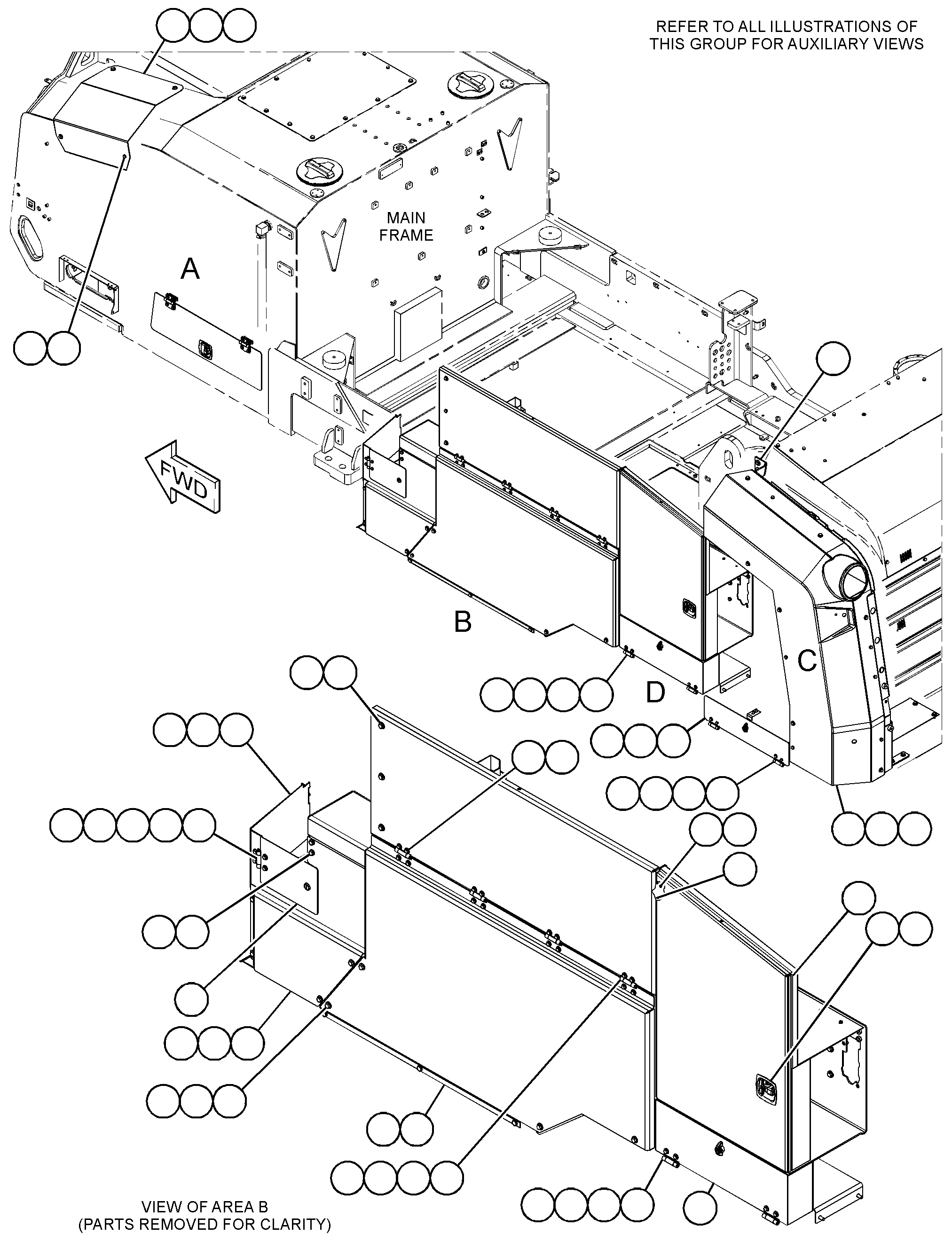

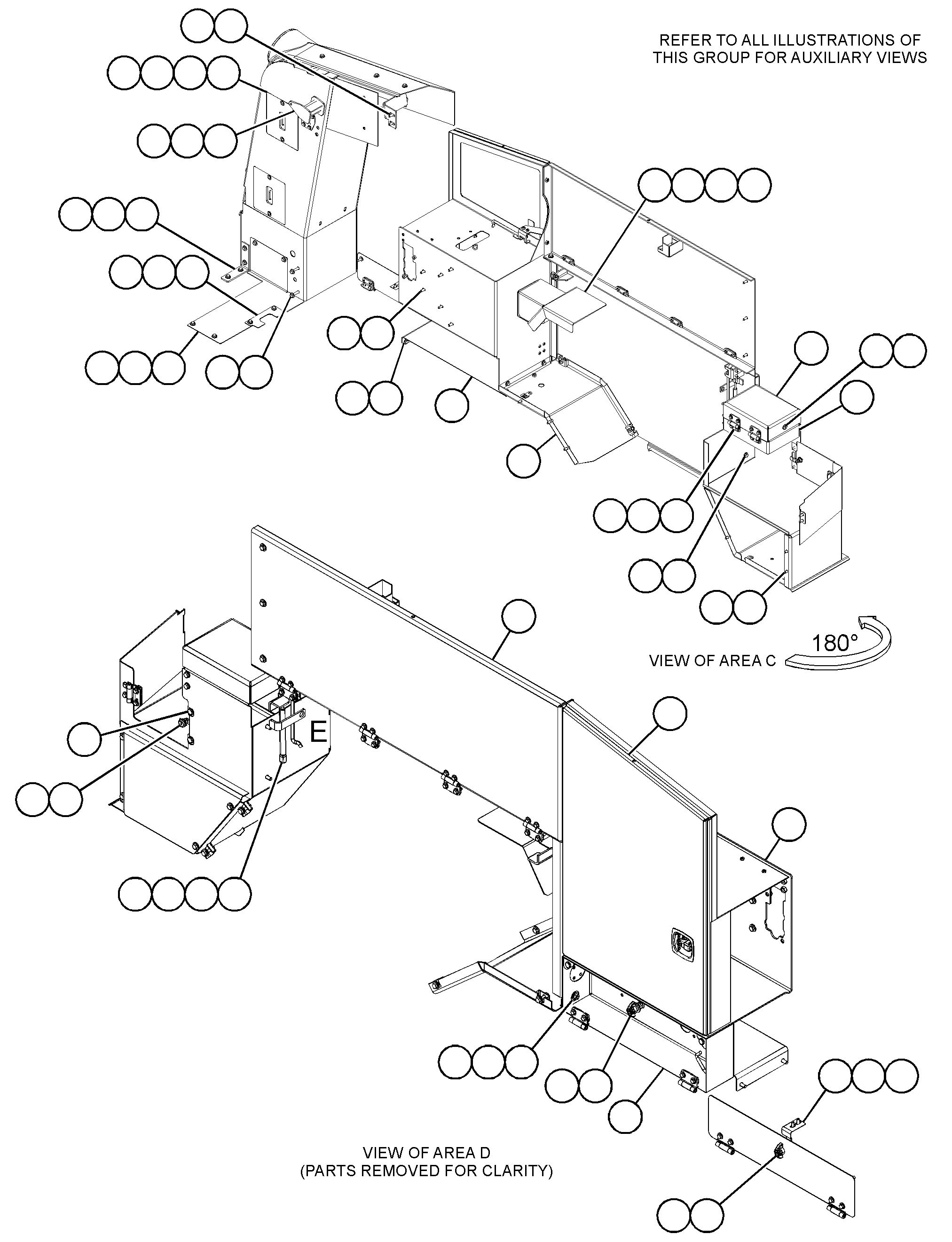

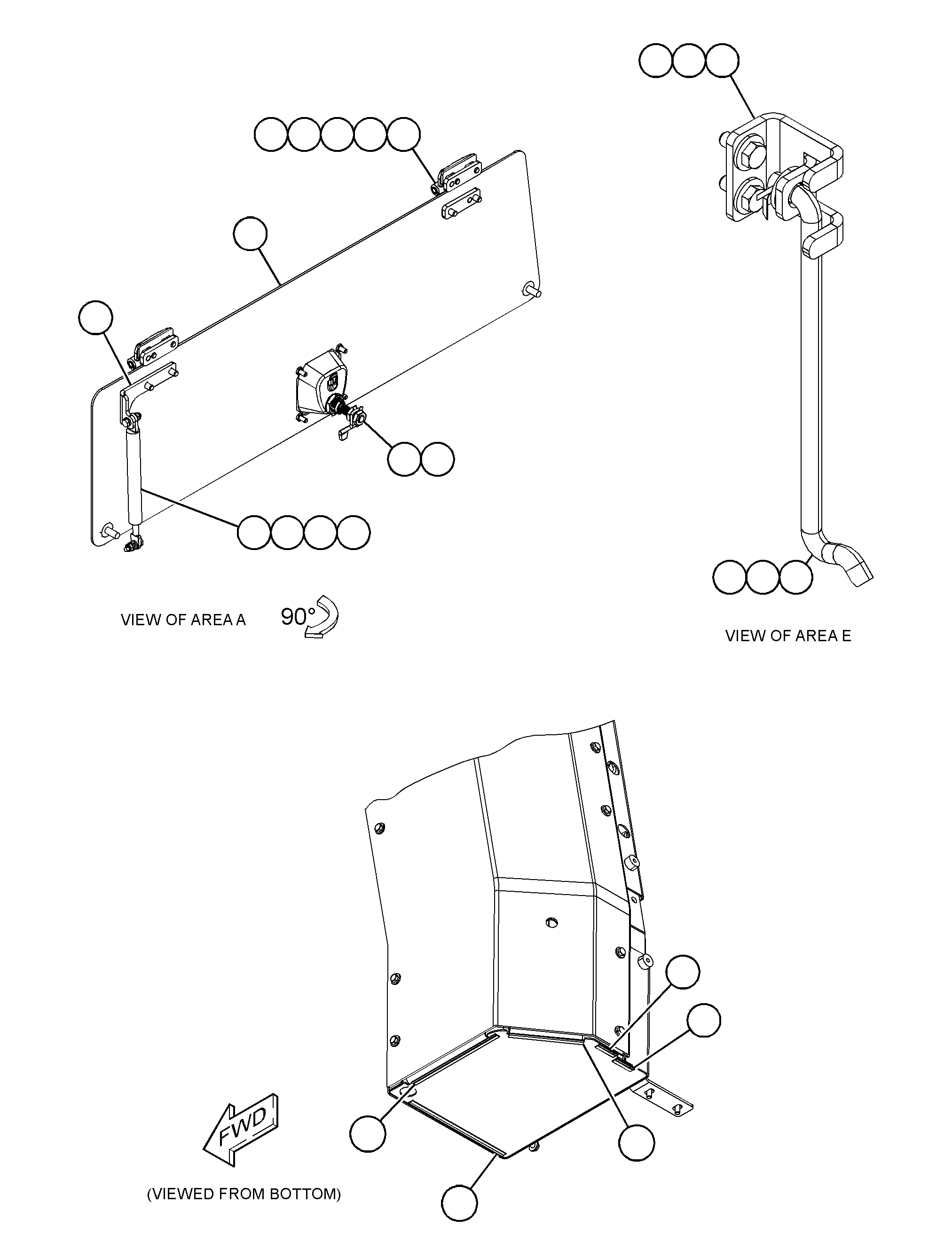

496-5014 DOOR GP-ACCESSS/N HC81-UP
Group No: 496-5014
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1617632 | 1 BOLT-SELF-LOCKING (M10X1.5X40-MM) | 4 | |
| 8T4195 | 2 BOLT (M10X1.5X30-MM) | 15 | |
| 8T6466 | 3 BOLT (M10X1.5X60-MM) | 2 | |
| 8T4189 | 4 BOLT (M8X1.25X20-MM) | 18 | |
| 3T0852 | 5 LOCKNUT (M8X1.25-THD) | 3 | |
| 8T4908 | 6 BOLT (M8X1.25X25-MM) | 37 | |
| 9X2125 | 7 BOLT-LOCKING (M10X1.5X25-MM) | 15 | |
| 5P4116 | 8 WASHER-HARD (8.8X20.5X2-MM THK) | 73 | |
| 7X7729 | 9 WASHER (11X25X3-MM THK) | 69 | |
| 8T4222 | 10 WASHER-PLATED (11X32X2.5-MM THK) | 2 | |
| 8T4224 | 11 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 1087756 | 12 ROD | 2 | |
| 1111777 | 13 BUMPER-RUBBER | 11 | |
| 2567669 | 14 PLATE | 17 | |
| 2567670 | 15 SPACER | 3 | |
| 2597000 | 16 SPRING-GAS | 1 | |
| 2869963 | 17 LATCH AS | 2 | |
| 2895247 | 18 CAM | 1 | |
| 3053156 | 19 PAWL | 1 | |
| 3053169 | 20 PAWL | 1 | |
| 3336459 | 21 BRACKET | 2 | |
| 3879574 | 22 DOOR AS (FUEL) | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 4 | |
| 3879576 | 23 DOOR (FUEL FILL) | 1 | |
| 3896955 | 24 LOCK AS | 2 | |
| 3972993 | 25 COVER | 1 | |
| 3974849 | 26 SPRING AS-GAS (DOOR) | 2 | |
| 3974851 | 27 PLATE | 1 | |
| 3986427 | 28 BRACKET | 1 | |
| 4642541 | 29 DOOR (FRONT) | 1 | |
| 4642542 | 30 DOOR (REAR LOWER, LH) | 1 | |
| 4642543 | 31 BRACKET | 1 | |
| 1293178 | 32 LOCKNUT (M6X1-THD) | 2 | |
| 2225151 | 33 PAWL | 2 | |
| 2895248 | 34 CAM | 1 | |
| 3260610 | 35 LATCH AS | 2 | |
| 0966331 | NUT (M12X1.75-THD) | 2 | |
| 1H3244 | LOCKWASHER | 4 | |
| 3260612 | WASHER-TAB | 2 | |
| 3445673 | NUT (M6X1-THD) | 4 | |
| 3426093 | 36 STUD-BALL | 3 | |
| 3445674 | 37 NUT (M8X1.25-THD) | 2 | |
| 3445675 | 38 NUT (M10X1.5-THD) | 1 | |
| 3899524 | 39 COVER | 1 | |
| 3B4617 | 40 PIN-COTTER | 2 | |
| 4642498 | 41 BOX AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 4 | |
| 7T1099 | LINK | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 10 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 1305300 | CLIP | 1 | |
| 8T8874 | NUT-WELD (M5X0.8-THD) | 2 | |
| 4642511 | 42 PANEL AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 1 | |
| 4642514 | 43 DOOR AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 1 | |
| 1533723 | HINGE AS | 3 | |
| 8T5447 | RING-RETAINING | 1 | |
| 4642518 | 44 BOX AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 4 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 4 | |
| 2377506 | HOOK | 1 | |
| 4642525 | 45 DOOR (LH) | 1 | |
| 4649653 | 46 PLATE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 4 | |
| 4898228 | 47 HINGE AS | 13 | |
| 4965189 | 48 PLATE AS | 1 | |
| 1305300 | CLIP | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 4965191 | 49 COVER AS-FUEL | 1 | |
| 7T1099 | LINK | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 11 | |
| 4965198 | 50 DOOR AS | 1 | |
| 4I3255 | 51 NUT-PUSH ON | 4 | |
| 5071739 | 52 PANEL AS | 1 | |
| 5529761 | 53 GUARD AS-BELT | 1 | |
| 5385131 | 54 STORAGE AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 21 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 7T1099 | LINK | 6 | |
| 1305300 | CLIP | 1 | |
| 5391954 | 55 COVER-RUBBER | 1 | |
| 5391955 | 56 COVER AS | 2 | |
| 5391956 | 57 FOAM | 2 | |
| 5391958 | 58 COVER-RUBBER | 1 | |
| 5392463 | 59 COVER AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 5403135 | 60 COVER | 1 | |
| 6R7943 | 61 SCREW (M5X0.8X15-MM) | 6 | |
| 6V7357 | 62 BOLT (M6X1X25-MM) | 2 | |
| 8T0328 | 63 WASHER-HARD (5.5X10X1-MM THK) | 6 | |
| 8T4121 | 64 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4136 | 65 BOLT (M10X1.5X25-MM) | 20 | |
| 8T4137 | 66 BOLT (M10X1.5X20-MM) | 16 | |
| 8T4223 | 67 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4192 | 68 BOLT (M12X1.75X25-MM) | 2 | |
| 8T5091 | 69 BOLT (M8X1.25X20-MM) | 3 | |
| 8T5447 | 70 RING-RETAINING | 3 | |
| 9X8256 | 71 WASHER (6.6X12X2-MM THK) | 6 | |
| 8T4200 | 72 BOLT (M8X1.25X16-MM) | 12 | |
| 1268472 | 73 SEAL (85-CM) | ||
| 1455664 | 74 SEAL (5.5-CM EACH) | ||
| 1455664 | 74A SEAL (16.5-CM) | ||
| 1455664 | 74B SEAL (26-CM) | ||
| 1455664 | 74C SEAL (28.5-CM) |
