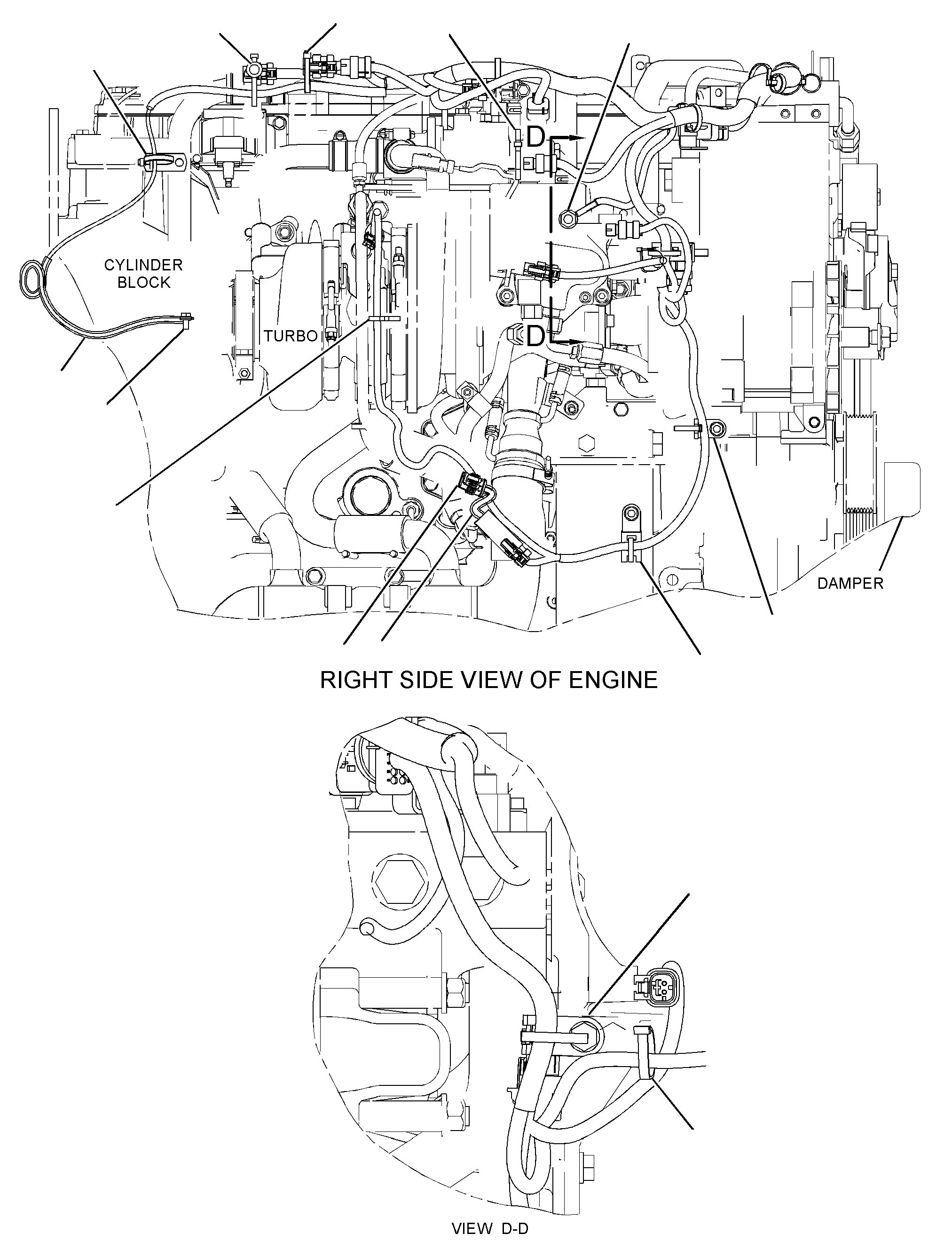

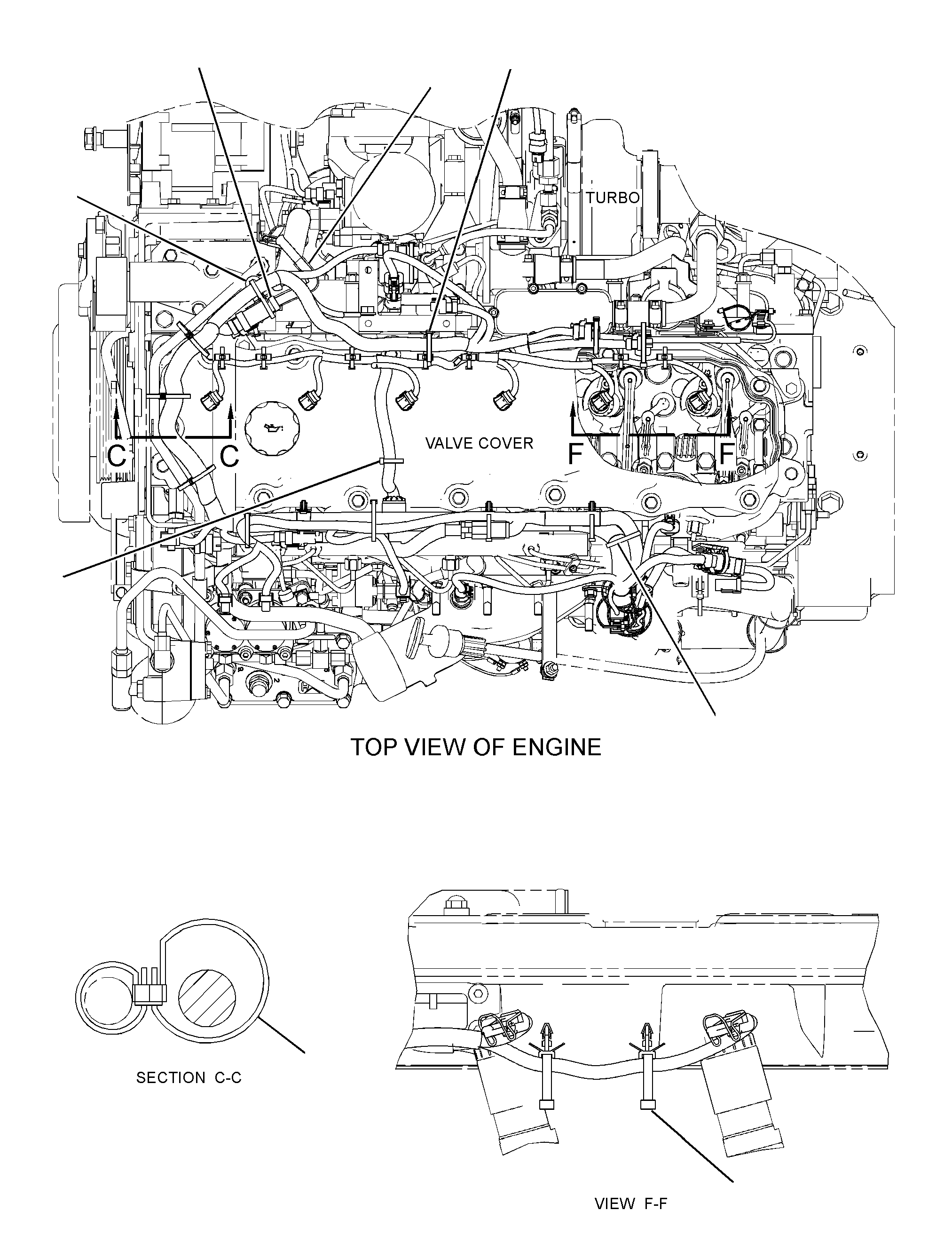

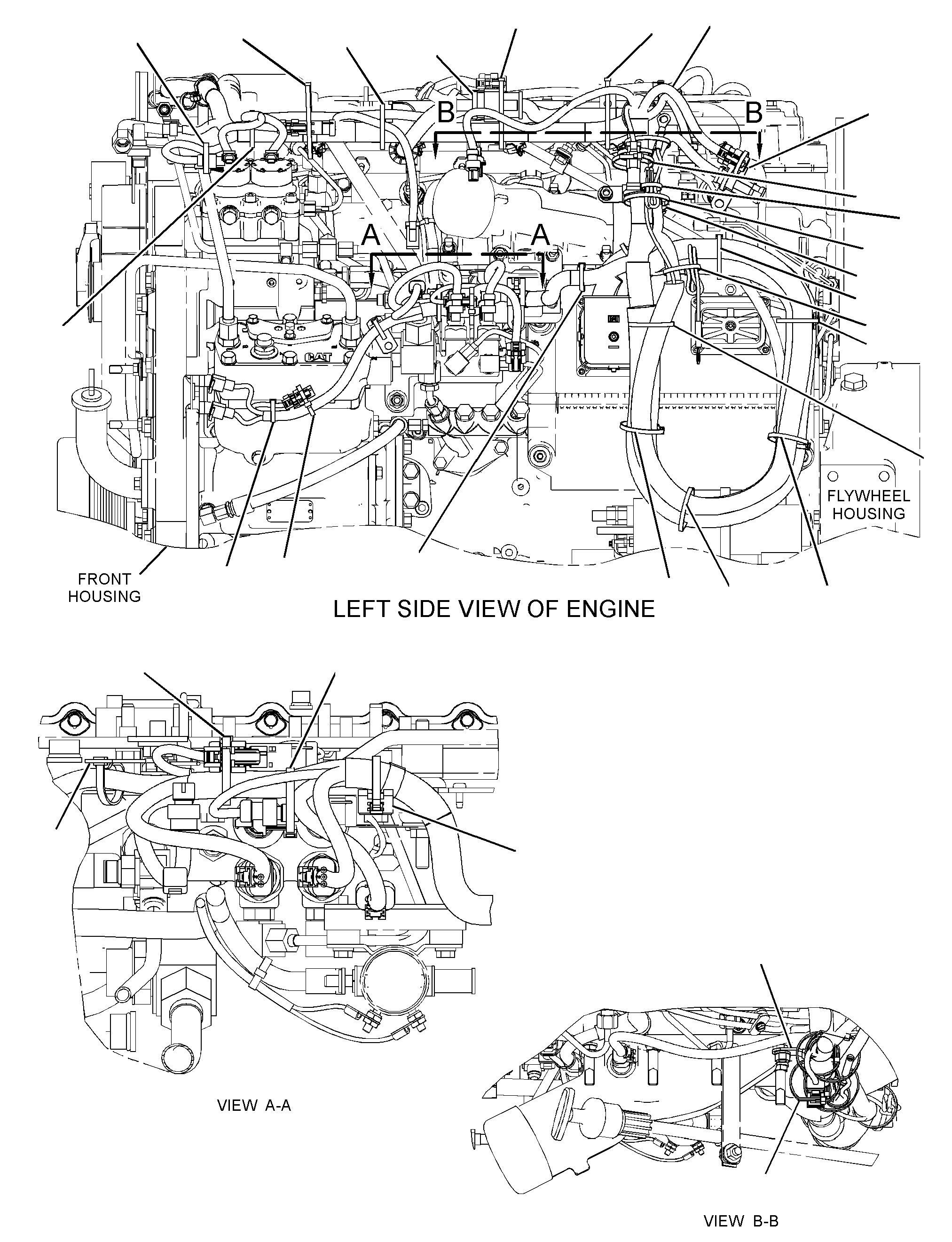

274-1501 WIRING GP-ENGINE ELECTRONICS/N C7S204-UP

Group No: 274-1501
Part NumberPart NameQty
3S20931 STRAP-CABLE16
4P59182 CLIP2
10517973 MOUNT7
20416114 STRAP-CABLE (DUAL)3
20613455 STRAP-CABLE3
20613466 STRAP-CABLE1
27587407 HARNESS AS-SENSOR (TURBOCHARGER SPEED)1
2175888PLUG AS-CONNECTOR (3-PIN)1
2304011PLUG AS-CONNECTOR (2-PIN)1
27817398 HARNESS AS-SENSOR (ENGINE)(CGI, TURBOCHARGER SPEED,MAF)1
8T8737PLUG-SEAL2
1552265KIT-CONNECTING PLUG (8-PIN)1
2304011PLUG AS-CONNECTOR (2-PIN)1
2304013PLUG AS-CONNECTOR (3-PIN)1
2305008PLUG AS-CONNECTOR (4-PIN)1
28010899 HARNESS AS-ENGINE (UNIT INJECTOR)1
6N7523WASHER (6.48X11.9X1.57-MM THK)1
1355975GROMMET-WIRING1
1552255KIT-CONNECTING PLUG (12-PIN)1
280114910 HARNESS AS-SENSOR (ELECTRONIC CONTROL MODULE)1
1028801KIT-RECEPTACLE (12-PIN)2
1028802KIT-RECEPTACLE (2-PIN)1
1028805KIT-RECEPTACLE (6-PIN)1
1028806KIT-RECEPTACLE (8-PIN)1
1003320PLUG AS-CONNECTOR (2-PIN)1
1265011SEAL-CONNECTOR1
1006674SEAL-CONNECTOR2
1111567SOCKET-TERMINAL4
1112416PLUG AS-CONNECTOR (2-PIN)1
1265011SEAL-CONNECTOR1
1552270KIT-CONNECTING PLUG (2-PIN)4
1552274KIT-CONNECTING PLUG (6-PIN)1
2116807COVER-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)11
2304013PLUG AS-CONNECTOR (3-PIN)6
2305008PLUG AS-CONNECTOR (4-PIN)2
2370227PLUG AS-CONNECTOR (3-PIN)1
2645732PLUG AS-CONNECTOR (120-PIN)1
101362511 CLIP (LADDER)1
123320212 STRAP-CABLE3
132578913 CLIP (LADDER)5
2Y582914 NUT (M10X1.5-THD)1
4P758115 CLIP (LADDER)3
5C726116 NUT (M8X1.25-THD)3
5P797017 NUT (M8X1.25-THD)1
6V231718 BOLT (M8X1.25X30-MM)1
6V521719 BOLT (M8X1.25X20-MM)1
6V583920 WASHER (11X21X2.5-MM THK)1
6V883621 BOLT (M6X1X14-MM)1
7K118122 STRAP-CABLE26
8T422423 WASHER-HARD (8.8X16X2-MM THK)2
9M197424 WASHER-HARD (8.8X16X2-MM THK)3
9X826725 WASHER (6.6X12X2-MM THK)1
284149226 SLEEVE (20-CM)
284149127 SLEEVE (42-CM)
