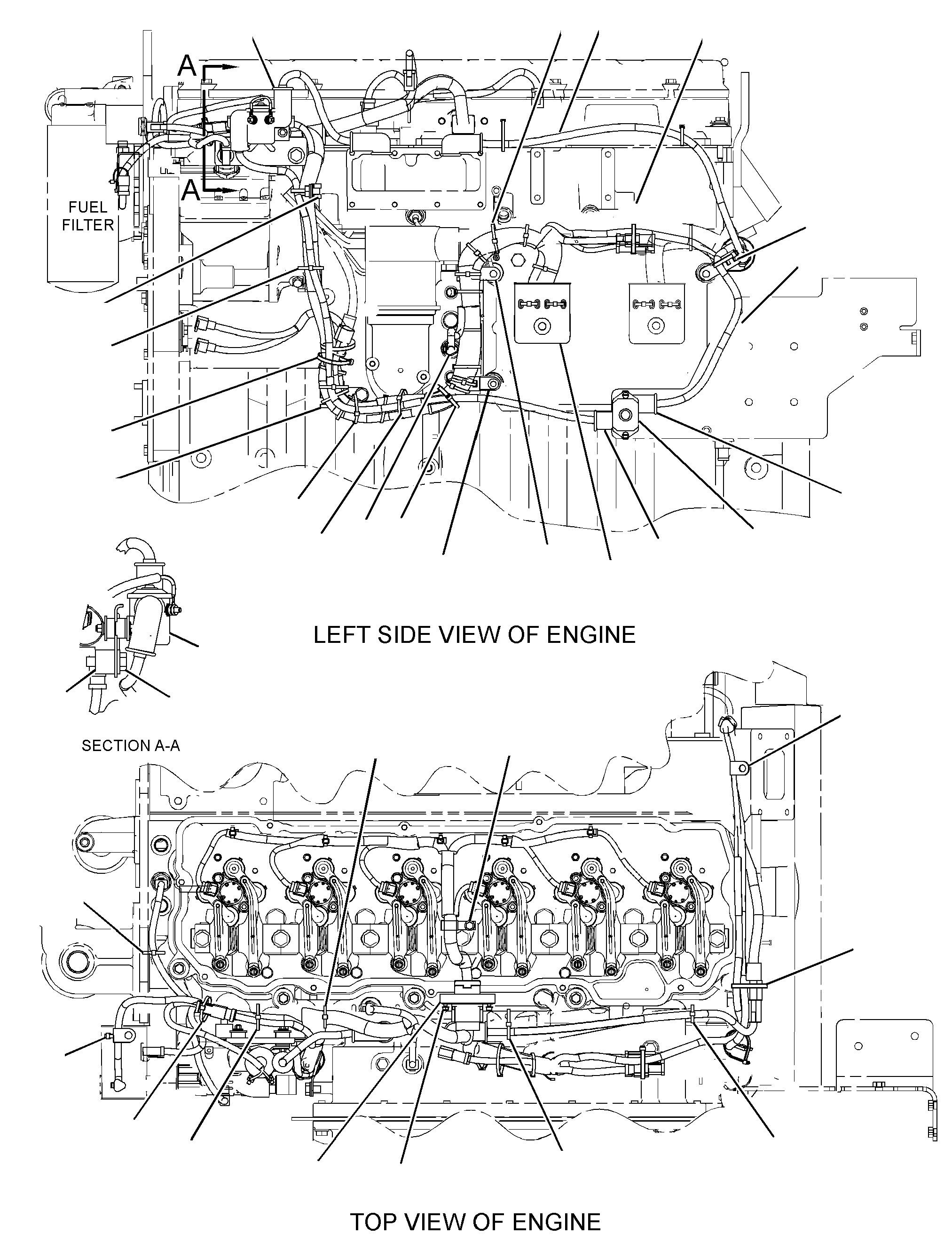

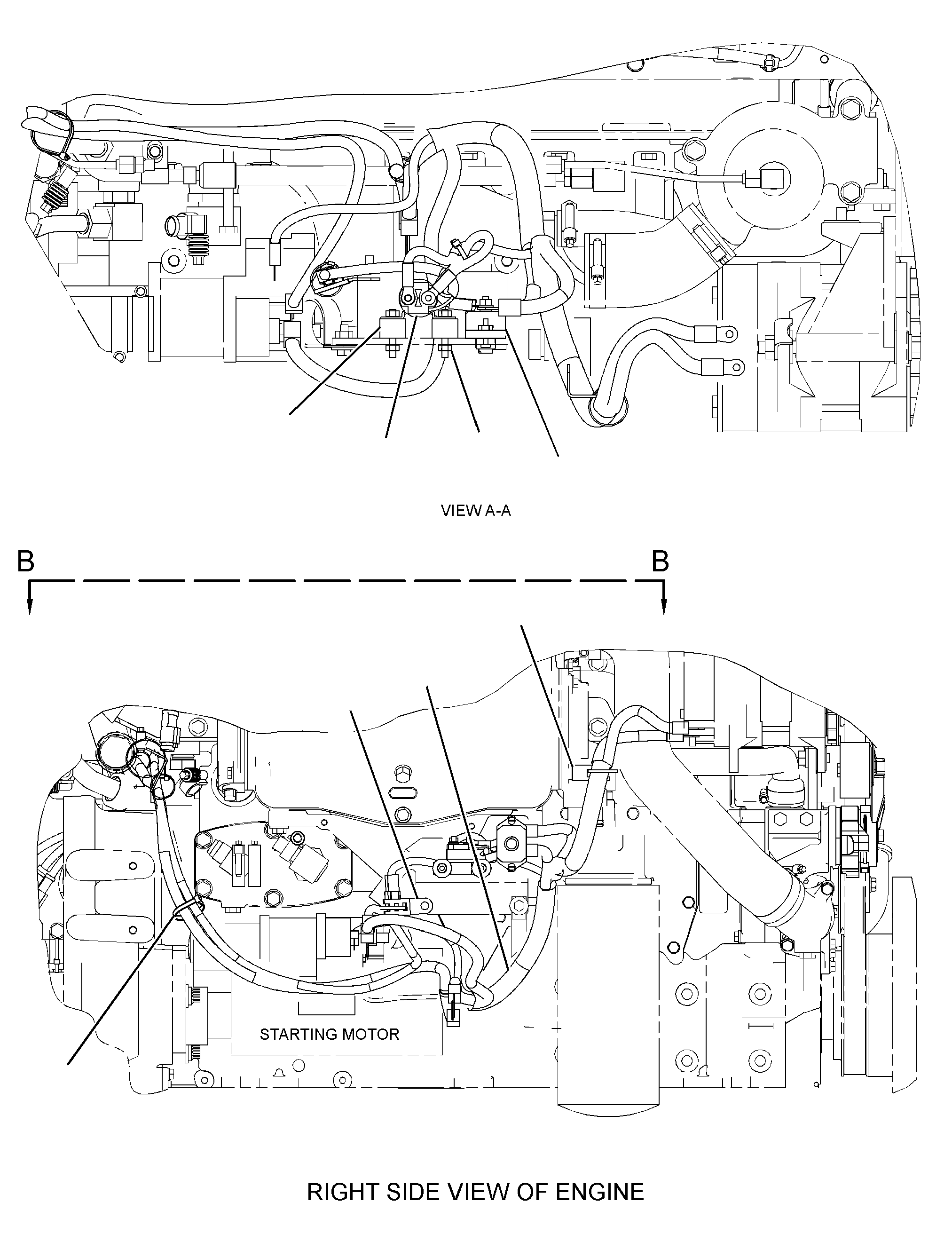

242-1595 WIRING GP-ENGINES/N C9J379-UP

Group No: 242-1595
Part NumberPart NameQty
3E00751 SWITCH GP-MAGNETIC (24-VOLT)(STARTER RELAY)1
3S20932 STRAP-CABLE25
7P79133 MOUNT2
9X23324 CLIP1
10131205 SPACER (10.5X25X20-MM THK)2
17122136 CIRCUIT BREAKER AS (135-AMPERE)1
2532111LOCKWASHER2
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
17817807 CLIP1
29353938 HARNESS AS-SENSOR1
1028802KIT-RECEPTACLE (2-PIN)3
1028803KIT-RECEPTACLE (3-PIN)2
3S2093STRAP-CABLE2
1003320PLUG AS-CONNECTOR (2-PIN)1
1265011SEAL-CONNECTOR1
1112416PLUG AS-CONNECTOR (2-PIN)1
1265011SEAL-CONNECTOR1
1261774COVER-CONNECTOR1
1552270KIT-CONNECTING PLUG (2-PIN)7
1607690PLUG AS-CONNECTOR (70-PIN)1
1599322SEAL-O-RING1
1552260KIT-CONNECTING PLUG (3-PIN)5
1726062PLUG AS-CONNECTOR (18-PIN)1
20171809 HARNESS AS-WIRING (STARTING MOTOR)1
3S2093STRAP-CABLE2
1275484RECEPTACLE AS-CONNECTOR (1-PIN)1
205372910 WIRE AS1
215324911 HARNESS AS-ENGINE (UNIT INJECTOR)1
1917823RECEPTACLE AS1
3S2093STRAP-CABLE5
224137412 WIRE AS1
224137713 CABLE AS1
224137814 WIRE AS1
033481415 SCREW (10-32X1-IN)4
132578916 CLIP (LADDER)3
171221117 CIRCUIT BREAKER AS (90-AMPERE)1
1H3244LOCKWASHER2
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
1H333818 LOCKWASHER4
223445319 SWITCH GP-MAGNETIC (24-VOLT)(INLET AIR HEATER)1
3E435320 WASHER-HARD (11X25X3-MM THK)2
4P758121 CLIP (LADDER)5
6V382222 BOLT (M10X1.5X35-MM)2
7I227223 BOLT (M5X0.8X12-MM)2
8T032824 WASHER-HARD (5.5X10X1-MM THK)2
8T412125 WASHER-HARD (11X21X2.5-MM THK)1
8T419126 BOLT (M10X1.5X16-MM)1
8T420527 WASHER-HARD (7.2X14.5X2-MM THK)1
8T545128 BOLT (M6X1X12-MM)1
9S875030 NUT-FULL (1/4-20-THD)4
8T420031 BOLT (M8X1.25X16-MM)1
8T422432 WASHER-HARD (8.8X16X2-MM THK)1
