System And Components

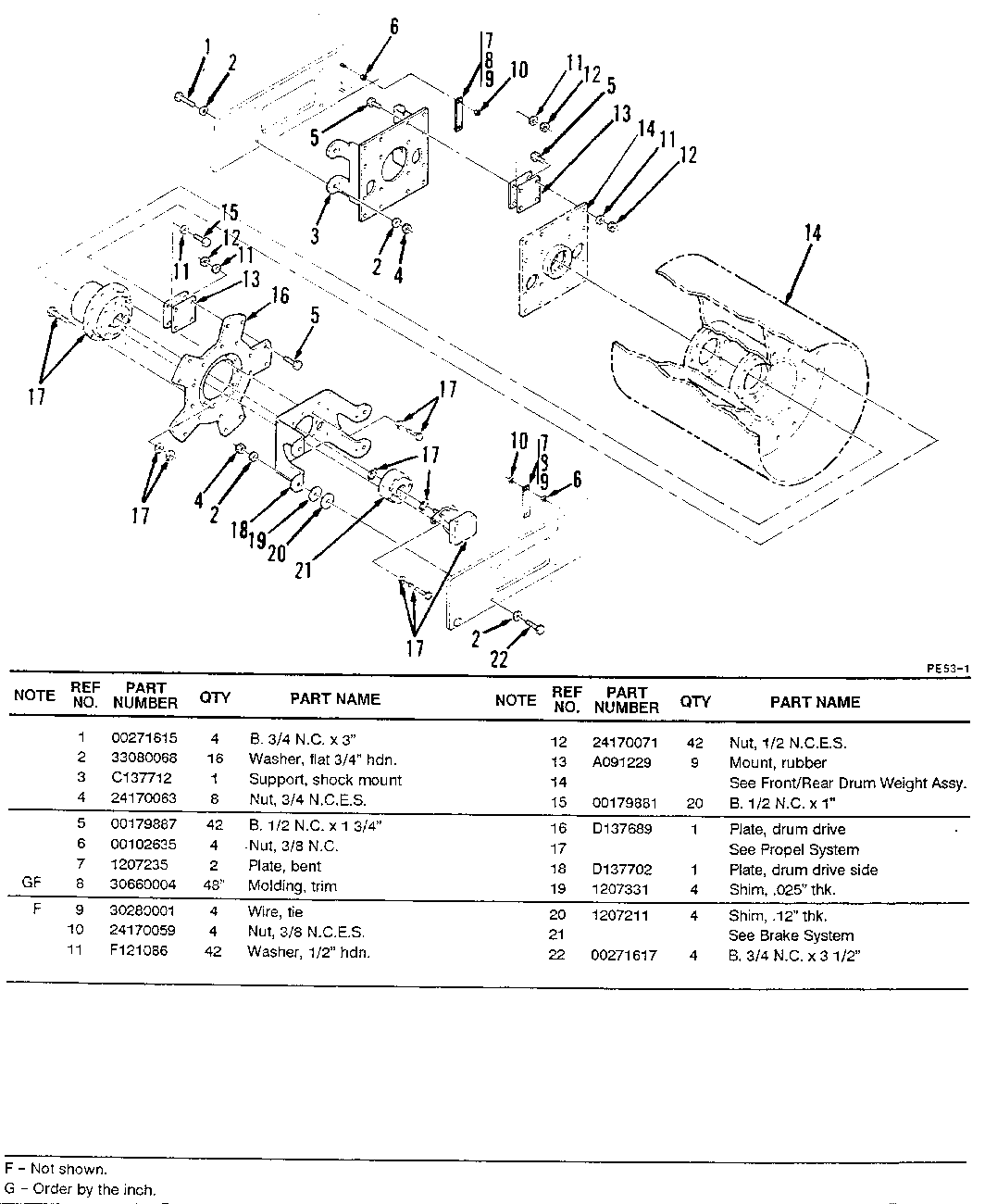

FRONT DRUM MOUNTING ASSEMBLY
Group No: FRONT
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 00271615 | 1 B. 3/4 N.C. X 3" | 4 | |
| 33080068 | 2 WASHER, FLAT 3/4" HDN. | 16 | |
| C137712 | 3 SUPPORT, SHOCK MOUNT | 1 | |
| 24170063 | 4 NUT, 3/4 N.C.E.S. | 8 | |
| 00179887 | 5 B. 1/2 N.C. X 1 3/4" | 42 | |
| 00102635 | 6 NUT, 3/8 N.C. | 4 | |
| 1207235 | 7 PLATE, BENT | 2 | |
| 30660004 | 8 MOLDING, TRIM | 48IN. | |
| 30280001 | 9 WIRE, TIE | 4 | |
| 24170059 | 10 NUT, 3/8 N.C.E.S. | 4 | |
| F121086 | 11 WASHER, 1/2" HDN. | 42 | |
| 24170071 | 12 NUT, 1/2 N.C.E.S. | 42 | |
| A091229 | 13 MOUNT, RUBBER | 9 | |
| 00179881 | 15 B. 1/2 N.C. X 1" | 20 | |
| D137689 | 16 PLATE, DRUM DRIVE | 1 | |
| D137702 | 18 PLATE, DRUM DRIVE SIDE | 1 | |
| 1207331 | 19 SHIM, .025" THK. | 4 | |
| 1207211 | 20 SHIM, .12" THK. | 4 | |
| 00271617 | 22 B. 3/4 N.C. X 3 1/2" | 4 |
