System And Components

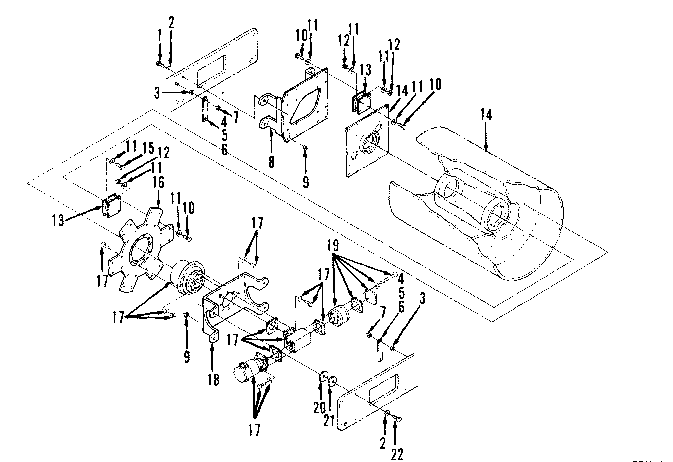

FRONT DRUM MOUNTING ASSEMBLY
Group No: FRONT
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 00271615 | 1 B. 3/4 N.C. X 3" | 8 | |
| 33080068 | 2 WASHER, 3/4 HARDENED | 8 | |
| 00102635 | 3 NUT, 3/8 N.C. | 4 | |
| 1207235 | 4 PLATE | 2 | |
| 00101134 | 5 GUARD, HOSE | 2 | |
| 30280001 | 6 WIRE, TIE | 12" | |
| 24170059 | 7 NUT, 3/8 N.C.E.S. | 4 | |
| 1207026 | 8 SUPPORT, SHOCK MOUNT | 1 | |
| 24170063 | 9 NUT, 3/4 N.C.E.S. | 8 | |
| 00186646 | 10 B. 1/2 N.C. X 1 3/4" | 16 | |
| 33080091 | 11 WASHER, 1/2 HARDENED | 136 | |
| 24170258 | 12 NUT, 1/2 N.C.E.S. HI-TENSILE | 56 | |
| A091229 | 13 MOUNT, RUBBER | 10 | |
| (NONE) | 14 SEE FRONT/REAR DRUM WEIGHT ASSY. | ||
| 00454989 | 15 B. 1/2 N.C. X 1" GR. 8 | 24 | |
| 1207207 | 16 PLATE | 1 | |
| (NONE) | 17 SEE PROPEL SYSTEM | ||
| 1207208 | 18 PLATE, BENT | 1 | |
| (NONE) | 19 SEE BRAKE SYSTEM | ||
| 0980249 | 20 SEAL | 4 | |
| 1207211 | 21 SHIM, .12" | 4 | |
| 00271617 | 22 B. 3/4 N.C. X 3 1/2" | 4 |
