System And Components

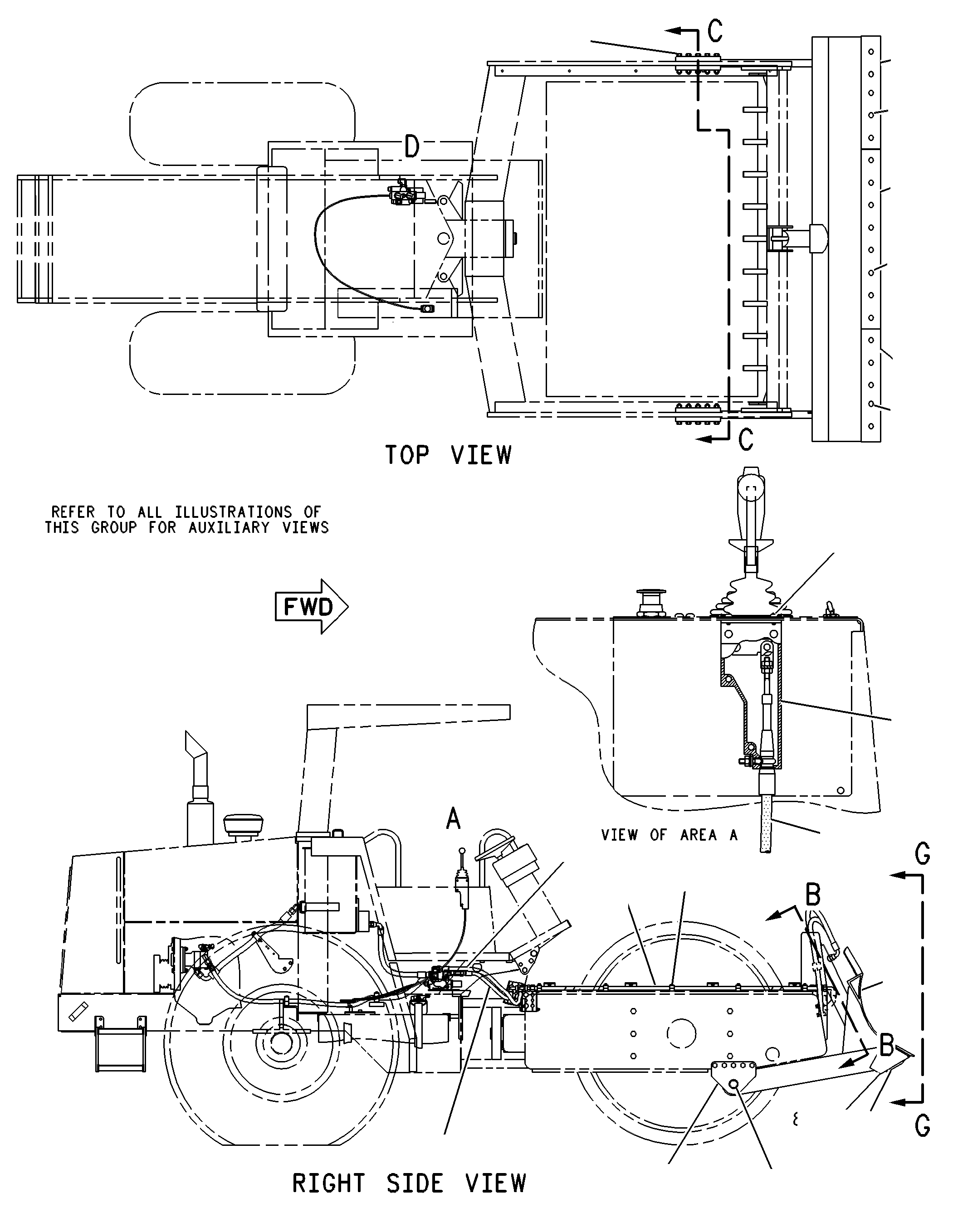

131-2924 BLADE GP-LEVELINGS/N 3YN75-UP
Group No: 131-2924
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5E8827 | 1 CABLE | 1 | |
| 1024610 | 2 TUBE AS | 2 | |
| 1291319 | 3 BLADE AS | 1 | |
| 7V6659 | 4 CLAMP-DOUBLE | 10 | |
| 7X8117 | 5 PLATE | 2 | |
| 4F3654 | 6 BOLT-PLOW (5/8-11X2-IN) | 22 | |
| 8T4122 | 7 WASHER-HARD (17X32X3.5-MM THK) | 22 | |
| 3E9861 | 8 LOCKNUT (5/8-11-THD) | 22 | |
| 1026744 | 9 EDGE-CUTTING | 2 | |
| 1026745 | 10 EDGE-CUTTING | 1 | |
| 4V0612 | 11 PLATE | 7 | |
| 7X0440 | 12 BOLT (5/16-18X1.75-IN) | 7 | |
| 1257864 | 13 HOSE AS | 1 | |
| 1227129 | 14 HOSE AS | 1 | |
| 2N3680 | 15 SCREW-HEAD (1/4-20X0.75-IN) | 2 | |
| 7R3147 | 16 CONTROL GP-BLADE | 1 | |
| 3B8489 | 17 FITTING-GREASE (1/8-27 PTF) | 2 | |
| 8G4189 | 18 BEARING-SELF-ALIGNING | 2 | |
| 9X6496 | 19 RING-RETAINING | 4 | |
| 7X8086 | 20 SUPPORT AS-BLADE | 4 | |
| 7X0264 | 21 BOLT (1/4-20X2.5-IN) | 2 | |
| 7R7638 | 22 CYLINDER GP-HYDRAULIC | 1 | |
| 7R7939 | 23 CLAMP-PIPE | 2 | |
| 3B8488 | 24 FITTING-GREASE (1/8-27 PTF) | 1 | |
| 7R7951 | 25 PLATE | 1 | |
| 8C8989 | 26 ELBOW | 1 | |
| 8T5429 | 27 ELBOW | 1 | |
| 5P2955 | 28 BOLT (5/16-18X2.5-IN) | 2 | |
| 9V8409 | 29 CLAMP | 6 | |
| 7X0275 | 30 BOLT (5/16-18X3.25-IN) | 1 | |
| 3E9860 | 31 LOCKNUT (5/16-18-THD) | 1 | |
| 7X0533 | 32 WASHER-HARD (34X55X6-MM THK) | 4 | |
| 7X0436 | 33 BOLT (1-1/4-7X9-IN) | 1 | |
| 2J5997 | 34 LOCKNUT (1-1/4-7-THD) | 2 | |
| 1209704 | 35 CHANNEL | 1 | |
| 8T4121 | 36 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4136 | 37 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4994 | 38 WASHER-HARD (20X36.5X3.5-MM THK) | 10 | |
| 7X0373 | 39 BOLT (3/4-10X5.5-IN) | 10 | |
| 3E9862 | 40 LOCKNUT (3/4-10-THD) | 10 | |
| 7X8087 | 41 SHIM (1.52-MM THK) | 6 | |
| 7X8088 | 42 SHIM (3.05-MM THK) | 6 | |
| 7X8115 | 43 WASHER (25.4X76.2X6.35-MM THK) | 4 | |
| 7X8092 | 44 TUBE | 2 | |
| 1J5929 | 45 BOLT (1-8X6-IN) | 2 | |
| 3E9864 | 46 LOCKNUT (1-8-THD) | 2 | |
| 7X8093 | 47 SPACER (60.3X75X9.65-MM THK) | 4 | |
| 7V6234 | 48 PLATE | 4 | |
| 0775470 | 49 BUSHING-TERMINAL | 1 | |
| 7X0429 | 50 BOLT (1-1/4-7X4.5-IN) | 1 | |
| 1024630 | 51 HOSE AS | 2 | |
| 1227130 | 52 PLATE AS | 2 | |
| 8V5718 | 53 CLAMP | 4 | |
| 1244845 | 54 HOSE AS | 1 | |
| 7X8327 | 55 PLATE | 1 | |
| 8T4896 | 56 WASHER-HARD (10.2X18.5X2.5-MM THK) | 5 | |
| 4L6454 | 57 BOLT (3/8-16X1-IN) | 2 | |
| 7X8382 | 58 VALVE GP-CONTROL | 1 | |
| 1125359 | 59 HOSE AS | 1 | |
| 3D2824 | 60 SEAL-O-RING | 4 | |
| 6V9007 | 61 ELBOW | 2 | |
| 6V9746 | 62 SEAL-O-RING | 9 | |
| 6V1722 | 63 ADAPTER | 1 | |
| 6V8398 | 64 SEAL-O-RING | 3 | |
| 8T1686 | 65 ADAPTER-ELBOW | 1 | |
| 3K0360 | 66 SEAL-O-RING | 1 | |
| 8T9377 | 67 BOLT (3/8-16X2.25-IN) | 3 | |
| 3K6060 | 68 LOCKNUT (3/8-16-THD) | 3 | |
| 8T4205 | 69 WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 4M5281 | 70 BOLT (1/4-20X0.75-IN) | 2 |
