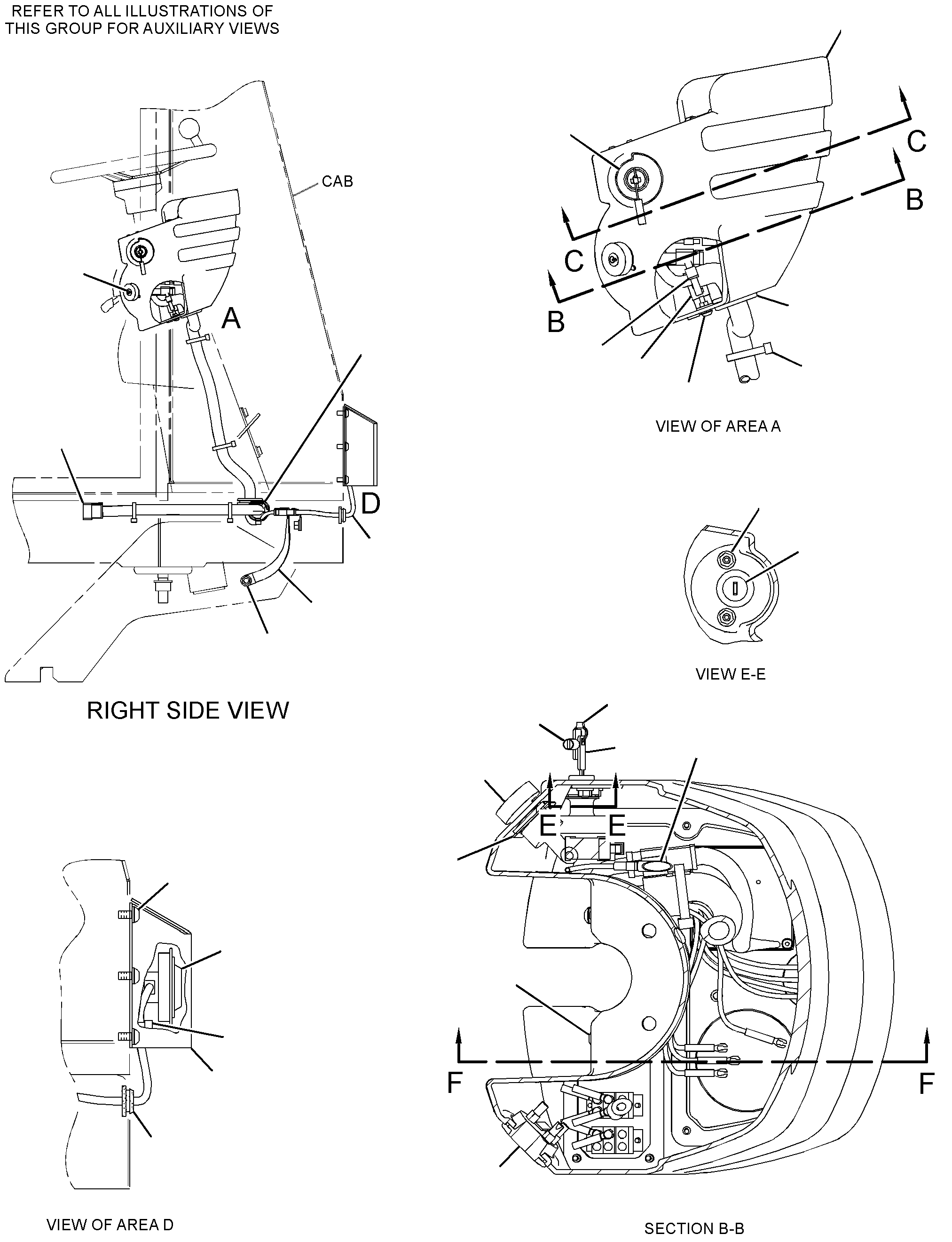

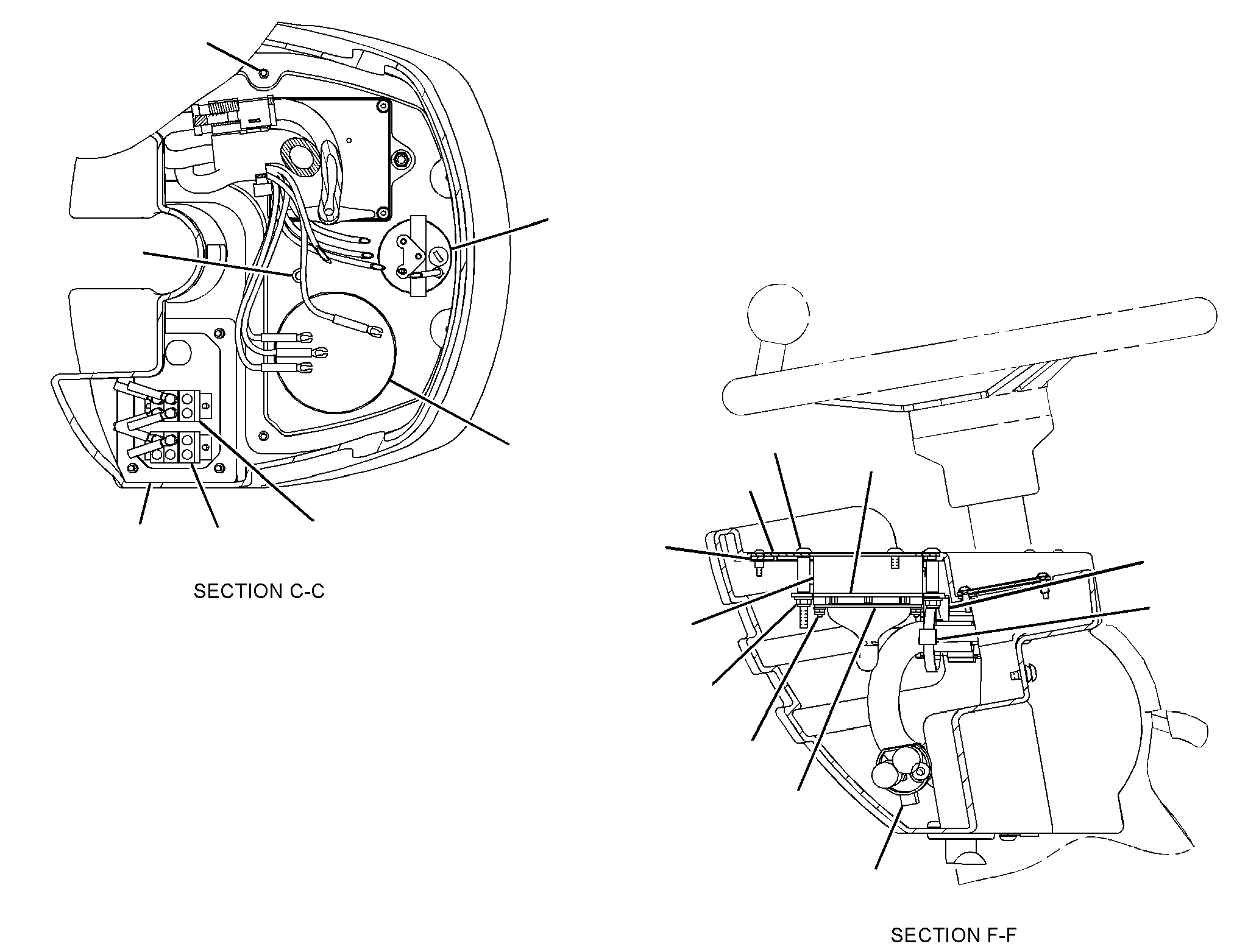

255-8026 PANEL GP-INSTRUMENT -CENTER CONSOLES/N CEB207-UP; ASZ1-UP
Group No: 255-8026
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 1 | |
| 5P8500 | 3 KEY (IGNITION) | 2 | |
| 6T6329 | 4 BEZEL | 2 | |
| 6V8927 | 5 BOLT-SOCKET HEAD (6-32X0.5-IN) | 4 | |
| 6Y6584 | 6 STRAP AS-GROUND | 1 | |
| 7X1357 | 7 SPACER (4.22X9.52X6.35-MM THK) | 4 | |
| 1046216 | 8 PLUG | 1 | |
| 1107887 | 9 SWITCH AS-START (KEY) | 1 | |
| 7T6799 | NUT-MOUNTING (1-32-THD) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1555234 | 10 GAUGE GP-FUEL LEVEL (24-VOLT) | 1 | |
| 1215327 | 11 GROMMET | 1 | |
| 1286157 | 12 PLATE | 1 | |
| 1288617 | 13 PLATE AS | 1 | |
| 1297184 | 14 FILM-INSTRUCTION (ENGINE START) | 1 | |
| 1631201 | 15 HORN AS (24-VOLT, LOW TONE) | 1 | |
| 1808049 | 16 SCREW-TRUSS HEAD (M6X1X60-MM) | 2 | |
| 1809900 | 17 CAP AS | 1 | |
| 5P7958 | SLEEVE-CABLE SPLICE | 1 | |
| 8C6354 | CAP-RECEPTACLE (ET CONNECTOR) | 1 | |
| 1799392 | LANYARD | 1 | |
| 3017292 | 18 KIT-SERVICE METER | 1 | |
| 2012733 | 19 FILM-INFORMATION (INPUT/OUTPUT) | 1 | |
| 2673914 | 20 HARNESS AS-PANEL (CENTER CONSOLE) | 1 | |
| 2147119 | 21 PLATE | 1 | |
| 2151444 | 22 FILM-INSTRUCTION (INSTRUMENT PANEL) | 1 | |
| 2169021 | 23 CONSOLE GP-INSTRUMENT | 1 | |
| 2177337 | 24 SPACER (7.02X10.32X30-MM THK) | 2 | |
| 2191672 | 25 SEAL | 1 | |
| 2212928 | 26 PLATE | 1 | |
| 2214495 | 27 SEAL | 1 | |
| 2292314 | 28 HOUSING | 1 | |
| 2305455 | 29 PLATE | 1 | |
| 2308093 | 30 FILM-IDENTIFICATION (INSTRUMENT PANEL) | 1 | |
| 2372711 | 31 SEAL | 1 | |
| 2487650 | 32 GUARD | 1 | |
| 2539942 | 33 HARNESS AS-AUXILIARY (HORN) | 1 | |
| 1293178 | 34 LOCKNUT (M6X1-THD) | 2 | |
| 1414976 | 35 SCREW-WASHER HEAD (4-40X0.5-IN) | 2 | |
| 1566175 | 36 CLIP (LADDER) | 1 | |
| 2N3476 | 37 SCREW-MACHINE (6-32X0.75-IN) | 4 | |
| 4B5324 | 38 WASHER (3.9X9.6X1.2-MM THK) | 4 | |
| 4P8134 | 39 CLIP (LADDER) | 1 | |
| 5C2890 | 40 NUT (M6X1-THD) | 3 | |
| 5P4115 | 41 WASHER-HARD (7.2X19X2-MM THK) | 1 | |
| 6P0699 | 42 GROMMET | 1 | |
| 6V8212 | 43 BOLT (M10X1.5X16-MM) | 1 | |
| 7D6922 | 44 LOCKNUT (6-32-THD) | 4 | |
| 7K1181 | 45 STRAP-CABLE | 10 | |
| 8D1470 | 46 GROMMET | 1 | |
| 8T4121 | 47 WASHER-HARD (11X21X2.5-MM THK) | 7 | |
| 8T4205 | 48 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 8T4223 | 49 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4244 | 50 NUT (M12X1.75-THD) | 2 | |
| 9X1046 | 51 SCREW (M4X0.7X18-MM) | 10 | |
| 9X2041 | 52 SCREW-TRUSS HEAD (M10X1.5X20-MM) | 6 | |
| 9X2042 | 53 SCREW-TRUSS HEAD (M6X1X12-MM) | 3 | |
| 9X2045 | 54 SCREW-TRUSS HEAD (M6X1X20-MM) | 1 | |
| 9X9099 | 55 SWITCH AS-ROCKER (PROPEL SPEED RANGE) | 1 | |
| 9X9099 | 55A SWITCH AS-ROCKER (THROTTLE) | 1 | |
| 3L8187 | LOCKWASHER | 6 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 6 | |
| 6V2689 | 56 TUBE-HEAT SHRINK (6.35-MM DIA)(0.03-M EACH) |
