System And Components

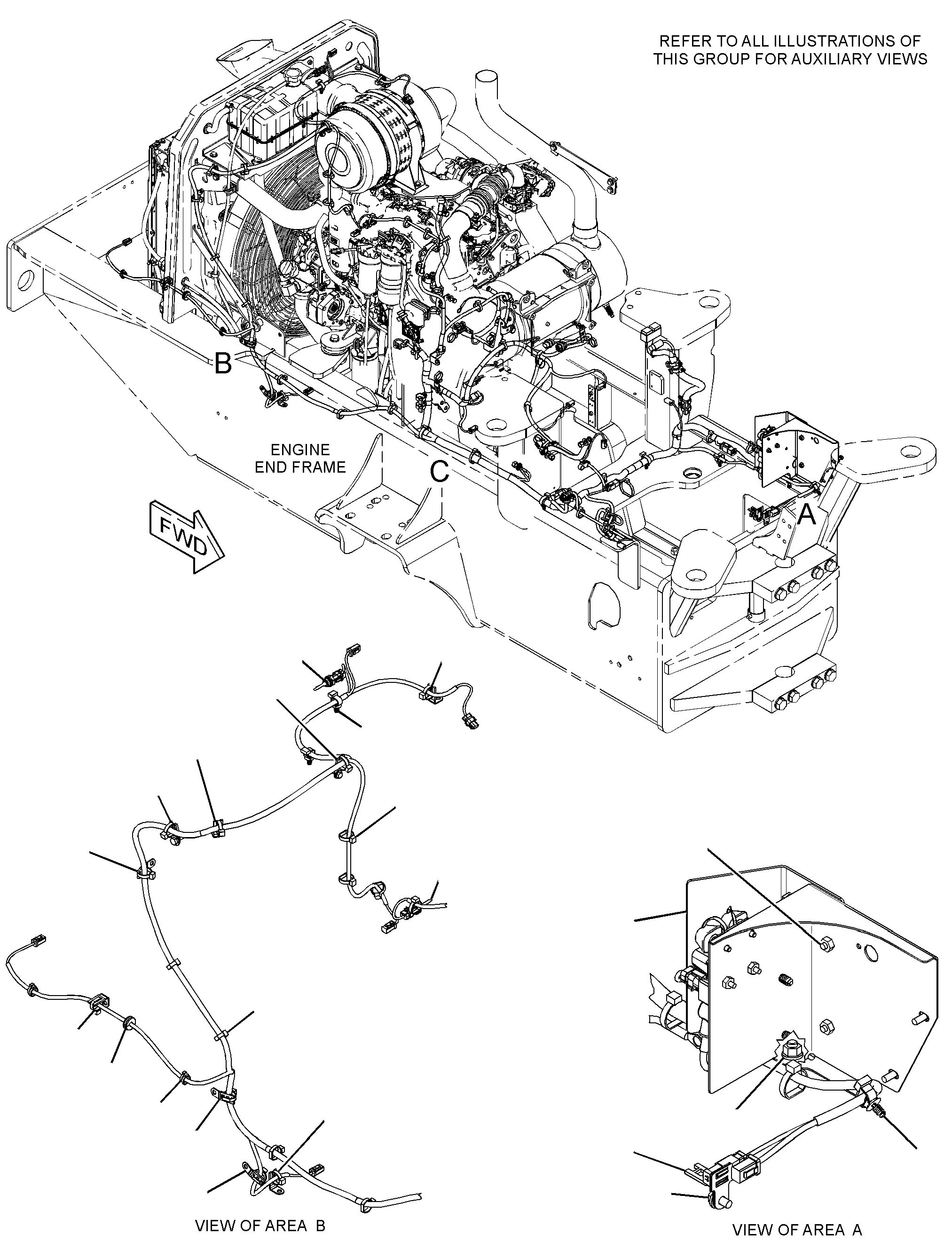

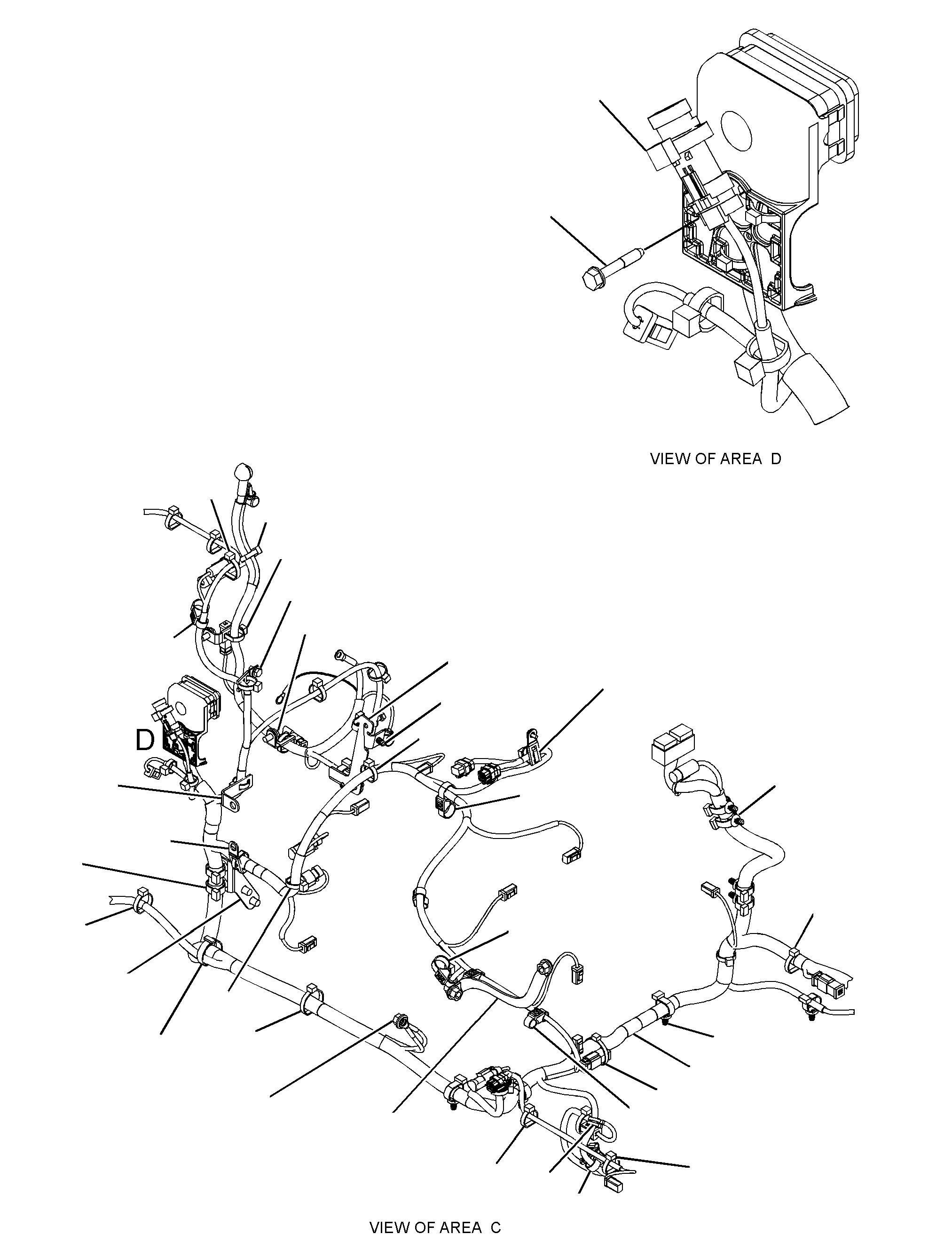

354-0255 WIRING GP-MACHINES/N CS6122-UP
Group No: 354-0255
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 7 | |
| 6Y6584 | 3 STRAP AS-GROUND | 1 | |
| 1165710 | 5 GROMMET | 1 | |
| 1772215 | 6 STRAP-DUAL CLAMP | 6 | |
| 2006345 | 7 SADDLE-MOUNTING (DUAL SWIVEL) | 1 | |
| 2042281 | 8 STRAP-CABLE | 2 | |
| 2566453 | 9 SENSOR-TEMPERATURE (2-PIN)(AMBIENT AIR) | 1 | |
| 2566454 | 10 SENSOR-TEMPERATURE (2-PIN)(INTAKE MANIFOLD) | 1 | |
| 3270325 | 11 STRAP-CABLE | 17 | |
| 3540257 | 12 PANEL GP-CIRCUIT BREAKER | 1 | |
| 3540266 | 13 BRACKET | 1 | |
| 4160333 | 14 ANGLE | 1 | |
| 8T7547 | 15 BOLT (M8X1.25X30-MM) | 1 | |
| 4158321 | 16 HARNESS AS-CHASSIS | 1 | |
| 1305300 | 17 CLIP | 2 | |
| 1325789 | 18 CLIP (LADDER) | 7 | |
| 1933973 | 19 STRAP-CABLE | 1 | |
| 2321693 | 20 BOLT-FLANGE HEAD (M6X1X35-MM) | 1 | |
| 2771873 | 21 CLIP (LADDER) | 1 | |
| 3K0360 | 22 SEAL-O-RING | 1 | |
| 4P7428 | 23 CLIP (LADDER) | 1 | |
| 4P7581 | 24 CLIP (LADDER) | 7 | |
| 5C7261 | 25 NUT (M8X1.25-THD) | 1 | |
| 5P1076 | 26 WASHER-HARD (13.5X30X4-MM THK) | 3 | |
| 5P4115 | 27 WASHER-HARD (7.2X19X2-MM THK) | 1 | |
| 5P4116 | 28 WASHER-HARD (8.8X20.5X2-MM THK) | 7 | |
| 7K1181 | 29 STRAP-CABLE | 45 | |
| 7X7729 | 30 WASHER (11X25X3-MM THK) | 4 | |
| 8T4137 | 31 BOLT (M10X1.5X20-MM) | 3 | |
| 8T4179 | 32 BOLT (M12X1.75X20-MM) | 3 | |
| 8T4189 | 33 BOLT (M8X1.25X20-MM) | 4 | |
| 8T4196 | 34 BOLT (M10X1.5X35-MM) | 1 | |
| 8T4200 | 35 BOLT (M8X1.25X16-MM) | 1 | |
| 8T4223 | 36 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 8T4244 | 37 NUT (M12X1.75-THD) | 3 | |
| 8T4970 | 38 BOLT (M6X1X14-MM) | 1 | |
| 8T7524 | 39 SEAL-O-RING | 1 | |
| 4160332 | 40 BRACKET | 1 |
