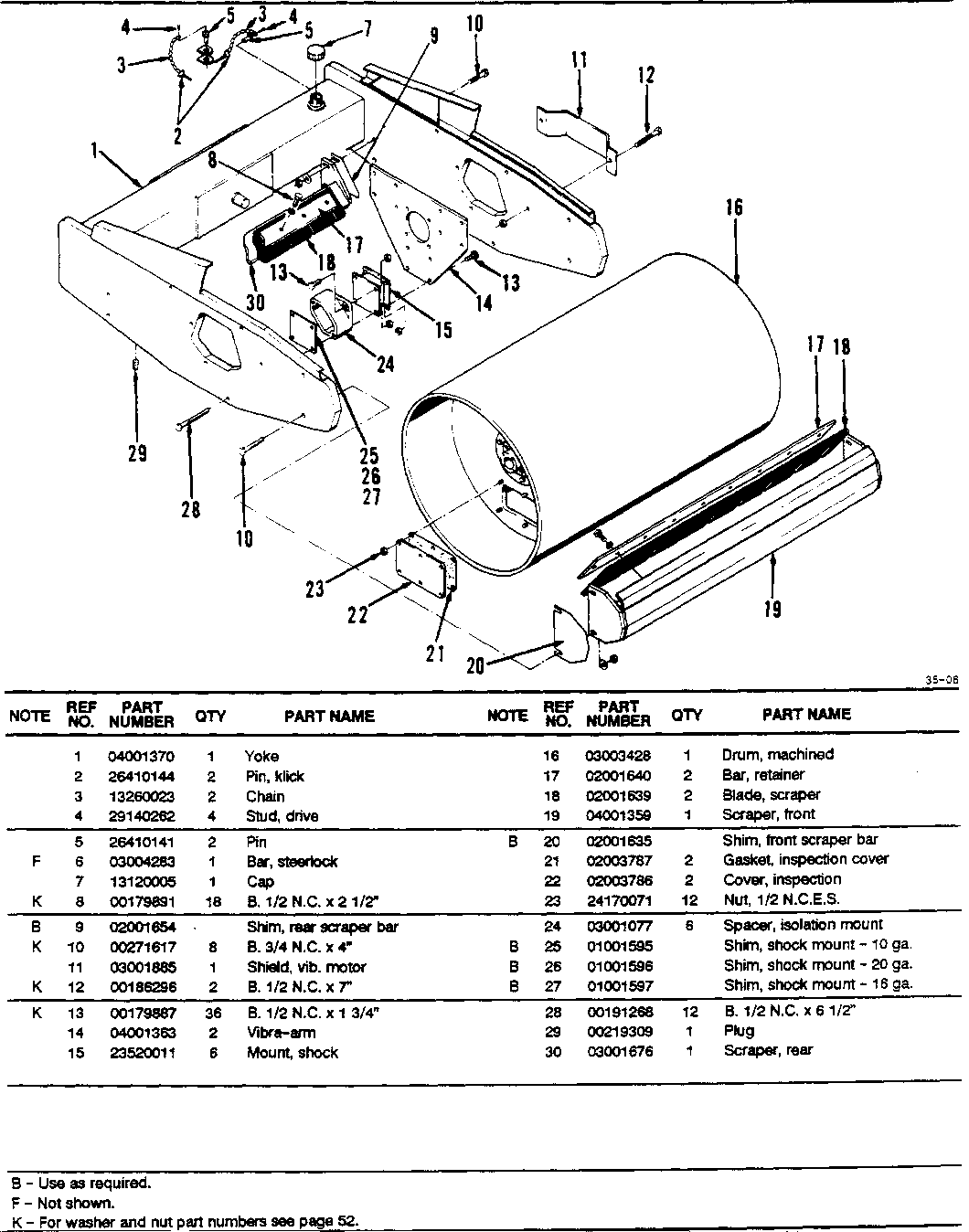

DRUM AND YOKE ASSEMBLY

Group No: DRUM
Part NumberPart NameQty
040013701 YOKE1
264101442 PIN, KLICK2
132600233 CHAIN2
291402624 STUD, DRIVE4
264101415 PIN2
030042836 BAR, STEERLOCK1
131200057 CAP1
001798918 B. 1/2 N.C. X 2 1/2"18
020016549 SHIM, REAR SCRAPER BAR
0027161710 B. 3/4 N.C. X 4"8
0300188511 SHIELD, VIB. MOTOR1
0018629612 B. 1/2 N.C. X 7"2
0017988713 B. 1/2 N.C. X 1 3/4"36
0400136314 VIBRA-ARM2
2352001115 MOUNT, SHOCK6
0300342816 DRUM, MACHINED1
0200164017 BAR, RETAINER2
0200163918 BLADE, SCRAPER2
0400135919 SCRAPER, FRONT1
0200163520 SHIM, FRONT SCRAPER BAR
0200378721 GASKET, INSPECTION COVER2
0200378622 COVER, INSPECTION2
2417007123 NUT, 1/2 N.C.E.S.12
0300107724 SPACER, ISOLATION MOUNT6
0100159525 SHIM, SHOCK MOUNT - 10 GA.
0100159626 SHIM, SHOCK MOUNT - 20 GA.
0100159727 SHIM, SHOCK MOUNT - 16 GA.
0019126828 B. 1/2 N.C. X 6 1/2"12
0021930929 PLUG1
0300167630 SCRAPER, REAR1
