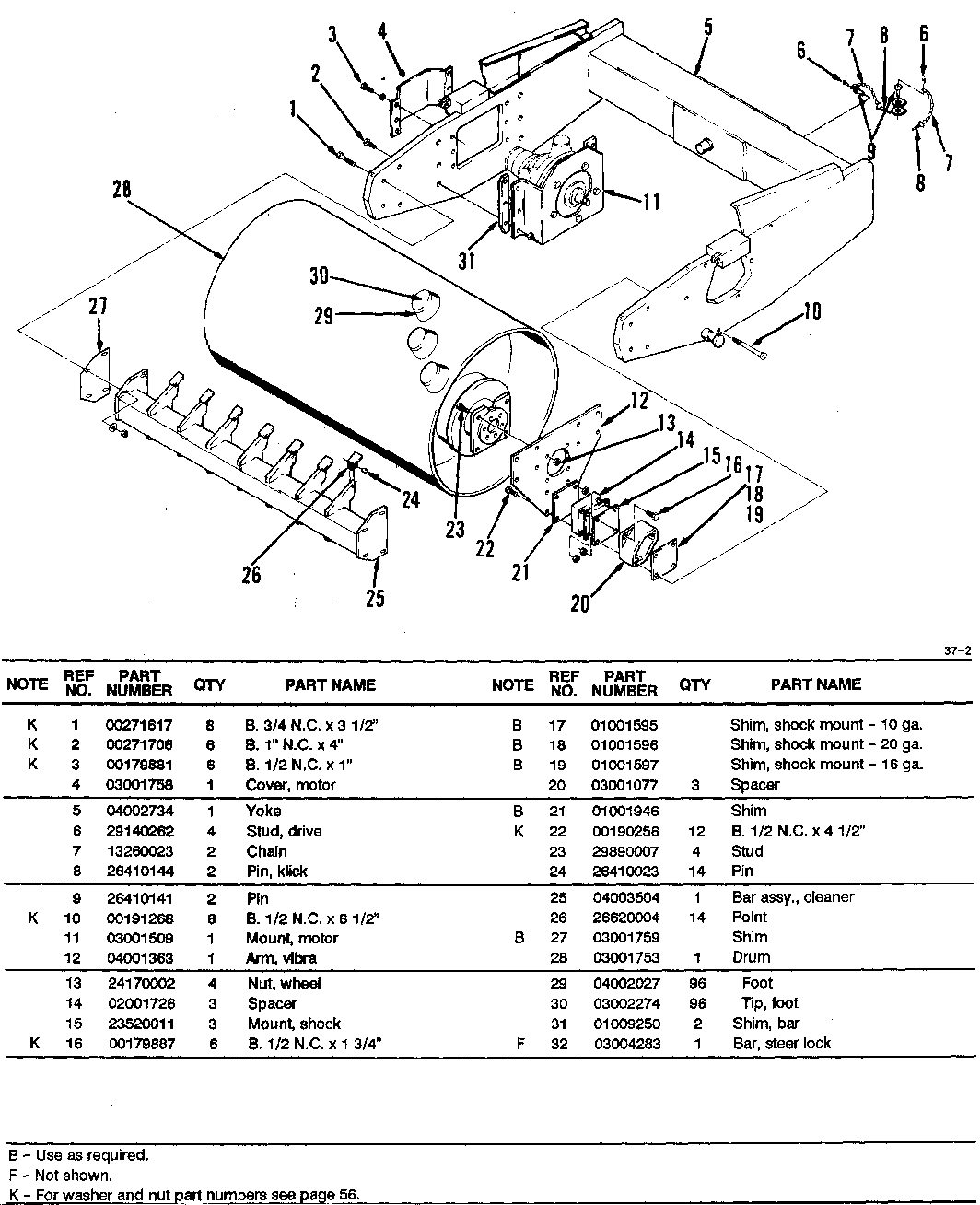

PADDED DRUM AND YOKE ASSEMBLY

Group No: PADDED
Part NumberPart NameQty
002716171 B. 3/4 N.C. X 3 1/2"8
002717062 B. 1" N.C. X 4"6
001798813 B. 1/2 N.C. X 1"6
030017584 COVER, MOTOR1
040027345 YOKE1
291402626 STUD, DRIVE4
132600237 CHAIN2
264101448 PIN, KLICK2
264101419 PIN2
0019126810 B. 1/2 N.C. X 6 1/2"6
0300150911 MOUNT, MOTOR1
0400136312 ARM, VIBRA1
2417000213 NUT, WHEEL4
0200172614 SPACER3
2352001115 MOUNT, SHOCK3
0017988716 B. 1/2 N.C. X 1 3/4"6
0100159517 SHIM, SHOCK MOUNT - 10 GA.
0100159618 SHIM, SHOCK MOUNT - 20 GA.
0100159719 SHIM, SHOCK MOUNT - 16 GA.
0300107720 SPACER3
0100194621 SHIM
0019025622 B. 1/2 N.C. X 4 1/2"12
2989000723 STUD4
2641002324 PIN14
0400350425 BAR ASSY., CLEANER1
2662000426 POINT14
0300175927 SHIM
0300175328 DRUM1
0400202729 FOOT96
0300227430 TIP, FOOT96
0100925031 SHIM, BAR2
0300428332 BAR, STEER LOCK1
