System And Components

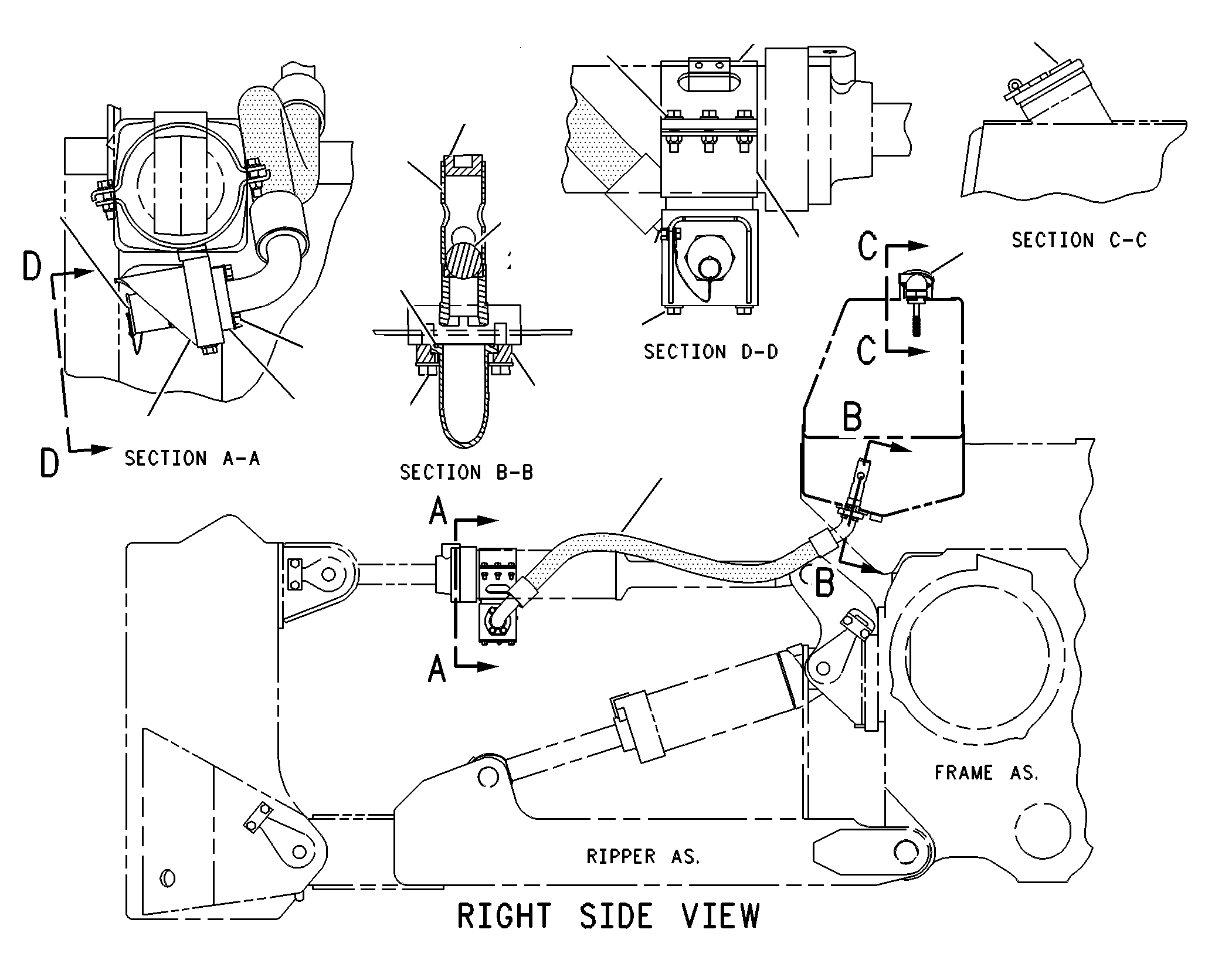

113-0717 ADAPTER GP-FAST FILL FUELS/N 7TL557-851
Group No: 113-0717
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9W9977 | 1 HOSE AS | 1 | |
| 1130715 | 2 CLAMP | 1 | |
| 7X0339 | 3 BOLT (1/2-13X6.25-IN) | 2 | |
| 8T4835 | 4 BOLT (1/2-13X2-IN) | 6 | |
| 1K6872 | 5 LOCKNUT (1/2-13-THD) | 6 | |
| 1130716 | 6 CLAMP AS | 1 | |
| 9D0630 | 7 CAP-DUST | 1 | |
| 2175703 | 8 RECEIVER (FAST FILL FUEL) | 1 | |
| 6Y0091 | 9 BLOCK AS | 1 | |
| 6G7803 | 10 VENT AS | 1 | |
| 1B5170 | 11 PLUG-PIPE | 1 | |
| 7T2413 | 12 SHAFT | 1 | |
| 6V9273 | 13 BALL | 1 | |
| 8T8919 | 14 BOLT (1/2-13X1.75-IN) | 8 | |
| 1018909 | 15 CAP AS-FILLER | 1 | |
| 9X8600 | SEAL-O-RING | 1 | |
| 8T4223 | 16 WASHER-HARD (13.5X25.5X3-MM THK) | 16 | |
| 1P4582 | 17 FLANGE-HALF | 4 | |
| 4J0527 | 18 SEAL-O-RING | 2 | |
| 4L6454 | 19 BOLT (3/8-16X1-IN) | 1 | |
| 6V2686 | 20 CLIP | 1 | |
| 6V8801 | 21 NUT (3/8-16-THD) | 1 | |
| 8T4896 | 22 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 5T8645 | KIT-VENT (FUEL TANK) | 1 |
