System And Components

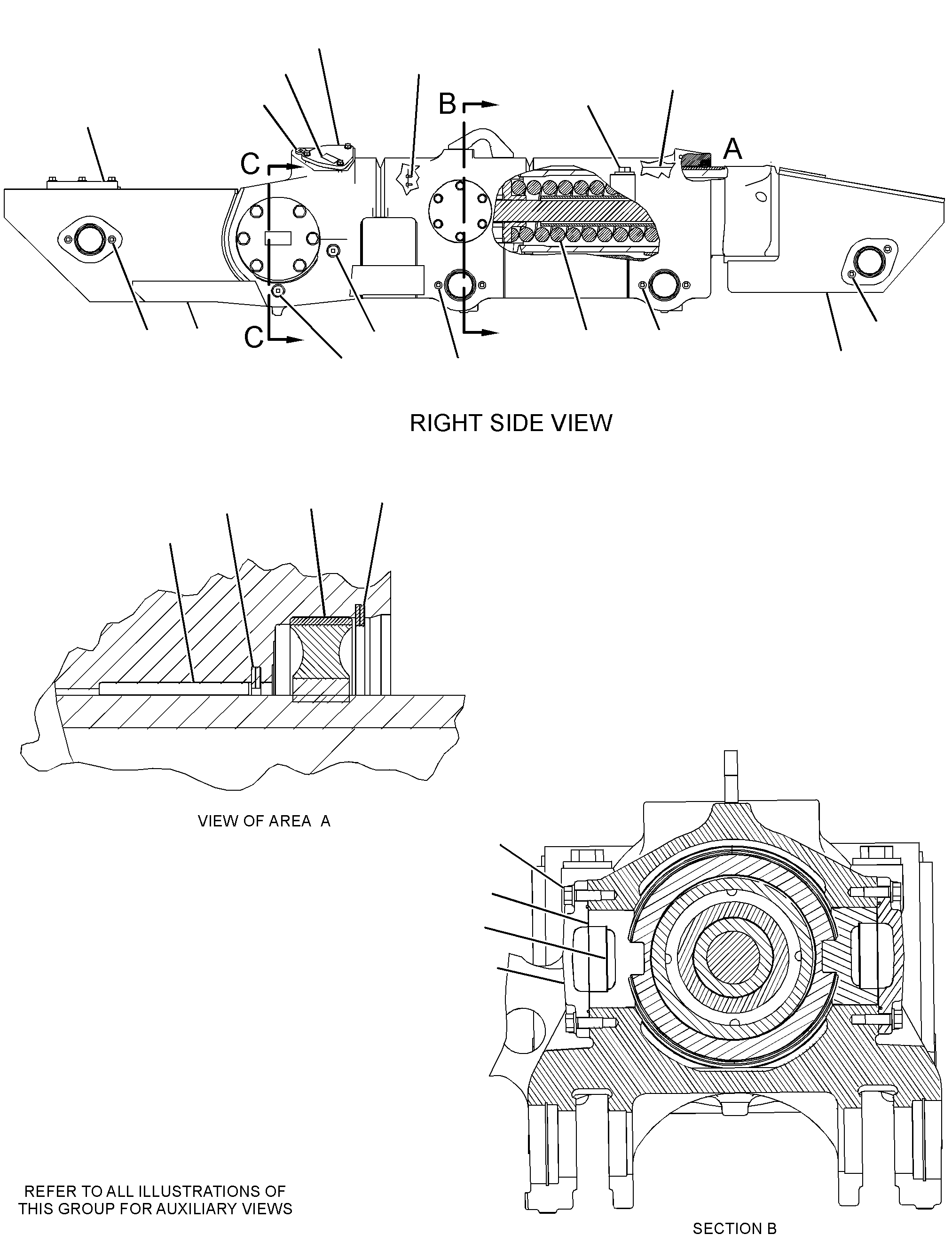

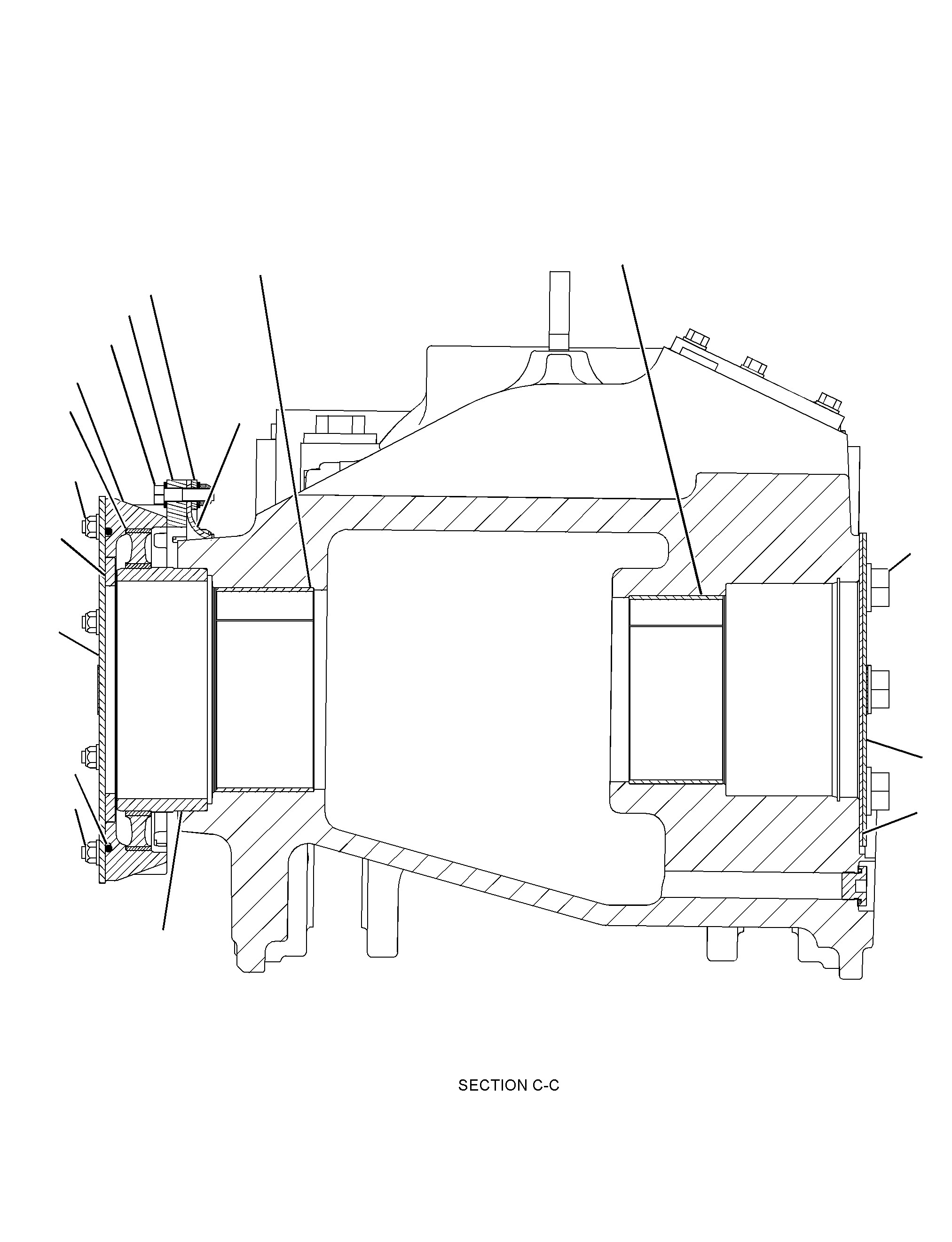

422-1464 FRAME GP-TELESCOPING RECOIL -RHS/N ACL1-UP
Group No: 422-1464
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6P8931 | 1 COVER | 2 | |
| 6T8801 | 2 GUIDE AS | 2 | |
| 2427104 | 2A FILM-WARNING (RECOIL SPRING) | 1 | |
| 7T4145 | 3 SLEEVE | 1 | |
| 7T5690 | 4 COVER | 1 | |
| 8T0208 | 5 SEAL-PIVOT SHAFT | 1 | |
| 9G0296 | 6 BEARING | 1 | |
| 9G7516 | 7 PLUG | 16 | |
| 9P7053 | 8 PLATE-THRUST | 1 | |
| 9W2380 | 9 RETAINER | 1 | |
| 9W4166 | 10 GASKET | 1 | |
| 9X4586 | 11 SEAL AS | 1 | |
| 1882557 | 12 FRAME AS-TRACK ROLLER (FRONT) | 1 | |
| 4B4158 | 12A SCREW-DRIVE (NO 4X0.25-IN) | 4 | |
| 9P7990 | 12B SLEEVE-WEAR | 1 | |
| 2531347 | 12C PLATE-WARNING (RECOIL SPRING) | 1 | |
| 2039381 | 13 RING | 1 | |
| 2039382 | 14 GUARD-SEAL | 1 | |
| 2039383 | 15 PLATE | 1 | |
| 4263786 | 16 COVER AS | 1 | |
| 2531346 | 16A PLATE-WARNING (HIGH PRESSURE CYLINDER) | 1 | |
| 4B4158 | SCREW-DRIVE (NO 4X0.25-IN) | 4 | |
| 2526375 | 18 WASHER-HARD (31X74X10-MM THK) | 4 | |
| 3599906 | 19 COVER | 1 | |
| 3814184 | 20 TRACK ADJUSTER & RECOIL GP | 1 | |
| 4340070 | 21 FRAME AS (RH) | 1 | |
| 1K6872 | 22 LOCKNUT (1/2-13-THD) | 11 | |
| 2H3932 | 23 SEAL-O-RING | 3 | |
| 2K4472 | 24 SEAL-O-RING | 2 | |
| 4D4508 | 25 SEAL-O-RING | 1 | |
| 4T2069 | 26 PLUG-DRAIN | 3 | |
| 3S1223 | 27 SEAL-O-RING | 1 | |
| 5P2566 | 28 BOLT (1/2-13X1.5-IN) | 3 | |
| 6Y0210 | 29 BUSHING | 1 | |
| 7G9709 | 30 BUSHING | 1 | |
| 7T8004 | 31 RING-RETAINING | 1 | |
| 7X0326 | 32 BOLT (1/2-13X3-IN) | 4 | |
| 7X0342 | 33 BOLT (5/8-11X0.75-IN) | 12 | |
| 7X0345 | 34 BOLT (5/8-11X1.75-IN) | 12 | |
| 7X0399 | 35 BOLT (1-8X1.25-IN) | 6 | |
| 7X0420 | 36 BOLT (1.125-7X50.8-MM) | 4 | |
| 8E2819 | 37 RING-RETAINING | 1 | |
| 8T4122 | 38 WASHER-HARD (17X32X3.5-MM THK) | 24 | |
| 8T4223 | 39 WASHER-HARD (13.5X25.5X3-MM THK) | 25 | |
| 8T4835 | 40 BOLT (1/2-13X2-IN) | 3 | |
| 8T5361 | 41 WASHER-HARD (28X49X5-MM THK) | 6 | |
| 8T9391 | 42 BOLT (1/2-13X3.75-IN) | 4 |
