System And Components

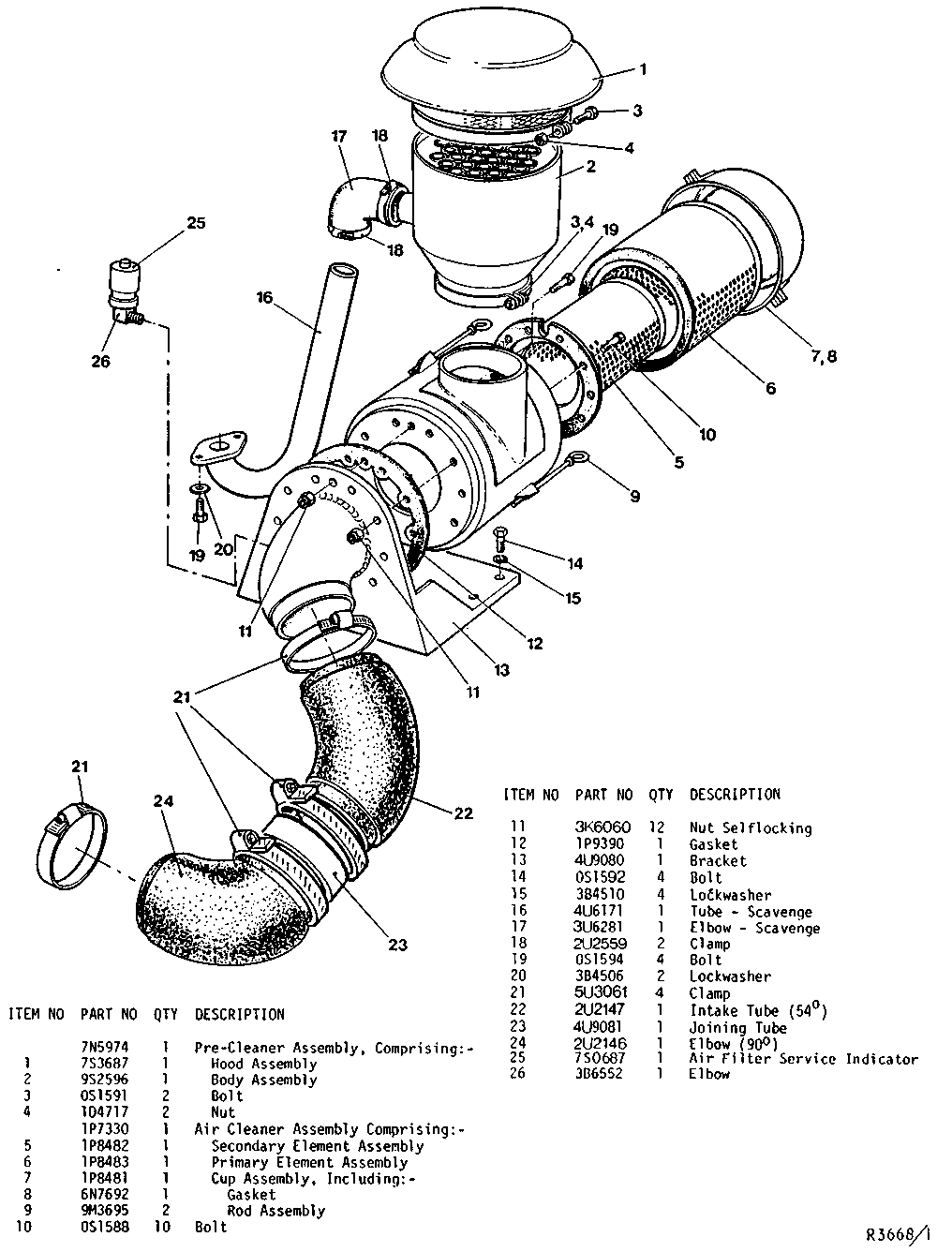

AIR CLEANER GROUP
Group No: AIR
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7N5974 | PRE-CLEANER ASSEMBLY, COMPRISING:- | 1 | |
| 7S3687 | 1 HOOD ASSEMBLY | 1 | |
| 9S2596 | 2 BODY ASSEMBLY | 1 | |
| 0S1591 | 3 BOLT | 2 | |
| 1D4717 | 4 NUT | 2 | |
| 1P7330 | AIR CLEANER ASSEMBLY COMPRISING:- | 1 | |
| 1P8482 | 5 SECONDARY ELEMENT ASSEMBLY | 1 | |
| 1P8483 | 6 PRIMARY ELEMENT ASSEMBLY | 1 | |
| 1P8481 | 7 CUP ASSEMBLY, INCLUDING:- | 1 | |
| 6N7692 | 8 GASKET | 1 | |
| 9M3695 | 9 ROD ASSEMBLY | 2 | |
| 0S1588 | 10 BOLT | 10 | |
| 3K6060 | 11 NUT SELFLOCKING | 12 | |
| 1P9390 | 12 GASKET | 1 | |
| 4U9080 | 13 BRACKET | 1 | |
| 0S1592 | 14 BOLT | 4 | |
| 3B4510 | 15 LOCKWASHER | 4 | |
| 4U6171 | 16 TUBE - SCAVENGE | 1 | |
| 3U6281 | 17 ELBOW - SCAVENGE | 1 | |
| 2U2559 | 18 CLAMP | 2 | |
| 0S1594 | 19 BOLT | 4 | |
| 3B4506 | 20 LOCKWASHER | 2 | |
| 5U3061 | 21 CLAMP | 4 | |
| 2U2147 | 22 INTAKE TUBE (54 degrees) | 1 | |
| 4U9081 | 23 JOINING TUBE | 1 | |
| 2U2146 | 24 ELBOW (90 degrees) | 1 | |
| 7S0687 | 25 AIR FILTER SERVICE INDICATOR | 1 | |
| 3B6552 | 26 ELBOW | 1 |
