System And Components

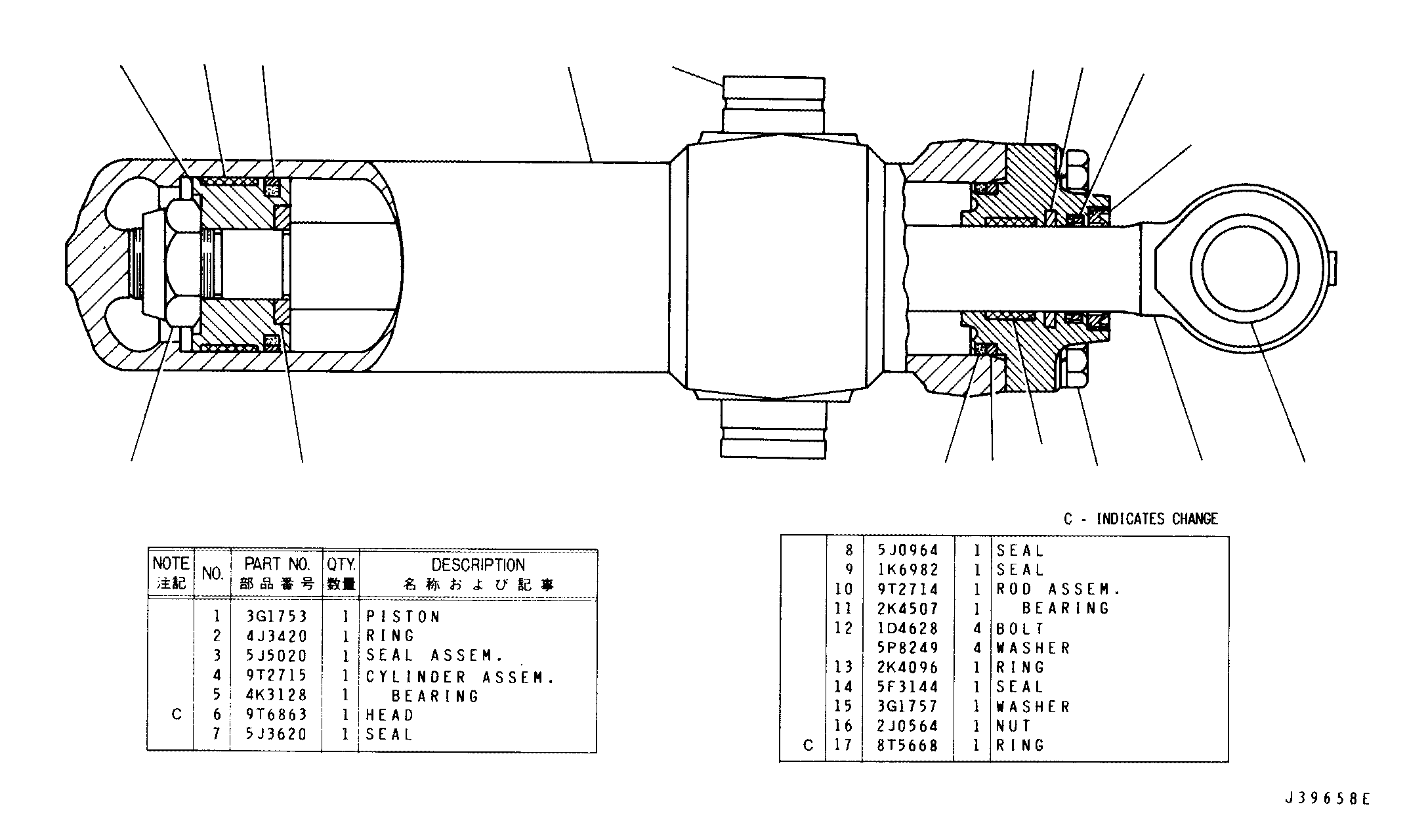

9T2716 RIPPER CYLINDER GROUP-127.0mm Bore x 362.0mm StrokePart of Ripper Arrangement
Group No: 9T2716
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3G1753 | 1 PISTON | 1 | |
| 4J3420 | 2 RING | 1 | |
| 5J5020 | 3 SEAL ASSEM. | 1 | |
| 9T2715 | 4 CYLINDER ASSEM. | 1 | |
| 4K3128 | 5 BEARING | 1 | |
| 9T6863 | 6 HEAD | 1 | |
| 5J3620 | 7 SEAL | 1 | |
| 5J0964 | 8 SEAL | 1 | |
| 1K6982 | 9 SEAL | 1 | |
| 9T2714 | 10 ROD ASSEM. | 1 | |
| 2K4507 | 11 BEARING | 1 | |
| 1D4628 | 12 BOLT | 4 | |
| 5P8249 | WASHER | 4 | |
| 2K4096 | 13 RING | 1 | |
| 5F3144 | 14 SEAL | 1 | |
| 3G1757 | 15 WASHER | 1 | |
| 2J0564 | 16 NUT | 1 | |
| 8T5668 | 17 RING | 1 |
