System And Components

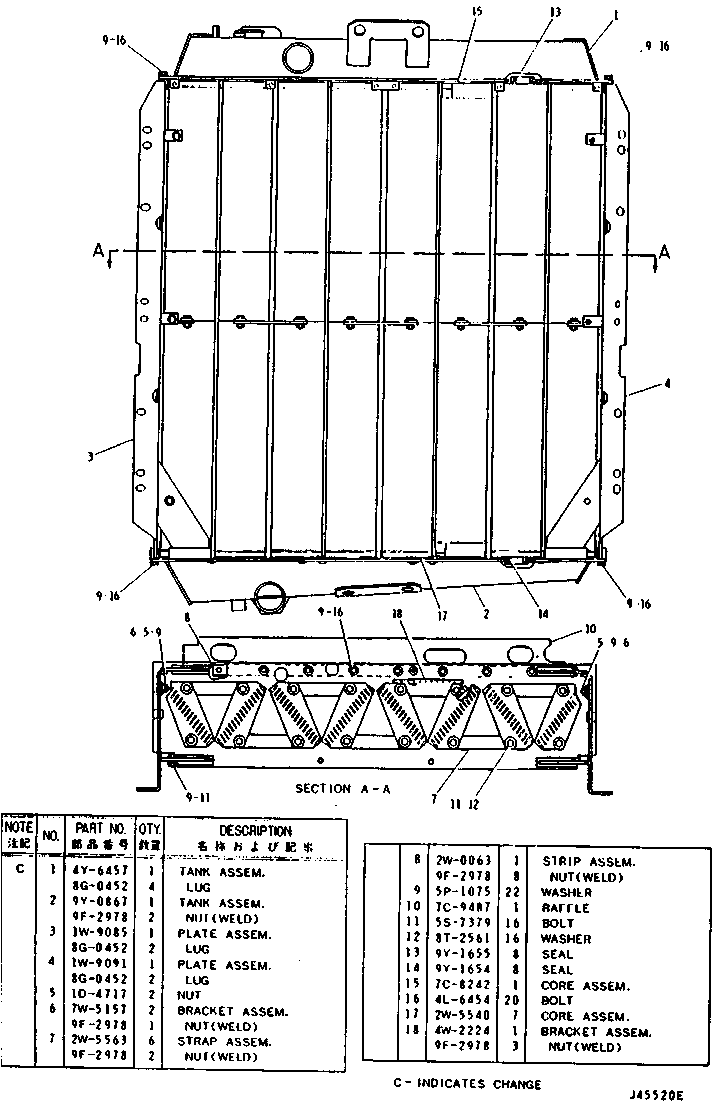

RADIATOR (4Y5576 N/S)Part of 4Y5575--Page 34
Group No: RADIATOR
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4Y6457 | 1 TANK ASSEM. | 1 | |
| 8G0452 | LUG | 4 | |
| 9Y0867 | 2 TANK ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 2 | |
| 1W9085 | 3 PLATE ASSEM. | 1 | |
| 8G0452 | LUG | 2 | |
| 1W9091 | 4 PLATE ASSEM. | 1 | |
| 8G0452 | LUG | 2 | |
| 1D4717 | 5 NUT | 2 | |
| 7W5157 | 6 BRACKET ASSEM. | 2 | |
| 9F2978 | NUT (WELD) | 1 | |
| 2W5563 | 7 STRAP ASSEM. | 6 | |
| 9F2978 | NUT (WELD) | 2 | |
| 2W0063 | 8 STRIP ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 8 | |
| 5P1075 | 9 WASHER | 22 | |
| 7C9487 | 10 BAFFLE | 1 | |
| 5S7379 | 11 BOLT | 16 | |
| 8T2561 | 12 WASHER | 16 | |
| 9Y1655 | 13 SEAL | 8 | |
| 9Y1654 | 14 SEAL | 8 | |
| 7C8242 | 15 CORE ASSEM. | 1 | |
| 4L6454 | 16 BOLT | 20 | |
| 2W5540 | 17 CORE ASSEM. | 7 | |
| 4W2224 | 18 BRACKET ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 3 |
