System And Components

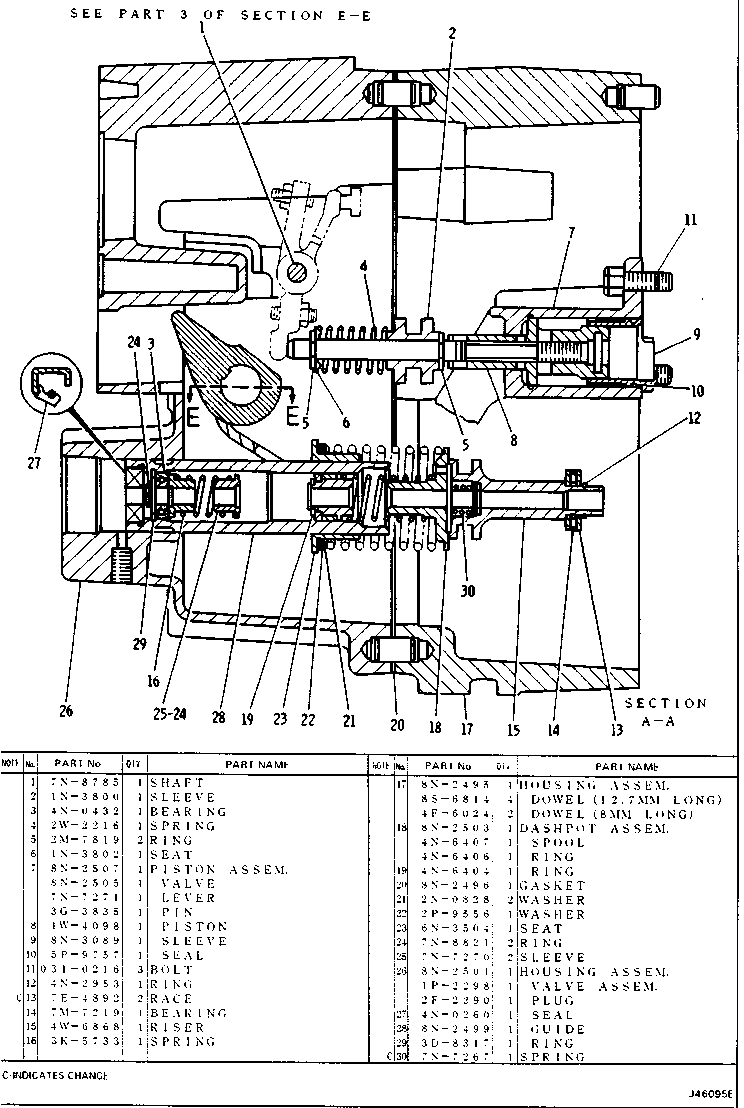

2W6559 GOVERNOR GROUP--Part 2 of 3Part of 7C9602--Page 61
Group No: 2W6559
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7N8785 | 1 SHAFT | 1 | |
| 1N3800 | 2 SLEEVE | 1 | |
| 4N0432 | 3 BEARING | 1 | |
| 2W2216 | 4 SPRING | 1 | |
| 2M7819 | 5 RING | 2 | |
| 1N3802 | 6 SEAT | 1 | |
| 8N2507 | 7 PISTON ASSEM. | 1 | |
| 8N2505 | VALVE | 1 | |
| 7N7271 | LEVER | 1 | |
| 3G3835 | PIN | 1 | |
| 1W4098 | 8 PISTON | 1 | |
| 8N3089 | 9 SLEEVE | 1 | |
| 5P9757 | 10 SEAL | 1 | |
| 0310216 | 11 BOLT | 3 | |
| 4N2953 | 12 RING | 1 | |
| 7E4892 | 13 RACE | 2 | |
| 7M7219 | 14 BEARING | 1 | |
| 4W6868 | 15 RISER | 1 | |
| 3K5733 | 16 SPRING | 1 | |
| 8N2495 | 17 HOUSING ASSEM. | 1 | |
| 8S6814 | DOWEL (12.7 MM LONG) | 4 | |
| 4F6024 | DOWEL (8MM LONG) | 2 | |
| 8N2503 | 18 DASHPOT ASSEM. | 1 | |
| 4N6407 | SPOOL | 1 | |
| 4N6406 | RING | 1 | |
| 4N6404 | 19 RING | 1 | |
| 8N2496 | 20 GASKET | 1 | |
| 2N0828 | 21 WASHER | 2 | |
| 2P9556 | 22 WASHER | 1 | |
| 6N3504 | 23 SEAT | 1 | |
| 7N8821 | 24 RING | 2 | |
| 7N7270 | 25 SLEEVE | 2 | |
| 8N2501 | 26 HOUSING ASSEM. | 1 | |
| 1P2298 | VALVE ASSEM. | 1 | |
| 2F2290 | PLUG | 1 | |
| 4N0260 | 27 SEAL | 1 | |
| 8N2499 | 28 GUIDE | 1 | |
| 3D8317 | 29 RING | 1 | |
| 7N7267 | 30 SPRING | 1 |
