System And Components

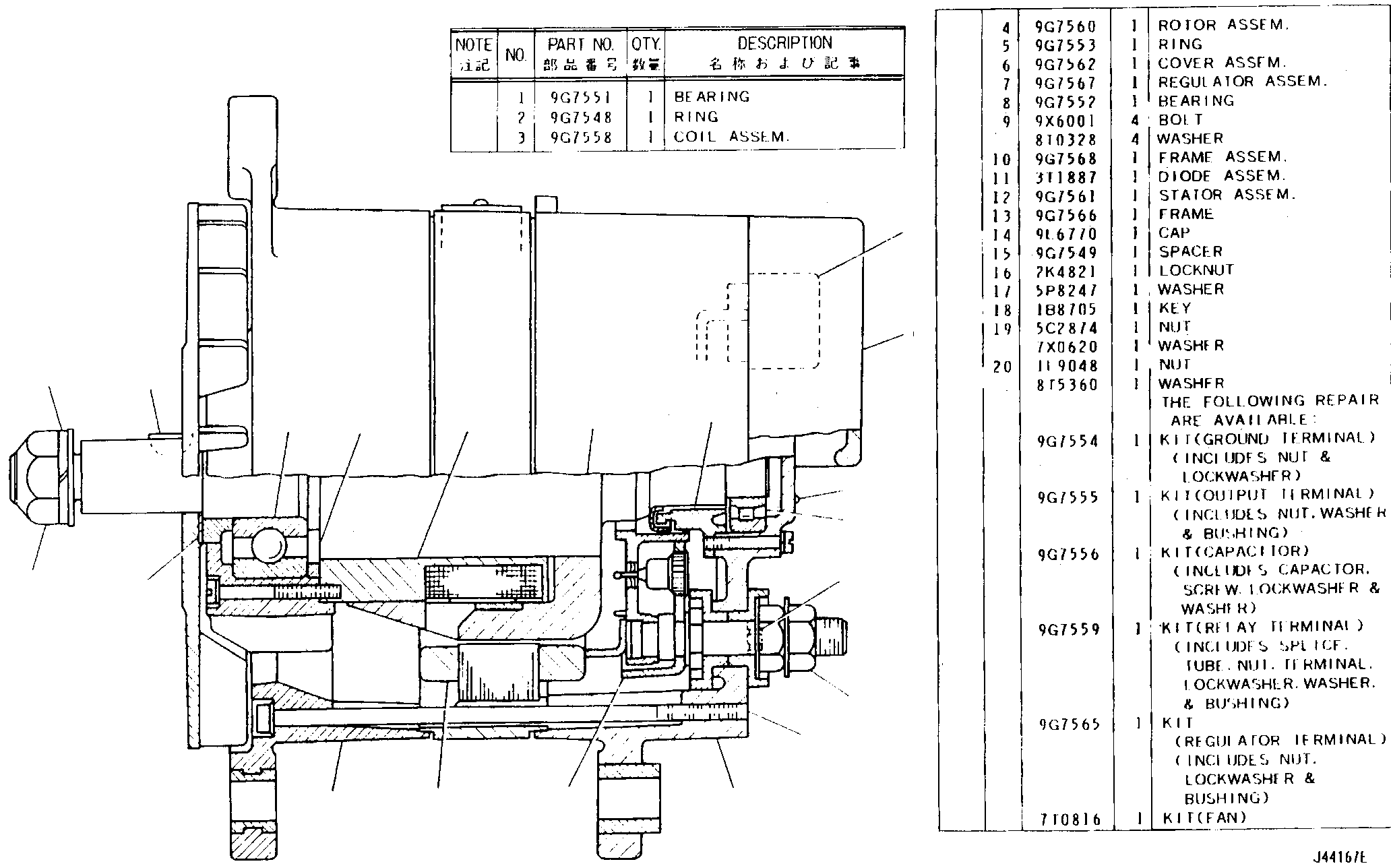

ALTERNATOR (7N9720 N/S)--Robert BoschPart of 6N9294--Page 73
Group No: ALTERNATOR
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9G7551 | 1 BEARING | 1 | |
| 9G7548 | 2 RING | 1 | |
| 9G7558 | 3 COIL ASSEM. | 1 | |
| 9G7560 | 4 ROTOR ASSEM. | 1 | |
| 9G7553 | 5 RING | 1 | |
| 9G7562 | 6 COVER ASSEM. | 1 | |
| 9G7567 | 7 REGULATOR ASSEM. | 1 | |
| 9G7552 | 8 BEARING | 1 | |
| 9X6001 | 9 BOLT | 4 | |
| 8T0328 | WASHER | 4 | |
| 9G7568 | 10 FRAME ASSEM. | 1 | |
| 3T1887 | 11 DIODE ASSEM. | 1 | |
| 9G7561 | 12 STATOR ASSEM. | 1 | |
| 9G7566 | 13 FRAME | 1 | |
| 9L6770 | 14 CAP | 1 | |
| 9G7549 | 15 SPACER | 1 | |
| 2K4821 | 16 LOCKNUT | 1 | |
| 5P8247 | 17 WASHER | 1 | |
| 1B8705 | 18 KEY | 1 | |
| 5C2874 | 19 NUT | 1 | |
| 7X0620 | WASHER | 1 | |
| 1L9048 | 20 NUT | 1 | |
| 8T5360 | WASHER | 1 | |
| 9G7554 | KIT (GROUND TERMINAL) | 1 | |
| 9G7555 | KIT (OUTPUT TERMINAL) | 1 | |
| 9G7556 | KIT (CAPACITOR) | 1 | |
| 9G7559 | KIT (RELAY TERMINAL) | 1 | |
| 9G7565 | KIT | 1 | |
| 7T0816 | KIT (FAN) | 1 |
