System And Components

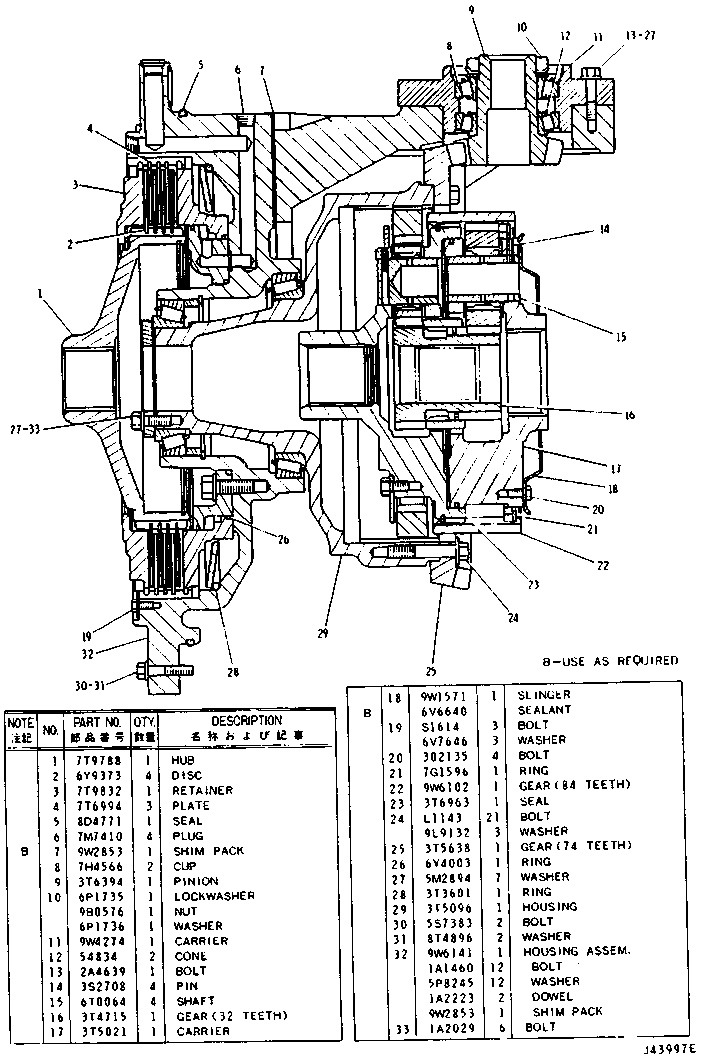

DIFFRENTIAL DRIVE AND BRAKE (8E5275 N/S)--Part 1 of 2
Group No: DIFFRENTIAL
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7T9788 | 1 HUB | 1 | |
| 6Y9373 | 2 DISC | 4 | |
| 7T9832 | 3 RETAINER | 1 | |
| 7T6994 | 4 PLATE | 3 | |
| 8D4771 | 5 SEAL | 1 | |
| 7M7410 | 6 PLUG | 4 | |
| 9W2853 | 7 SHIM PACK | 1 | |
| 7H4566 | 8 CUP | 2 | |
| 3T6394 | 9 PINION | 1 | |
| 6P1735 | 10 LOCKWASHER | 1 | |
| 9B0576 | NUT | 1 | |
| 6P1736 | WASHER | 1 | |
| 9W4274 | 11 CARRIER | 1 | |
| 0054834 | 12 CONE | 2 | |
| 2A4639 | 13 BOLT | 1 | |
| 3S2708 | 14 PIN | 4 | |
| 6T0064 | 15 SHAFT | 4 | |
| 3T4715 | 16 GEAR (32 TEETH) | 1 | |
| 3T5021 | 17 CARRIER | 1 | |
| 9W1571 | 18 SLINGER | 1 | |
| 6V6640 | SEALANT | ||
| 0S1614 | 19 BOLT | 3 | |
| 6V7646 | WASHER | 3 | |
| 0302135 | 20 BOLT | 4 | |
| 7G1596 | 21 RING | 1 | |
| 9W6102 | 22 GEAR (84 TEETH) | 1 | |
| 3T6963 | 23 SEAL | 1 | |
| 0L1143 | 24 BOLT | 21 | |
| 9L9132 | WASHER | 3 | |
| 3T5638 | 25 GEAR (74 TEETH) | 1 | |
| 6Y4003 | 26 RING | 1 | |
| 5M2894 | 27 WASHER | 7 | |
| 3T3601 | 28 RING | 1 | |
| 3T5096 | 29 HOUSING | 1 | |
| 5S7383 | 30 BOLT | 2 | |
| 8T4896 | 31 WASHER | 2 | |
| 9W6141 | 32 HOUSING ASSEM. | 1 | |
| 1A1460 | BOLT | 12 | |
| 5P8245 | WASHER | 12 | |
| 1A2223 | DOWEL | 2 | |
| 9W2853 | SHIM PACK | 1 | |
| 1A2029 | 33 BOLT | 6 |
