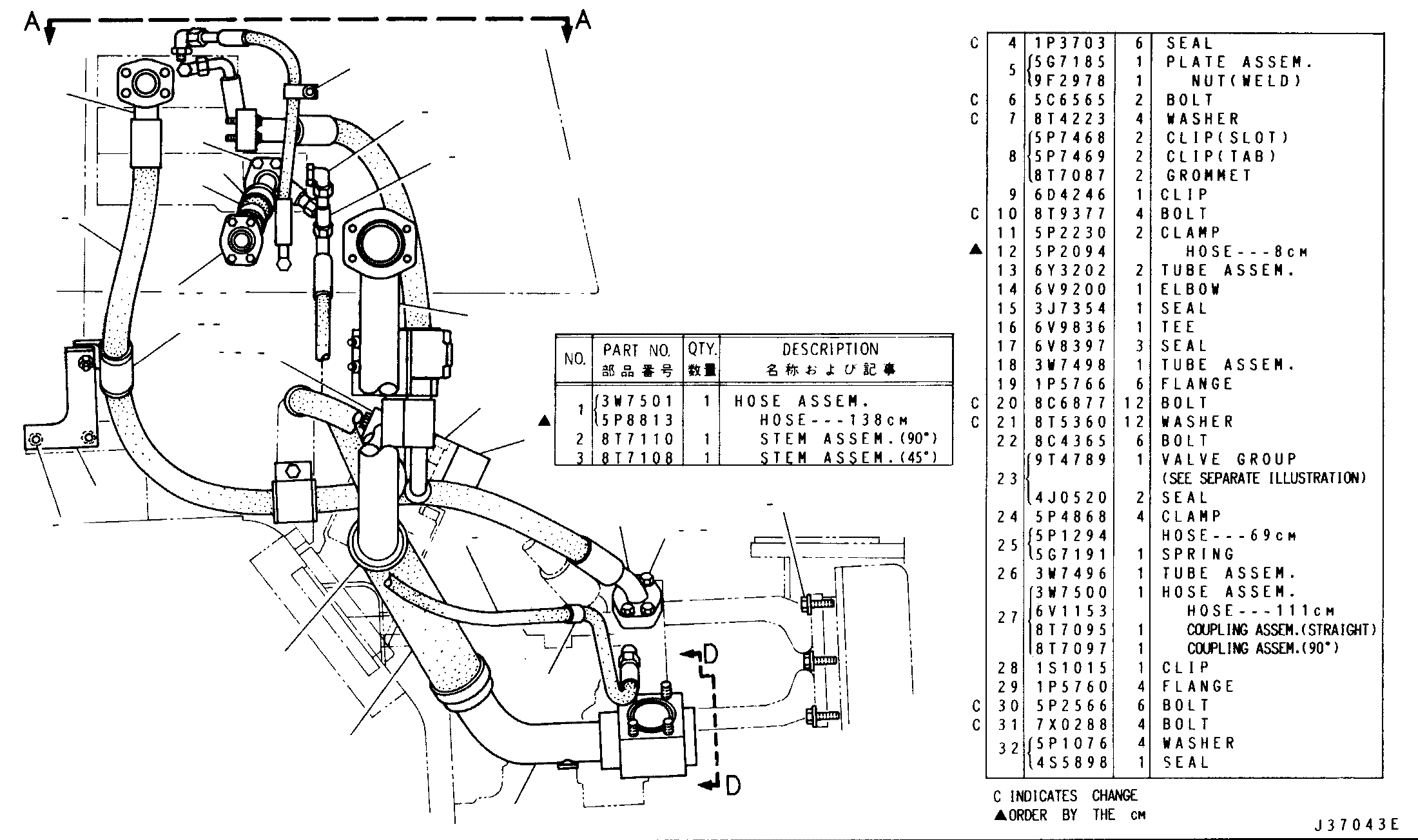

PUMP LINES (3W7380 N/S)--Part 1 of 29T4789--Page 196
Group No: PUMP
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3W7501 | 1 HOSE ASSEM. | 1 | |
| 5P8813 | HOSE 138 cm | NULL | |
| 8T7110 | 2 STEM ASSEM. (90 DEGREES) | 1 | |
| 8T7108 | 3 STEM ASSEM. (45 DEGREES) | 1 | |
| 1P3703 | 4 SEAL | 6 | |
| 5G7185 | 5 PLATE ASSEM. | 1 | |
| 9F2978 | NUT (WELD) | 1 | |
| 5C6565 | 6 BOLT | 2 | |
| 8T4223 | 7 WASHER | 4 | |
| 5P7468 | 8 CLIP (SLOT) | 2 | |
| 5P7469 | CLIP (TAB) | 2 | |
| 8T7087 | GROMMET | 2 | |
| 6D4246 | 9 CLIP | 1 | |
| 8T9377 | 10 BOLT | 4 | |
| 5P2230 | 11 CLAMP | 2 | |
| 5P2094 | 12 HOSE 8 cm | NULL | |
| 6Y3202 | 13 TUBE ASSEM. | 2 | |
| 6V9200 | 14 ELBOW | 1 | |
| 3J7354 | 15 SEAL | 1 | |
| 6V9836 | 16 TEE | 1 | |
| 6V8397 | 17 SEAL | 3 | |
| 3W7498 | 18 TUBE ASSEM. | 1 | |
| 1P5766 | 19 FLANGE | 6 | |
| 8C6877 | 20 BOLT | 12 | |
| 8T5360 | 21 WASHER | 12 | |
| 8C4365 | 22 BOLT | 6 | |
| 9T4789 | 23 VALVE GROUP | 1 | |
| 4J0520 | SEAL | 2 | |
| 5P4868 | 24 CLAMP | 4 | |
| 5P1294 | 25 HOSE 69 cm | NULL | |
| 5G7191 | SPRING | 1 | |
| 3W7496 | 26 TUBE ASSEM. | 1 | |
| 3W7500 | 27 HOSE ASSEM. | 1 | |
| 6V1153 | HOSE 111 cm | NULL | |
| 8T7095 | COUPLING ASSEM. (STRAIGHT) | 1 | |
| 8T7097 | COUPLING ASSEM. (90 DEGREES) | 1 | |
| 1S1015 | 28 CLIP | 1 | |
| 1P5760 | 29 FLANGE | 4 | |
| 5P2566 | 30 BOLT | 6 | |
| 7X0288 | 31 BOLT | 4 | |
| 5P1076 | 32 WASHER | 4 | |
| 4S5898 | SEAL | 1 |
