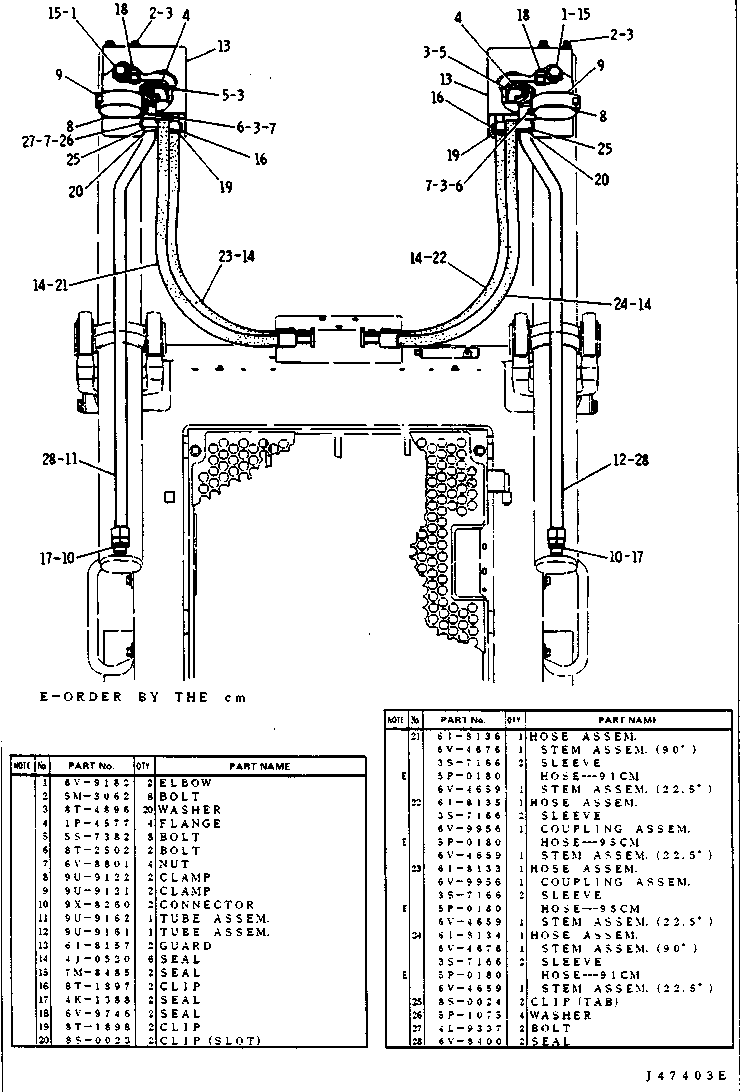

LIFT CYLINDER LINES (9U8593 N/S)Part of 6Y5719, 6y5721--Page 234, 6Y5718--Page 235

Group No: LIFT
Part NumberPart NameQty
6V91821 ELBOW2
5M30622 BOLT8
8T48963 WASHER20
1P45774 FLANGE4
5S73825 BOLT8
8T25026 BOLT2
6V88017 NUT4
9U91228 CLAMP2
9U91219 CLAMP2
9X826010 CONNECTOR2
9U916211 TUBE ASSEM.1
9U916112 TUBE ASSEM.1
6I815713 GUARD2
4J052014 SEAL6
7M848515 SEAL2
8T189716 CLIP2
4K138817 SEAL2
6V974618 SEAL2
8T189819 CLIP2
8S002320 CLIP (SLOT)2
6I813621 HOSE ASSEM.1
6V4676STEM ASSEM. (90 degrees)1
3S7166SLEEVE2
5P0180HOSE 91 CM
6V4659STEM ASSEM. (22.5 degrees)1
6I813522 HOSE ASSEM.1
3S7166SLEEVE2
6V9956COUPLING ASSEM.1
5P0180HOSE 95 CM
6V4659STEM ASSEM. (22.5 degrees)1
6I813323 HOSE ASSEM.1
6V9956COUPLING ASSEM.1
3S7166SLEEVE2
5P0180HOSE 95 CM
6V4659STEM ASSEM. (22.5 degrees)1
6I813424 HOSE ASSEM.1
6V4676STEM ASSEM. (90 degrees)1
3S7166SLEEVE2
5P0180HOSE 91 CM
6V4659STEM ASSEM. (22.5 degrees)1
8S002425 CLIP (TAB)2
5P107526 WASHER4
4L933727 BOLT2
6V840028 SEAL2
