System And Components

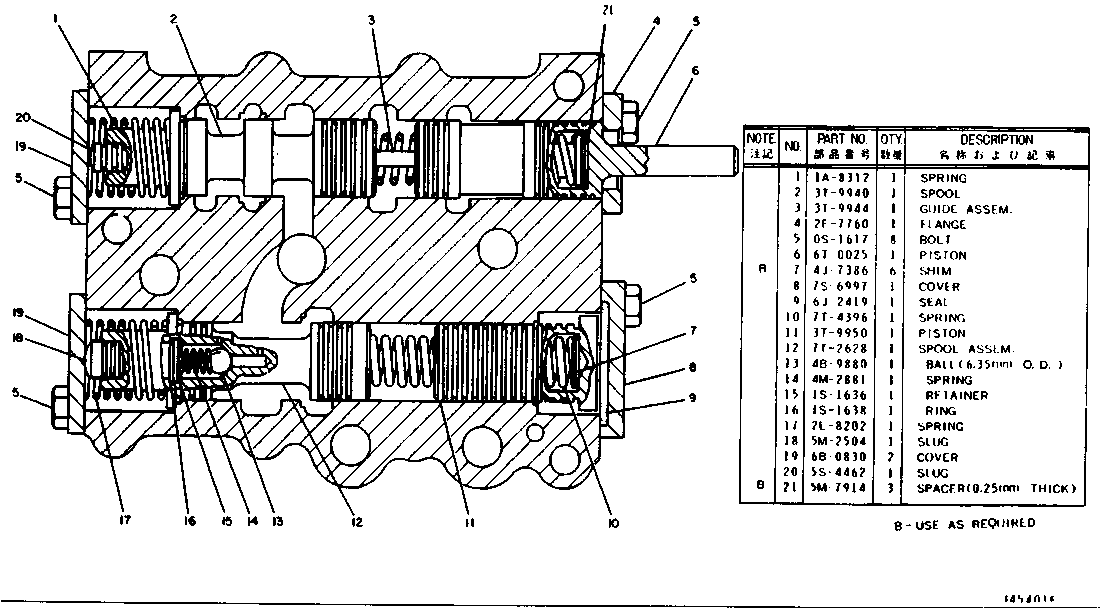

3T9926 PRESSURE CONTROL VALVE GROUPPart of 6T2844--Page 224
Group No: 3T9926
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1A8312 | 1 SPRING | 1 | |
| 3T9940 | 2 SPOOL | 1 | |
| 3T9944 | 3 GUIDE ASSEM. | 1 | |
| 2F7760 | 4 FLANGE | 1 | |
| 0S1617 | 5 BOLT | 8 | |
| 6T0025 | 6 PISTON | 1 | |
| 4J7386 | 7 SHIM | 6 | |
| 7S6997 | 8 COVER | 1 | |
| 6J2419 | 9 SEAL | 1 | |
| 7T4396 | 10 SPRING | 1 | |
| 3T9950 | 11 PISTON | 1 | |
| 7T2628 | 12 SPOOL ASSEM. | 1 | |
| 4B9880 | 13 BALL (6.35mm O. D.) | 1 | |
| 4M2881 | 14 SPRING | 1 | |
| 1S1636 | 15 RETAINER | 1 | |
| 1S1638 | 16 RING | 1 | |
| 2L8202 | 17 SPRING | 1 | |
| 5M2504 | 18 SLUG | 1 | |
| 6B0830 | 19 COVER | 2 | |
| 5S4462 | 20 SLUG | 1 | |
| 5M7914 | 21 SPACER (0.25mm THICK) | 3 |
